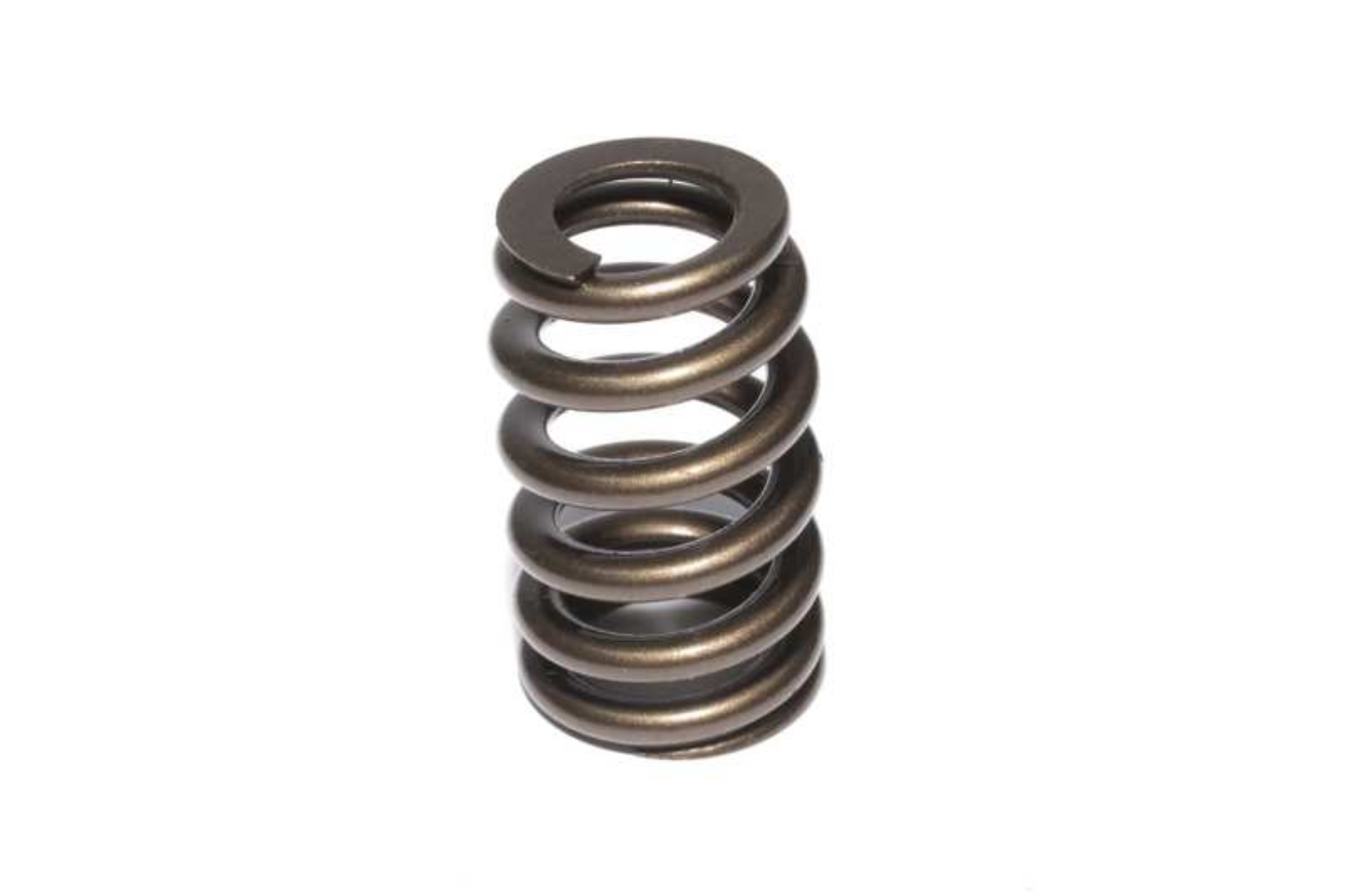

COMP Cams Valve Spring 1-240in Beehive

With a .500" maximum lift, these Beehive Valve Springs were designed for Hydraulic or solid flat tappet as well as Hydraulic Roller cams. They work in most Small Block Chevy heads with no machining. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive cam profiles.

Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit

1.065"/1.240" OD, .650"/.825" ID Beehive valve spring; 110 lbs 1.700", 292 lbs 1.175"; .500" maximum lift

COMP Cams Beehive Valve Spring, 1.065"/1.240" OD, 110 lbs 1.700", 292 lbs 1.175", Single Piece

Performance Street 1.240" OD Beehive Spring; 1.700" Installed Height; 1 Spring

COMP Cams Valve Spring 1.240in Beehive

Perf St 1.240" Beehive 1.700" Inst Ht

Valve Spring, 1.240" Beehive

Engine Valve Spring
