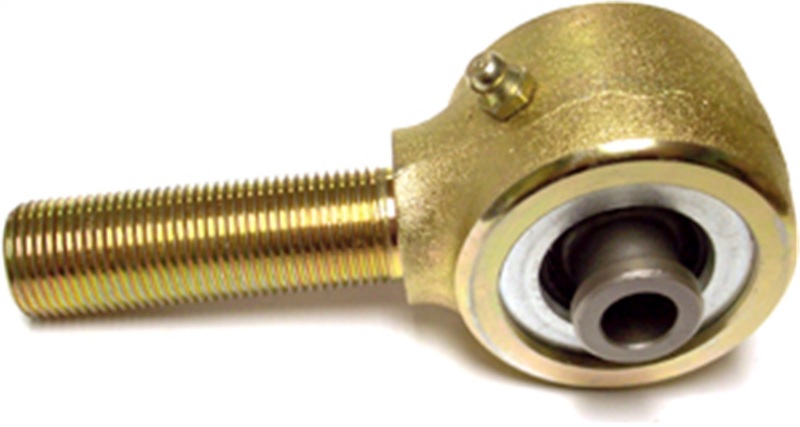

RockJock Johnny Joint Rod End 2in Forged 2in X -4375in Ball 3-4in-16 LH Thread Shank Ext- Greased

RockJocks forged Johnny Joints(R) for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint(R) rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 3/4 in.-16 left hand threads on the shank, and a 2 in. mounting width ball with a .4375 in. thru bolt hole. Finished in gold zinc plating.

Forged Johnny Joint®; 2 in.; 2 in. Mounting Width; 3/4 in.-16 LH Threaded Shank; Externally Greased; w/o Bolt; 7/16 in. Thru Bolt Hole; Each;

RockJock Johnny Joint Rod End 2in Forged 2in X .4375in Ball 3/4in-16 LH Thread Shank Ext. Greased

Forged Johnny Joint®
