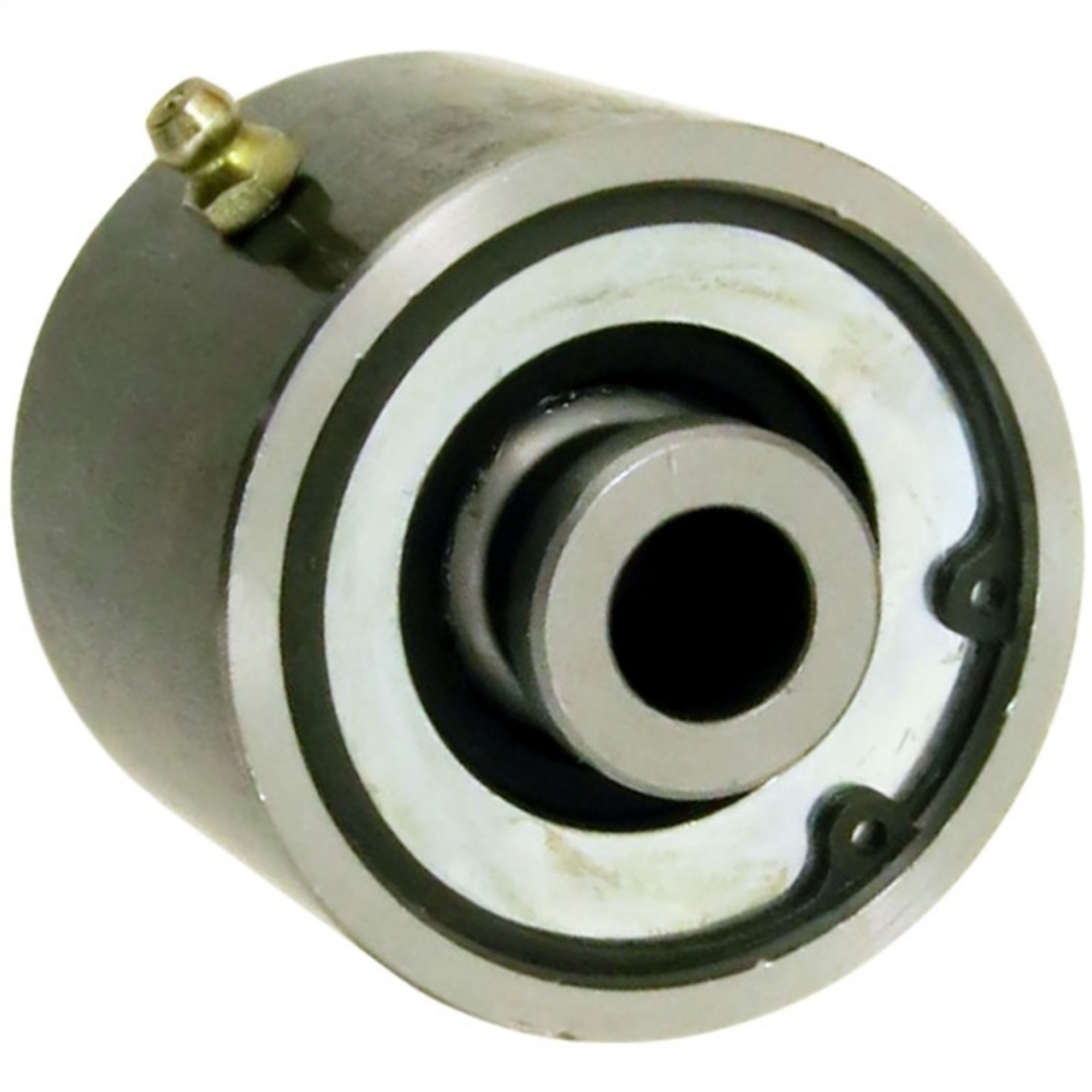

RockJock Johnny Joint Rod End 2 1-2in Weld-On 2-440in X -515in Ball Ext- Greased

RockJocks weld-on Johnny Joints(R) for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint(R) rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable .180 in. wall machined DOM tubing that is fitted with a zerk fitting for greasing. This specific joint is a 2 1/2 in. o.d. and features a 2.440 in. mounting width and a .515 in. thru bolt hole.

RockJock Johnny Joint Rod End 2 1/2in Weld-On 2.440in X .515in Ball Ext. Greased

Johnny Joint® Rod End; 2.5 in.; w/.515 in. X 2.440 in. Ball-Externally Greased;

Johnny Joint® Rod End

SuspLinkArmJt
