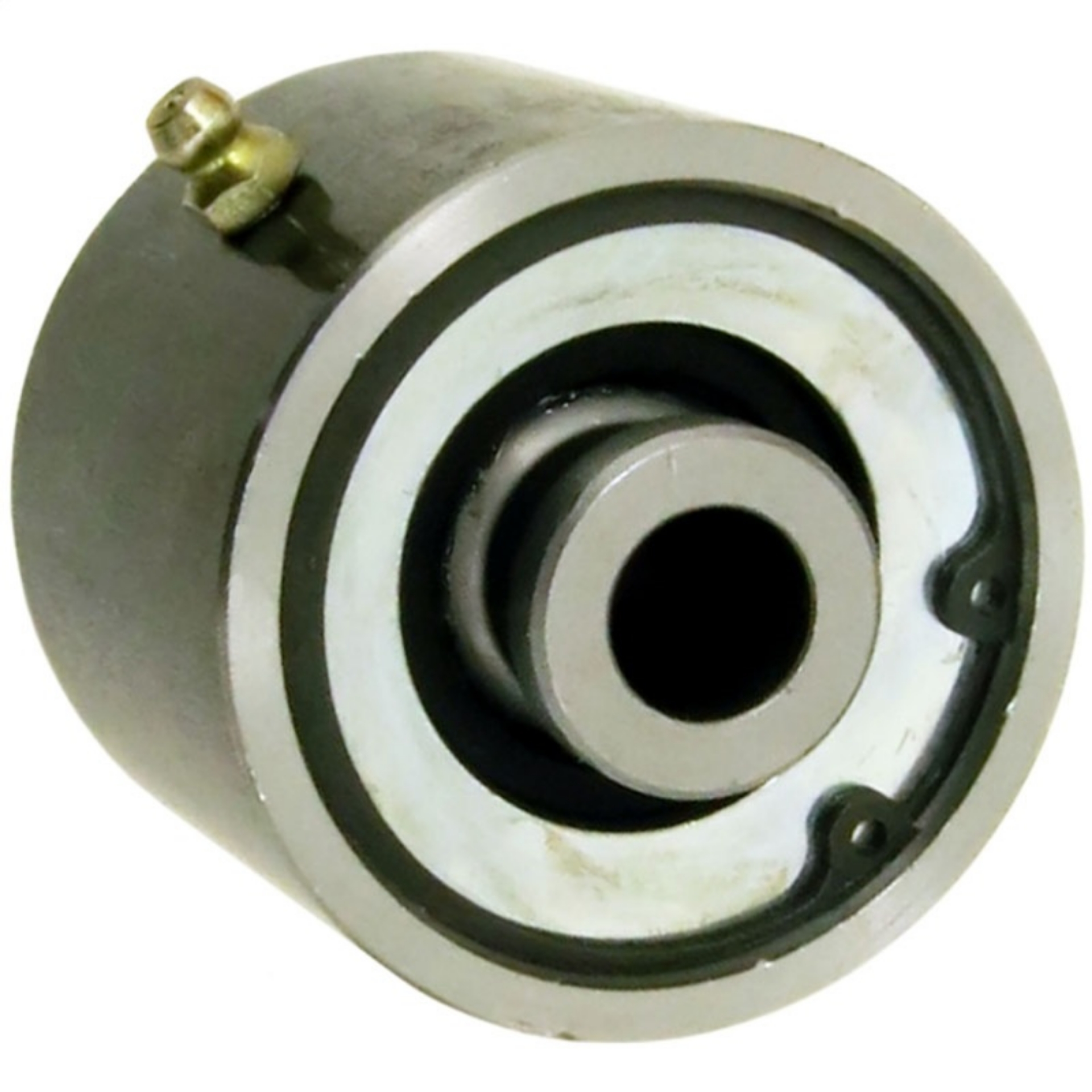

RockJock Johnny Joint Rod End 2 1-2in Narrow Weld-On 2-360in x -641in Ball Int- Greased

RockJock's narrow style weld-on Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The 2 1/2 in. narrow style outer shell is weldable CNC machined DOM tubing that is fitted with a zerk fitting for greasing. This specific joint features a 2.360 in. mounting width ball with a 0.641 in. thru hole.

Johnny Joint® Rod End; 2 1/2 in.; Narrow Weld-On; 2.360 in. x 0.641 in. Ball; Internally Greased;

RockJock Johnny Joint Rod End 2 1/2in Narrow Weld-On 2.360in x .641in Ball Int. Greased

Johnny Joint® Rod End

SuspLinkArmJt
