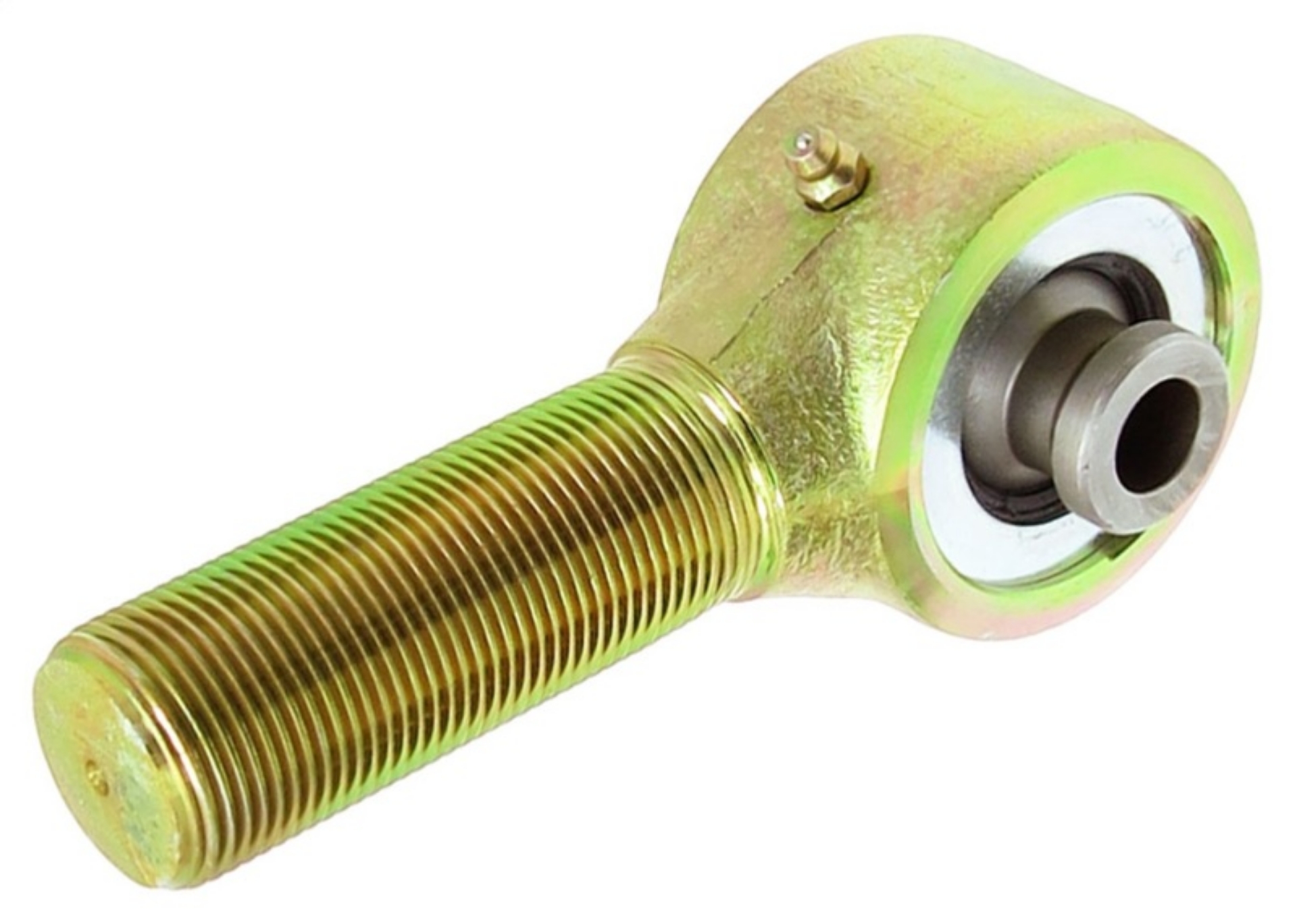

RockJock Johnny Joint Rod End 2 1-2in Forged 2-625in X -562in Ball 1 1-4in-12 RH Thread Shank

RockJocks forged narrow Johnny Joints(R) for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint(R) rod ends offer cushioning that a heim joint cannot provide via a high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 1/2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 1 1/4 in.-12 right hand threads on the shank, and a 2.625 in. mounting width ball with a .562 in. thru bolt hole. Finished in gold zinc plating.

RockJock Johnny Joint Rod End 2 1/2in Forged 2.625in X .562in Ball 1 1/4in-12 RH Thread Shank

Narrow Forged Johnny Joint®; 2.5 in. Forged Joint; w/1 1/4 in. Right Hand Threaded Stud;

Narrow Forged Johnny Joint®
