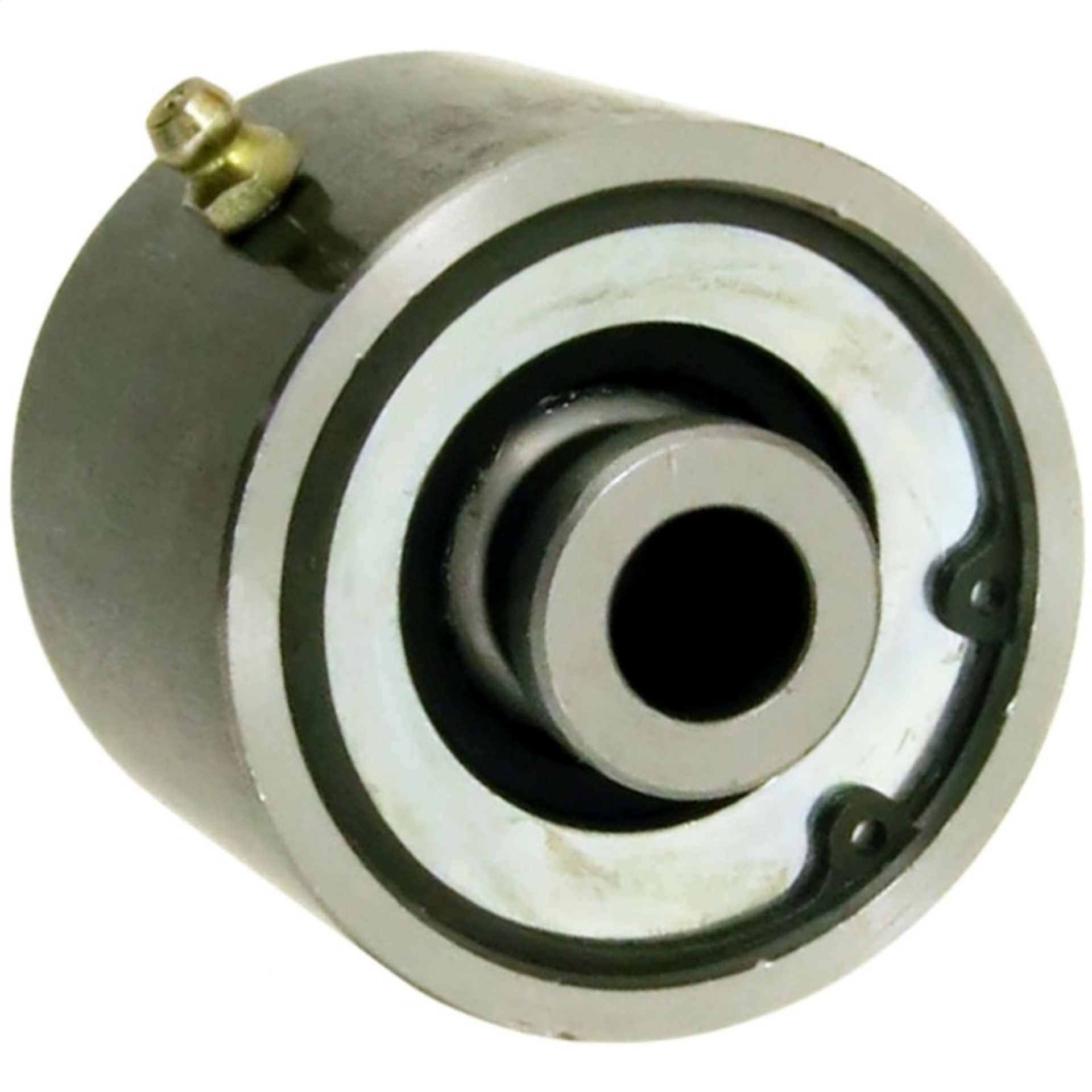

RockJock 2021+ Bronco Rear Axle Johnny Joint Rod End 2 1-2in Weld-On 70mm x 16mm Ball

RockJock's weld-on Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable 0.180 in. wall machined DOM tubing that is fitted with a zerk fitting for greasing. This specific joint's 70mm mounting width ball with a 16mm thru bolt hole is designed to fit the axle side of the 2021 and up Bronco's rear control arms.

Johnny Joint® Rod End; 2 1/2 in.; Weld-On; 70 mm x 16 mm Ball; Externally Greased; 21 Plus Bronco Rear Axle;

RockJock 2021+ Bronco Rear Axle Johnny Joint Rod End 2 1/2in Weld-On 70mm x 16mm Ball

Johnny Joint® Rod End
