Cylinder Head Specifications: Combustion chamber volume: 170cc; Intake runner volume: 245cc; Exhaust runner volume: 105cc; Intake valve diameter: 2.32"; Exhaust valve diameter: 1.94"; Valve stem diameter: 5/16"; Valve guides: Maganese Bronze; Deck thickness: 5/8"; Valve spring diameter: 1.54"; Valve spring maximum lift: .700"; Rocker stud: N/A; Guideplate: N/A; Pushrod diameter: 5/16" or 3/8"; Valve angle: Int. (stock) / Exh. Tipped 1.5° - 21.5°; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat. * Our new Victor Jr. Cylinder Heads are designed for high output 650+ hp Chrysler 426-572 HEMI® engines. They feature fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. These cylinder heads also feature a revised exhaust valve angle to accommodate larger intake valves. They also feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion.
Edelbrock E-Force Supercharger part #15296 Chevrolet Corvette 2017 LT1 delivers 624HP and 600TQ Supercharger systems without tuners are not eligible for supplemental warranty.

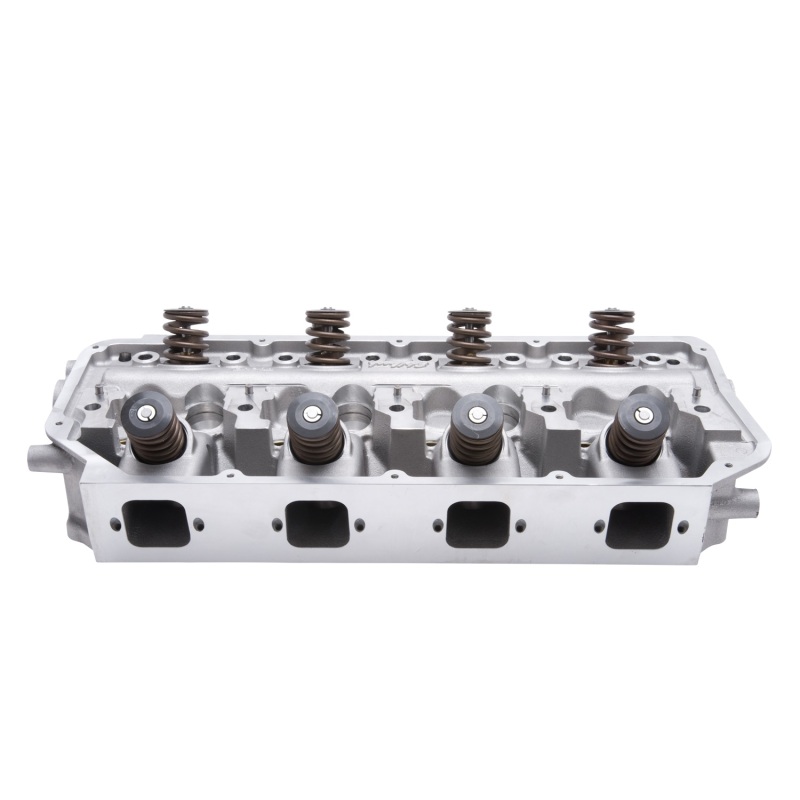

Edelbrock Cylinder Head Victor Jr CNC Chrysler 426-572 CI V8 Complete for Hydraulic Roller Camshaft
Cylinder Head; Victor Jr. CNC; Chrysler; 426-572 c.i.d V8; Complete; For Hydraulic Roller Camshaft
Edelbrock Cylinder Head; Victor Jr. CNC; Chrysler; 426-572 c.i.d V8; Complete; For Hydraul
Cylinder Head; Victor Jr. CNC; Chrysler; 426-572 c.i.d V8; Complete; For Hydraul
Victor Jr Gen II HEMI Chrysler Cylinder Head Hydraulic Roller Camshaft
Edelbrock, HEMI, V8, Cylinder Heads, 61175, Chrysler
Edelbrock; HEMI; V8; Cylinder Heads; 61175; Chrysler
Chrysler:Big-Block Gen II HEMI:426 (7.0L)
Edelbrock Cyl Heads-Race
Engine Cylinder Head
CYL HEADS-RACE
CYLINDER HEAD
{ eo : 2in.}
{"eo":"2"}
Cyl. Head
