Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.032". Left Side. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
COMETIC MLX (Multi-Layer Stopper) gaskets utilize an integrated stopper layer for combustion chamber sealing and improved clamp load around the cylinder without increasing bore distortion. MLX technology can be found in some head gaskets and are made from the same materials as our MLS Head Gaskets. No sealants or re-torque required.
Nissan VR38DETT 3.8L V6 100mm MLX Head Gasket.Comprised of mulitple embossed layers of stainless steel w/the outer layers utilizing a viton rubber coating.Compressed operating thickness is .032in. Left Side. Each
Nissan VR38DETT 3.8L V6 100mm MLX Head Gasket.Comprised of mulitple embossed layers of stainless steel w/the outer layers utilizing a viton rubber coating.Compressed operating thickness is .032". Left Side. Each

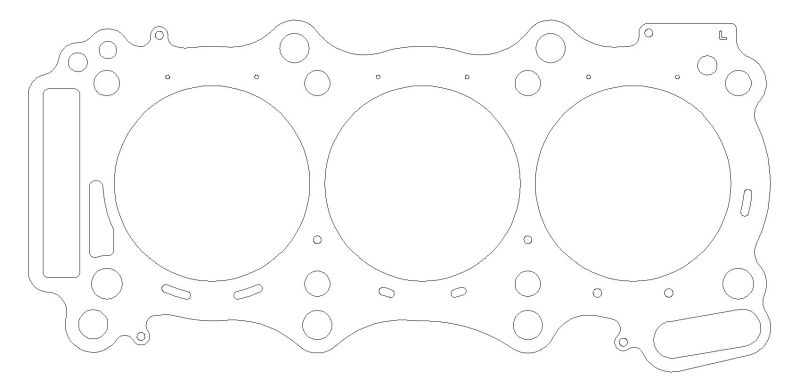

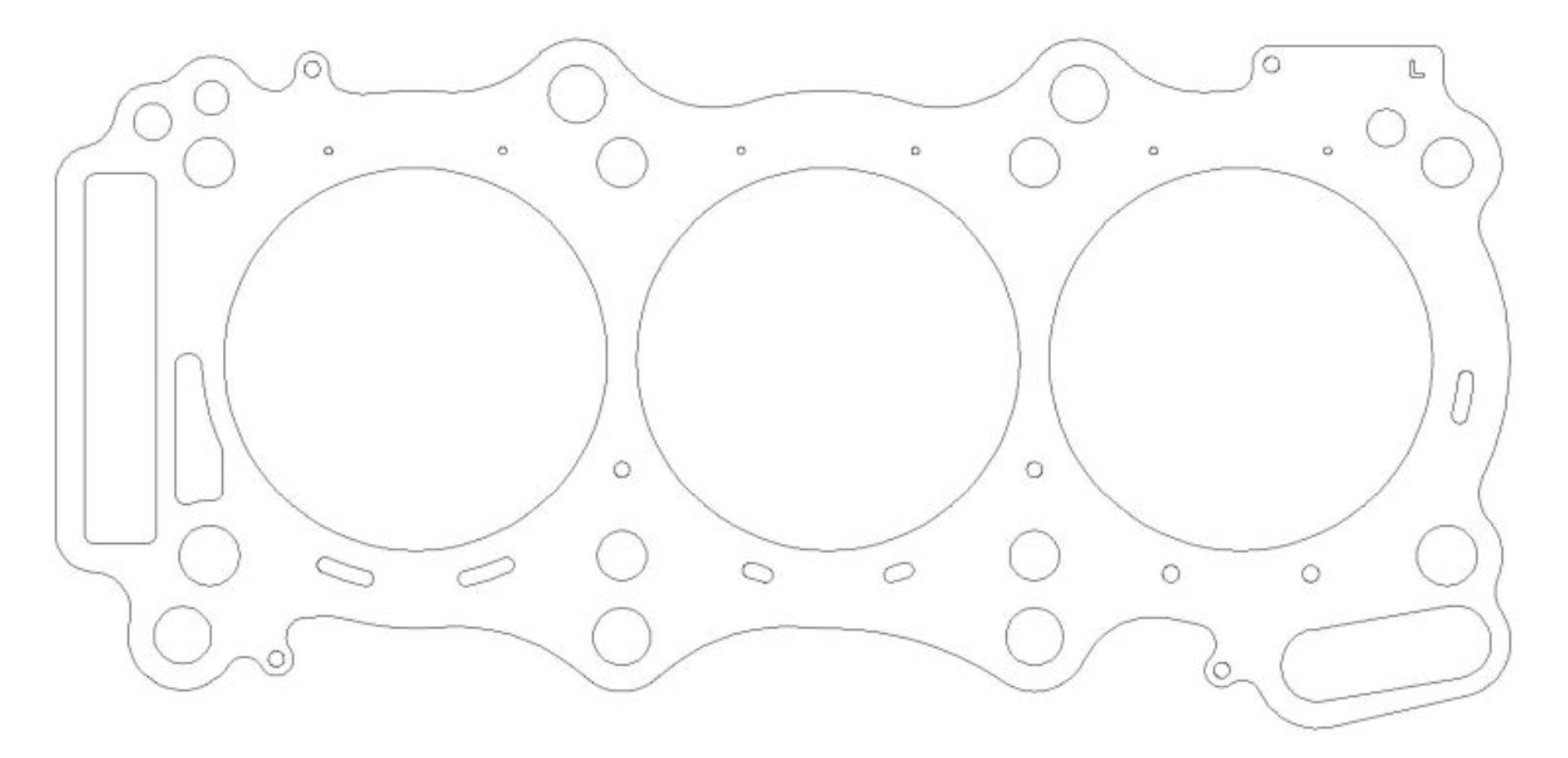

Cometic 08+ Nissan GT-R VR38DETT 24V V6 3.8L 100mm .030 inch MLS Left Head Gasket
.032in. MLX Cylinder Head Gasket; 100mm Gasket Bore. Each
.032" MLX Cylinder Head Gasket, 100mm Gasket Bore. Each
Niss VR38DETT Cylinder Head Gasket L
Engine Cylinder Head Gasket
Cylinder Head Gasket
