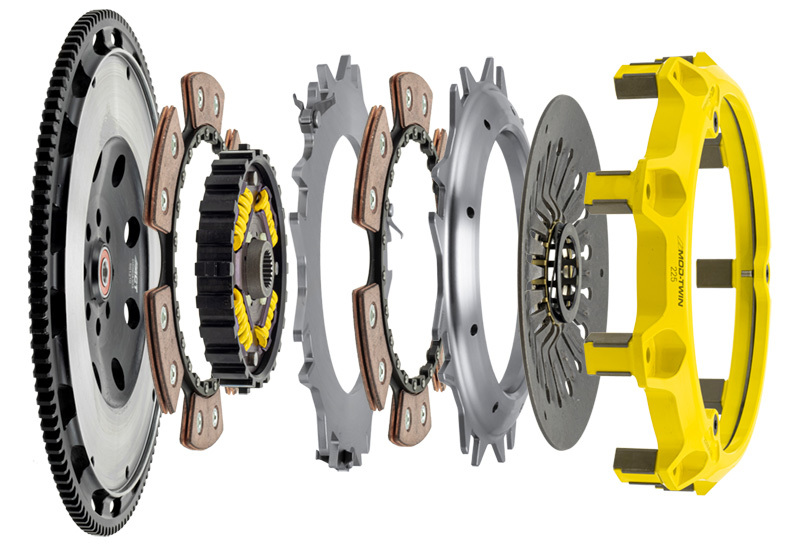

T3R-S05 Mod-Twin 225 XX Sprung Race Kit performs aggressive launches and smoother shifting in high powered AWDs by combining twice the ceramic friction surfaces with an ultra-durable Mono-Drive sprung hub assembly in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process providing a consistent pedal feel requiring moderate effort. Puck-style Friction Plates with high quality ceramic friction materials deliver high friction coefficient, superior heat capacity, and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive sprung hub assembly which extends input shaft life and reduces driveline shock from torsional vibration. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.
Predictable aggressive engagement, increased pedal effort, smooth shifting, possible start-off judder with OE to mild transmission gear noise; Forged Aluminum Cover, Mono-drive hub, exclusive diaphragm, premium friction materials, and hardened wear points ensure this long-life twin performs and survives under the most demanding conditions; Delivers maximum performance and high heat tolerance by combining robust design, strategic features, choice materials, and close tolerances; Drag, Road or Rally Racing; Applying tactical engineering to the MOD-TWIN, ACT presents unique solutions to common tradeoffs found on twin disc clutches, resulting in an ultra-durable, customer serviceable, long-lasting clutch with very high torque capacity. All are 100% clamp load tested, balanced and SFI certified
mod twin;modular clutch;twin disc;clutch kit;dual disc;flywheel;race disc;puck style;xtreme;monoloc;SFI
ACT 04-20 WRX STI Mod Twin XX Race Kit Sprung Hub Torque Cap 1340ft/lbs Not For Street Use
"Excellence in Performance", backed by the best one-year warranty in the industry!
ACT Mod-Twin 225 XX Sprung Race
Mod-Twin 225 XX Sprung Race
Mod-Twin Kit
Clutch Kit
