Fabtech's new 4? F150 Basic system utilizes their proven heavy duty construction and design features found in their 6? systems but with less lift and at a much lower price. This Basic system includes heavy duty front Coilover shocks for increased damping capacity while retaining the factory coil springs. The high arched lower control arm crossmembers are constructed of 1/4 ? thick steel for maximum strength. The Fabtech ductile iron steering knuckles retain the stock track width keeping tires under the fender for a clean appearance. Rear lift is accomplished with a block and u bolt configuration. Includes Fabtech'stealth monotube rear shocks. High quality Fabtech construction with a low price. 1/4 ? thick steel lower control arm crossmembers and skid plate. Allows use of 33? or 35? tires. ESC and Traction Control Compliant. Estimated installation time- 3-4 hours. No holes to drill. No welding required. No driveshaft modification required.
As a popular alternative to our Radius Arm and 4 Link System this Basic Drop Bracket system is designed for the budget minded enthusiast. Application utilizes the stock radius arm. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, Add-a-leafs with rear blocks, u bolt kit and more.
TIRE SIZE - 35/12.50R18 WHEEL - 18X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/60R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/70R18 WHEEL - 18X9 W/5" BS W/MINOR TRIMMING

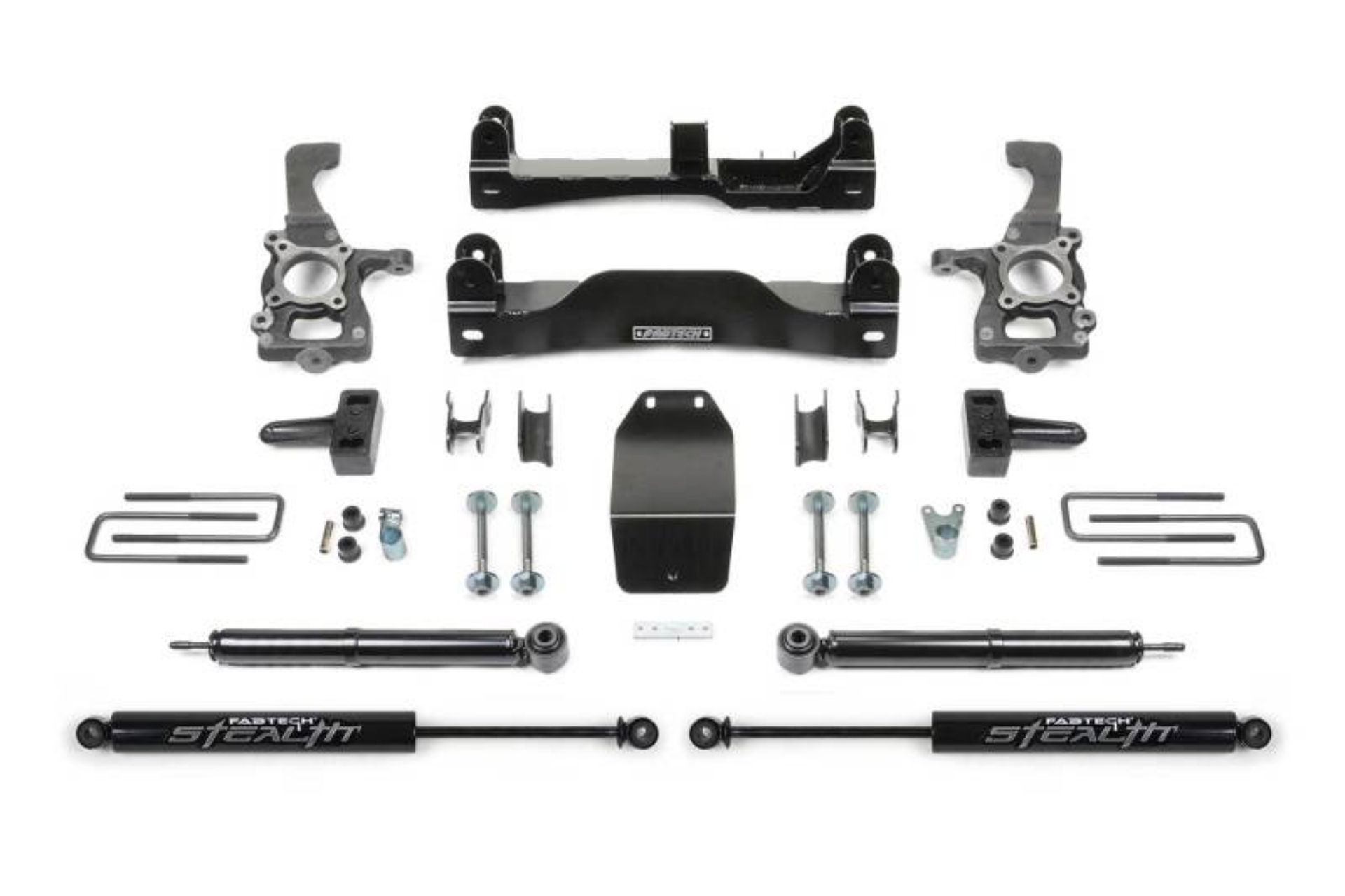

Fabtech 2014 Ford F150 4WD 4in Basic System w/Rear Stealth Shocks
4in. BASIC SYS W/RR STEALTH 2014 FORD F150 4WD
4" BASIC SYS W/ RR STEALTH 2014 FORD F150 4WD
4" BASIC SYS W/ RR STEALTH
Basic Lift System w/Shocks
4" BASIC SYS W/ RR S
Suspension Lift Kit
4in. BASIC SYS W/RR
