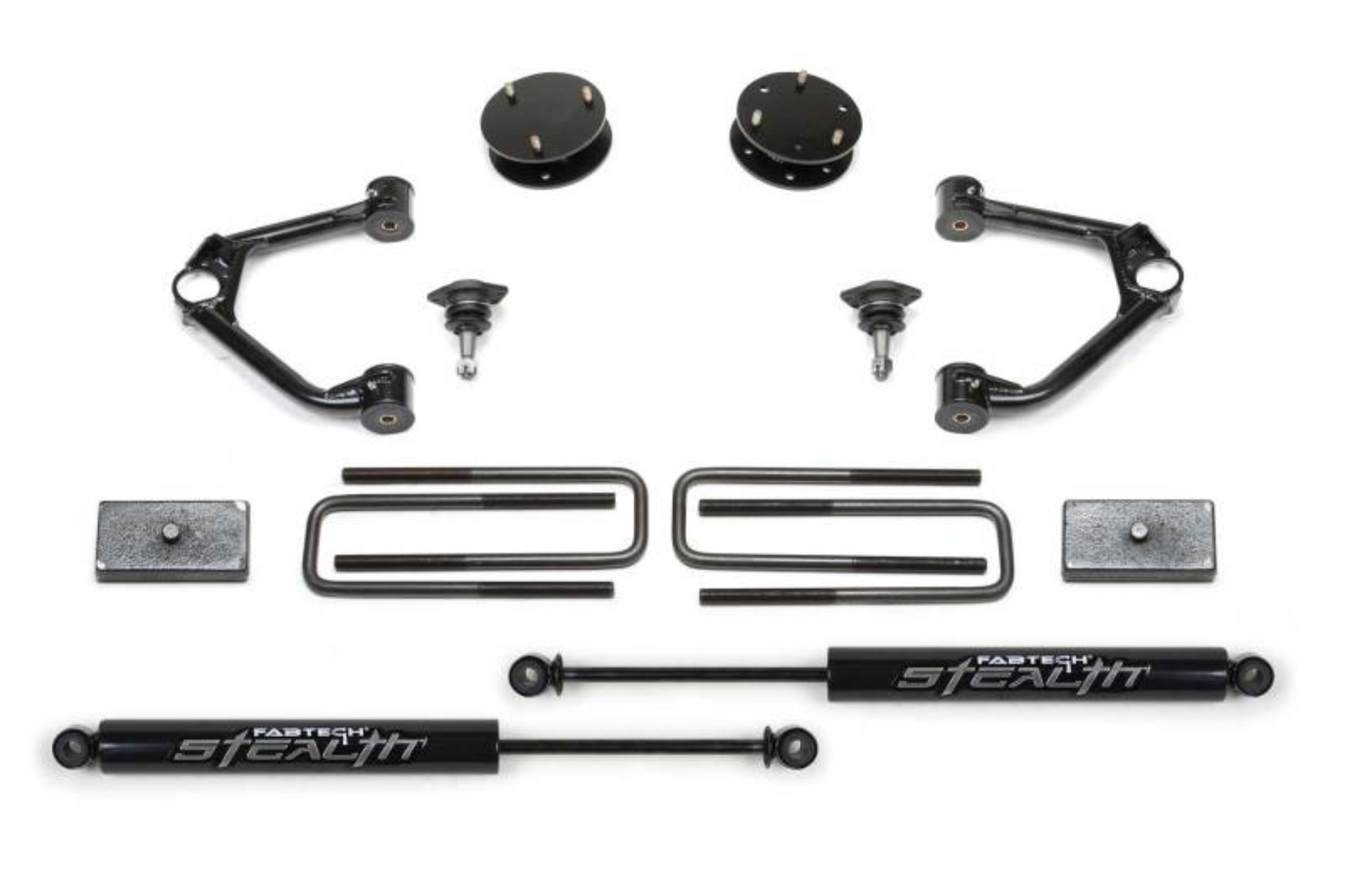

Fabtech 19-21 GM C-K1500 P-U 3in Budget Sys w-Stealth

This quality Upper Control Arm system provides a 3.5? increased ride height over stock without creating suspension bind at full droop. Lift is accomplished with spacers that utilizes the factory coilover shocks for a stock ride. The Fabtech Upper Control Arms address the geometry of the front suspension with the new ride height for proper align-ability. Heavy duty ball joints allow for extended travel to eliminate binding. Due to the GM suspension geometry there are no differential drop brackets required for the CV axles to operate properly. Rear lift comes from 1? blocks and u-bolts. Value priced system with Fabtech quality. Increased ground clearance. Extended range upper ball joints provide a smooth quiet ride. Increased fender clearance compared to a Leveling Kit for 33? tall tires. Suspension can be restored to stock. Easy installation. Includes rear Stealth Shocks.

TIRE SIZE - 33/12.50R18 WHEEL - 18X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/55R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/65R18 WHEEL - 18X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 33/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; 14. CAN NOT USE OEM WHEEL AND TIRE.; 17. DOES NOT FIT STANDARD CAB.; 194. CHECK WITH AFTERMARKET WHEEL MANUFACTURER FOR WHEEL COMPATIBILITY ON 2019 VEHICLE. ; 197. WILL NOT FIT MODELS EQUIPPED WITH ADAPTIVE RIDE CONTROL; 202. DOES NOT FIT 2019 CHEVY SILVERADO LD OR 2019 GMC SIERRA LIMITED 1500 MODELS. USE 2018 MODEL APPLICATION FOR THESE VEHICLES.

This quality Upper Control Arm system provides a 3.5" increased ride height over stock without creating suspension bind at full droop. Lift is accomplished with spacers that utilizes the factory coilover shocks for a stock ride. The Fabtech Upper Control Arms address the geometry of the front suspension with the new ride height for proper align-ability. Heavy duty ball joints allow for extended travel to eliminate binding. Due to the GM suspension geometry there are no differential drop brackets required for the CV axles to operate properly. Rear lift comes from 1 blocks and u-bolts.

Fabtech 2019 GM K1500 3.5in Budget UCA System w/Rear Stealth Shocks

3.5in. BUDGET SYS W/STEALTH 2019 GM K1500 P/U

3" BUDGET SYS W/ STEALTH 2019 GM C/K1500 P/U

Budget Lift System w/Shock

3" BUDGET SYS W/ STE

3.5in. BUDGET SYS W/

Suspension Lift Kit
