Fabtech?s 6? Radius Arm system for the Ford F450 and F550 Super Duty is built to handle the on and offroad demands of the truck enthusiast. This vehicle?s suspension is more robust than the Ford F250 and F350 and therefore demands specialty parts only available from Fabtech. The Radius Arms use tubular construction with dimple die side plate for superior strength. 1/4? thick steel bracketry repositions the factory track bar to center the axle under the vehicle with the increased lift height. The Dropped Pitman Arm uses forged steel construction with high strength material that exceeds the factory specifications. 1/4" thick steel drop brackets reposition the front sway bar for the increased ride height. This allows the sway bar link ends to fully cycle without binding throughout the extended travel range. Brake Line Brackets reposition the factory brake lines down on the frame for the new travel range without having to open the brake system. Keeps factory fluid system intact. Steering Stabilizer Brackets retain the factory F450 or F550 long travel steering stabilizer with a 1/4" thick steel bracket and support brace to help reduce tire shimmy. Steel rear lift blocks replaces the factory blocks for additional lift without changing the ride quality or load carrying capacity. American made U-Bolts designed to attach the entire rear differential to the vehicle. Simplistic super stout 1/4" thick steel brackets utilize the factory coil bucket to bolt in the big Dirt Logic 4.0 Coilover. A massive 4? diameter stainless steel body with 1.25 NitroSteel piston rod for maximum corrosion resistance and durability for the most aggressive driving conditions. The remote aluminum reservoir dissipates heat for continuous damping when driving over extreme terrain at high speed. The rear Dirt Logic 2.25 Shocks are constructed of a stainless steel body with NitroSteel? piston rod for maximum corrosion resistance and durability.
Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift options includes 6 replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, and a rear Block & U-bolt kit.
TIRE SIZE - 285/70R19.5 WHEEL - 19.5XOEM W/OEM" BS W/OEM DUALLY WHEELS; 101. SOME MODELS MAY NOT SIT LEVEL AFTER INSTALL.

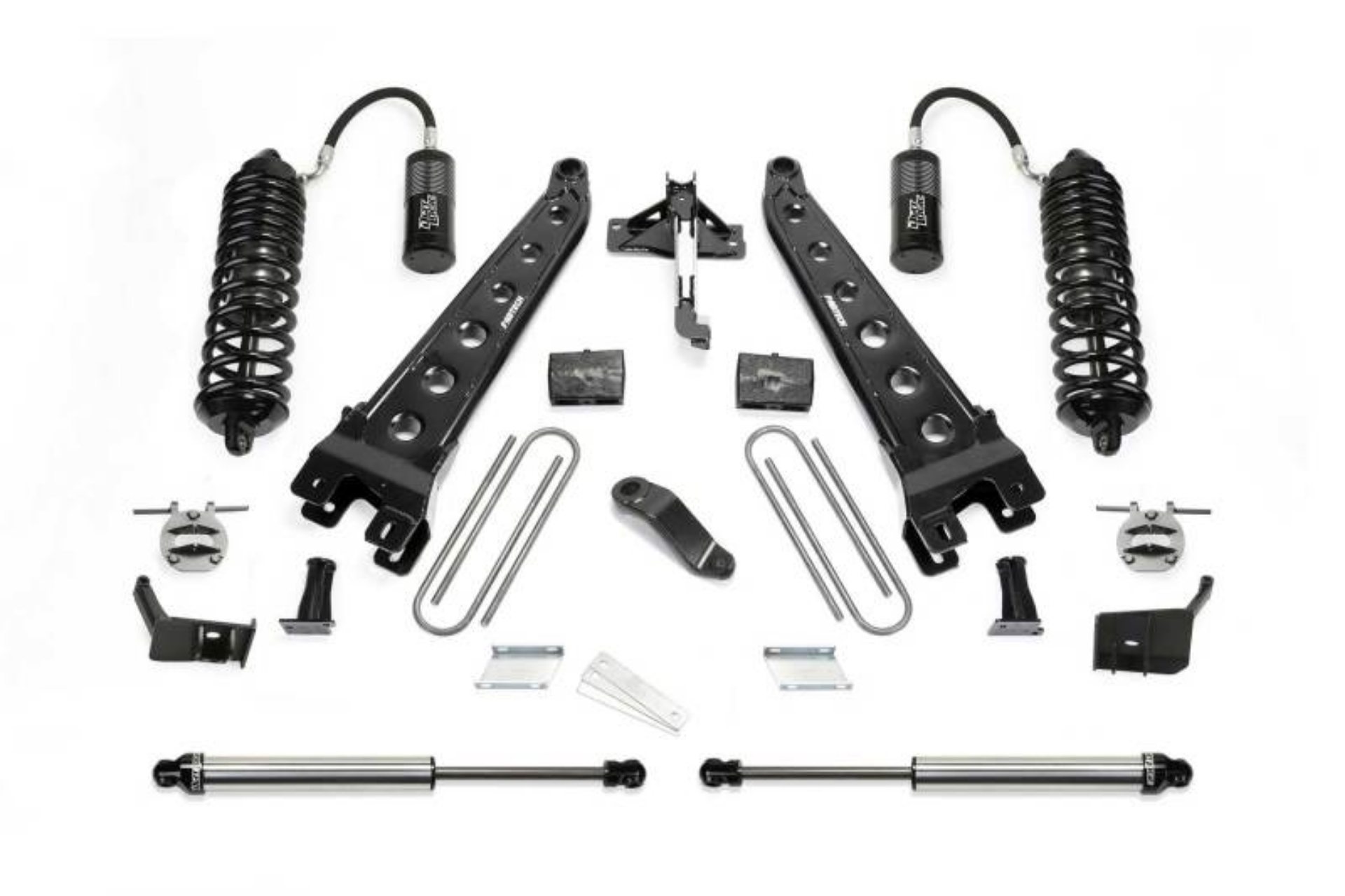

Fabtech 2017 Ford F450/F550 4WD Diesel 6in Radius Arm System w/DL 4.0 Coilover & Rear DL 2.25 Shocks
6" RAD ARM SYS W/ 4.0 & 2.25DL 2017 FORD F450/F550 4WD DIESEL
6in. RAD ARM SYS W/4.0/2.25DL 2017 FORD F450/F550 4WD DIESEL
Radius Arm Lift System
6" RAD ARM SYS W/ 4.
Suspension Lift Kit
LftKt-Suspw/Shock
This does not automatically mean the part is universal. Send us your year, make, model, trim, and the part number before ordering.
