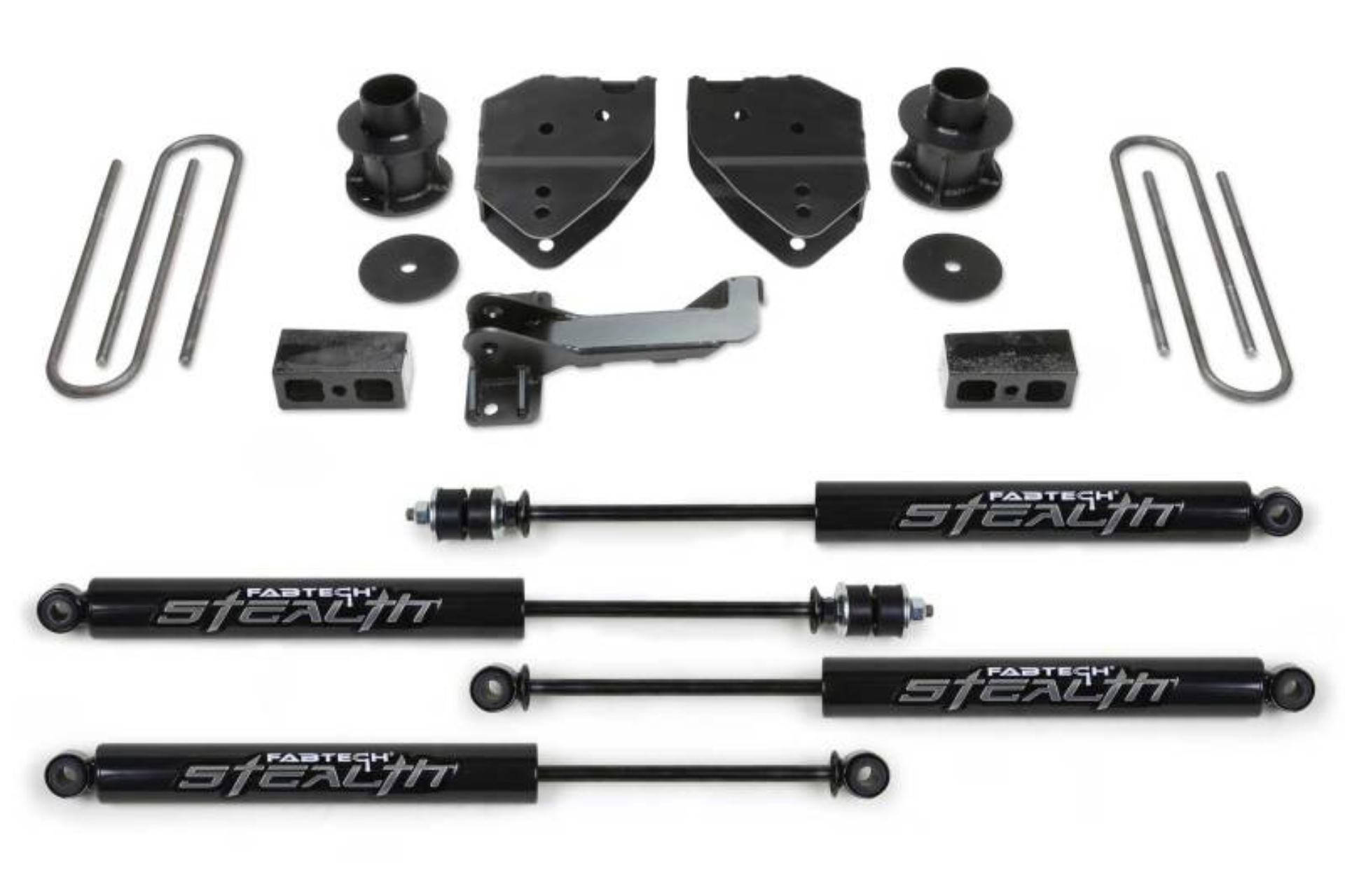

To enhance our extensive line of Super Duty suspension systems we have developed an entry level 4'' Budget System. The 4'' Budget System utilizes the factory front coil springs with a steel upper spacer providing 4'' of lift. Radius Arm drop brackets retain the factory arms with correct caster setting for the increase ride height. System includes a Trac Bar relocation bracket that has been designed to center the axle under the vehicle and still works properly with the factory Pitman Arm. This eliminates the need to replace the Pitman Arm resulting in a lower cost and faster installation time. Rear lift is accomplished with lift blocks and extended length u-bolts. This kit includes front and rear Stealth shocks. System allows installation of 35'' tall tires with required inner fenderwell trimming for adequate tire clearance for street driving and light offroad use.
Fabtech offers a 3 Budget System for Jeep JKs that includes four American made Coil Springs that have been designed to clear 35 tall tires. The Coil Springs are specific to 2 or 4 door models and undergo a preset manufacturing process to insure a consistent ride height. System also includes front and rear Shocks, front Sway Bar Links, front Bump Stops, rear Bump Stop extensions, Rear Trac Bar bracket rear Brake Hose extension, Emergency Brake cable brackets all in one box. This System will increase offroad capabilities and provide a good highway ride.
TIRE SIZE - 35/12.50R17 WHEEL - 17X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R18 WHEEL - 18X9.5 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; 3. NON DUALLY MODELS ONLY.; 165. SOME 2017 MODELS MAY REQUIRE A DUAL STEERING STABILIZER FOR OVERSIZED TIRES. ORDER DIRT LOGIC-FTS220512, DIRT LOGIC W/RESI-FTS221162 OR STEALTH-FTS8046.
Fabtech 17-20 Ford F250/350 4WD 4in Budget System w/Stealth Shocks
4in. BUDGET SYS W/STEALTH 17-18 FORD F250/350 4WD
4in. BUDGET SYS W/STEALTH 2017 FORD F250/350 4WD
4" BUDGET SYS W/STEALTH 17-19 FORD F250/350 4WD
4" BUDGET SYS W/STEA
4in. BUDGET SYS W/ST
Suspension Lift Kit
