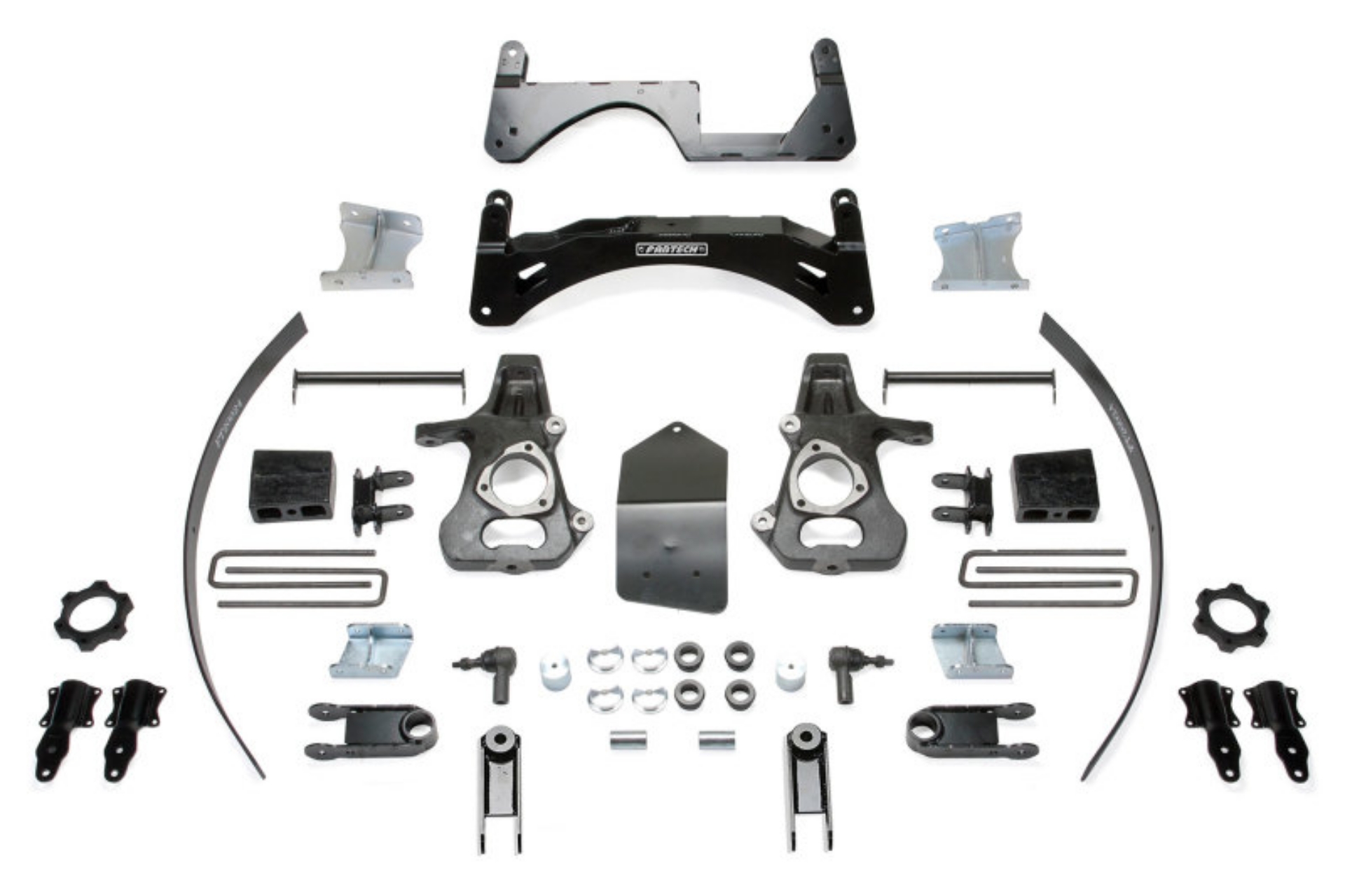

Our 6" Basic System has been designed utilizing our industry leading crossmember and spindle technology. Lift is accomplished by utilizing the factory front Coilover shocks with steel spacers that helps retain the stock ride of the front suspension. The 1/4" thick steel lower control arm has been formed to fit to the bottom of the 2014 frame without having to cut or modify it for a fast installation. Extensive design work was given to the extended length steering knuckles specifically for the Aluminum component version keeping track width near stock and working properly with the Stablitrac? safety functions. The front differential is relocated with heavy duty brackets while a tightly formed 1/4 " thick steel skid plate provides protection for offroad use. The rear suspension is upgraded with add a leafs and 5" tall blocks and u bolts.
As a popular alternative to our Radius Arm and 4 Link System this Basic Drop Bracket system is designed for the budget minded enthusiast. Application utilizes the stock radius arm. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, Add-a-leafs with rear blocks, u bolt kit and more.
TIRE SIZE - 35/12.50R17 WHEEL - 17X8 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 325/65R18 WHEEL - 18X9 W/5" BS W/MINOR TRIMMING; 8. WILL NOT FIT ALL WHEEL DRIVE MODELS.; 14. CAN NOT USE OEM WHEEL AND TIRE.; 17. DOES NOT FIT STANDARD CAB.
6" BASIC SYS W/ MAGNERIDE 14-18 GM K1500 P/U DENALI W/ OE ALM OR STMP STL UCA
6in. BASIC SYS W/MAGNERIDE 14-18 GM K1500 P/U DENALI W/OE ALM OR STMP STL UCA
Fabtech 14-18 GM K1500 Denali w/OE Alum. UCA 6in Basic System w/Magneride
6in. BASIC SYS W/MAGNERIDE 2014-16 GM K1500 P/U DENALI
6" BASIC SYS W/ MAGN
6in. BASIC SYS W/MAG
Suspension Lift Kit
