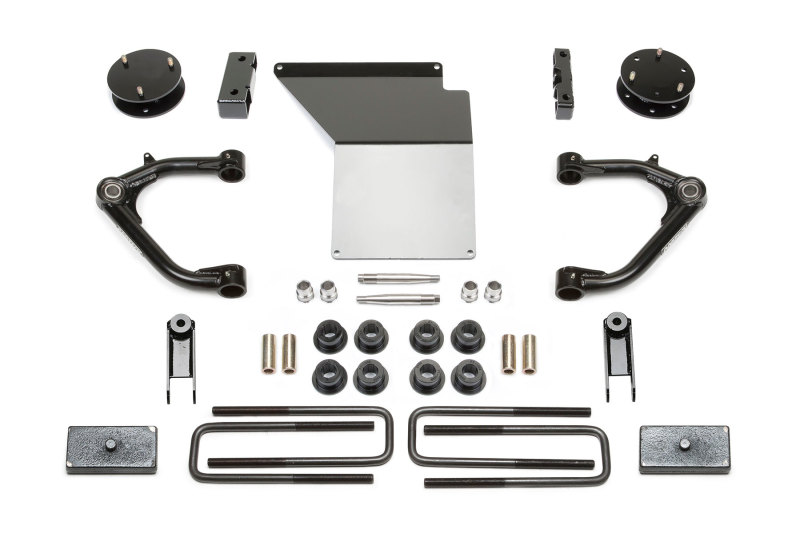

This system offers a mild lift height with easy installation for clearance of 33" tall tires on K1500's w/ factory Magnetic Ride Control suspension. Lift is accomplished by utilizing the factory front Coilover shocks with steel spacer system that helps retain the stock ride of the front suspension. The stock upper control arms are replaced with high quality tubular Uniball arms that allow unrestricted movement throughout the travel range. The arms are constructed of top quality material including .120" wall 4130 Chromoly tubing with a 1.50" OD and 1" FK Stainless PTFE Uniballs. These arms are the best on the market for aggressive offroad driving in harsh conditions. The front differential is relocated to keep CV angles proper with the new lift height while a 1/4" thick steel skid plate provides protection against offroad obstacles. Rear lift is accomplished with 1 1/2" rear lift block and u-bolts to help level the stance of the vehicles. - Increased ground clearance. -Top quality Uniball Upper Control Arms for aggressive offroad use. -1" ID American made FK Uniballs with PTFE for ultimate strength. -Increased fender clearance compared to a Leveling Kit for 33" tall tires. -Suspension can be restored to stock.
Fabtechs development capabilities are second to none with over 20 years of experience in aftermarket suspension design. State of the art software, fabrication equipment along with our seasoned engineers and fabricators allow the company to develop products that are constantly on the cutting edge. Fabtech has received numerous awards for our designs that continue to lead the market. Proper design in suspension development is key in providing a quality, trouble free product to the end consumer. Fabtech leads the industry with extensive research, design technology and rigorous testing that results in the highest performing, finest quality suspension system for the discerning offroad enthusiast.
TIRE SIZE - 33/12.50R17 WHEEL - 17X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 275/65R18 WHEEL - 18X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 295/55R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; 8. WILL NOT FIT ALL WHEEL DRIVE MODELS.; 14. CAN NOT USE OEM WHEEL AND TIRE.; 17. DOES NOT FIT STANDARD CAB.
4in. UNIBALL UCA SYS W/MAGNERIDE 14-18 GM K1500 P/U DENALI W/OE ALM OR STMP STL UCA
3.5" UNIBALL UCA SYS W/MAGNERI 14-18 GM K1500 P/U DENALI W/ OE ALM OR STMP STL UCA
3.5" UNIBALL UCA SYS W/MAGNERI 14-18 GM K1500 P/U DENALI W/ OE ALM OR STMP STL U
Fabtech 14-18 GM K1500 Denali w/OE Alum. UCA 4in Uniball UCA System w/Magneride
4in. Uniball UC SYS w/Magneride 2014 GM K1500 P/U Denali
3.5" UNIBALL UCA SYS
3.5in. UNIBALL UCA S
Suspension Lift Kit
