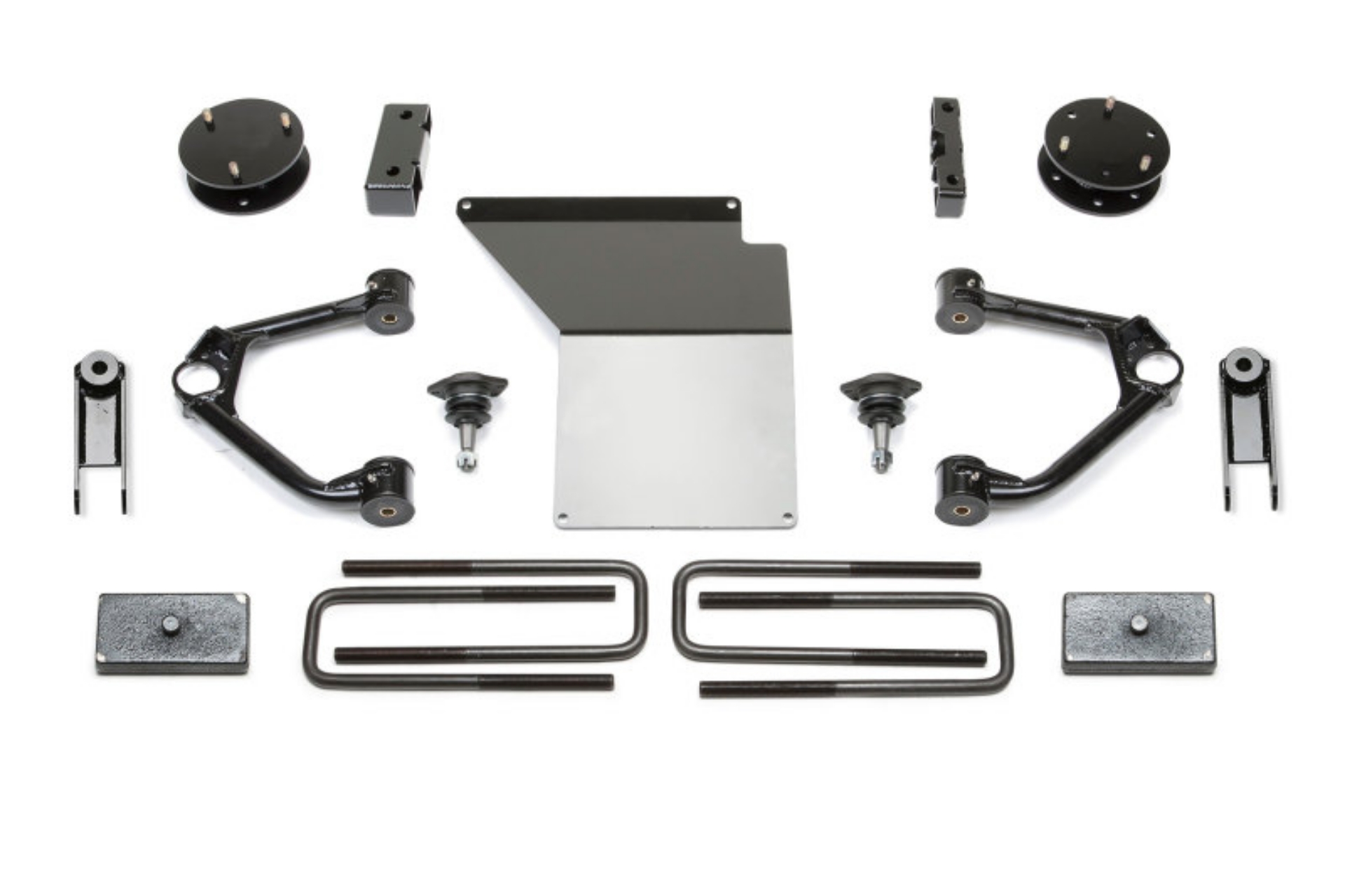

Fabtech 14-18 GM K1500 Denali w-OE Alum- UCA 4in Budget UCA System w-Magneride

This system offers a mild lift height with easy installation for clearance of 33" tall tires on K1500's w/ factory Magnetic Ride Control suspension. Lift is accomplished by utilizing the factory front Coilover shocks with steel spacer system that helps retain the stock ride of the front suspension. The stock upper control arms are replaced with thick wall DOM tubular arms that feature heavy duty extended range ball joints. These ball joints provide additional strength to the vehicles suspension compared to the factory. The front differential is relocated to keep CV angles proper with the new lift height while a 1/4" thick steel skid plate provides protection against offroad obstacles. Rear lift is accomplished with 1 1/2" rear lift block and u-bolts to help level the stance of the vehicles. - Value priced system with Fabtech quality Increased ground clearance Extended range upper ball joints provide a smooth quiet ride Increased fender clearance compared to a Leveling Kit for 33" tall tires Suspension can be restored to stock Easy installation.

The 4 Budget System utilizes the factory front coil springs with a steel upper spacer providing 4 of lift. Radius Arm drop brackets retain the factory arms with correct caster setting for the increase ride height. System includes a Trac Bar relocation bracket that has been designed to center the axle under the vehicle and still works properly with the factory Pitman Arm. This eliminates the need to replace the Pitman Arm resulting in a lower cost and faster installation time. Rear lift is accomplished with lift blocks and extended length u-bolts.

TIRE SIZE - 33/12.50R17 WHEEL - 17X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 275/65R18 WHEEL - 18X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 295/55R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; 8. WILL NOT FIT ALL WHEEL DRIVE MODELS.; 14. CAN NOT USE OEM WHEEL AND TIRE.; 17. DOES NOT FIT STANDARD CAB.

3.5" BUDGET SYS W/ MAGNERIDE 14-18 GM K1500 P/U DENALI W/ OE ALM OR STMP STL UCA

4in. BUDGET SYS W/MAGNERIDE 14-18 GM K1500 P/U DENALI W/OE ALM OR STMP STL UCA

Fabtech 14-18 GM K1500 Denali w/OE Alum. UCA 4in Budget UCA System w/Magneride

4in. Budget SYS w/Magnerid 2014 GM K1500 P/U Denali

3.5" BUDGET SYS W/ M

3.5in. BUDGET SYS W/

Suspension Lift Kit
