This new Gen II system retains the factory track width keeping the tires under the fenders for a clean appearance. With the factory track width retained the front Sway Bar utilizes the stock end links and mounting holes keeping the leverage on the bar proper. There are no CV spacers, impact struts or add a leafs required for installation. The front differential is relocated in a manner so that when driving at higher 4 wheel drive speeds vibration is reduced. The GEN II Basic System utilizes a simplistic upper Coilover spacer that provides lift from the top of the shock rather than bottom up with reduced install time. Rear shocks are Performance Twin Tubes. All bracketry and the skid plate are constructed of 1/4" thick steel for maximum strength and proven reliability. This 6" system will level the stance of the vehicle compared to the factory nose down rake. For those customers that want a factory nose down appearance order optional add a leaf, Part #FTS212. The system passes FMVSS 126 standards for stability control functionality as tested by an independent lab.
Fabtechs development capabilities are second to none with over 20 years of experience in aftermarket suspension design. State of the art software, fabrication equipment along with our seasoned engineers and fabricators allow the company to develop products that are constantly on the cutting edge. Fabtech has received numerous awards for our designs that continue to lead the market. Proper design in suspension development is key in providing a quality, trouble free product to the end consumer. Fabtech leads the industry with extensive research, design technology and rigorous testing that results in the highest performing, finest quality suspension system for the discerning offroad enthusiast.
TIRE SIZE - 35/12.50R17 WHEEL - 17X8 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 325/65R18 WHEEL - 18X9 W/5" BS W/MINOR TRIMMING; 1. WILL NOT FIT MODELS WITH FACTORY AUTORIDE SHOCKS.; 8. WILL NOT FIT ALL WHEEL DRIVE MODELS.; 14. CAN NOT USE OEM WHEEL AND TIRE.; 17. DOES NOT FIT STANDARD CAB.; 128. FITS MODELS WITH FACTORY FORGED BLACK STEEL UPPER CONTROL ARM.

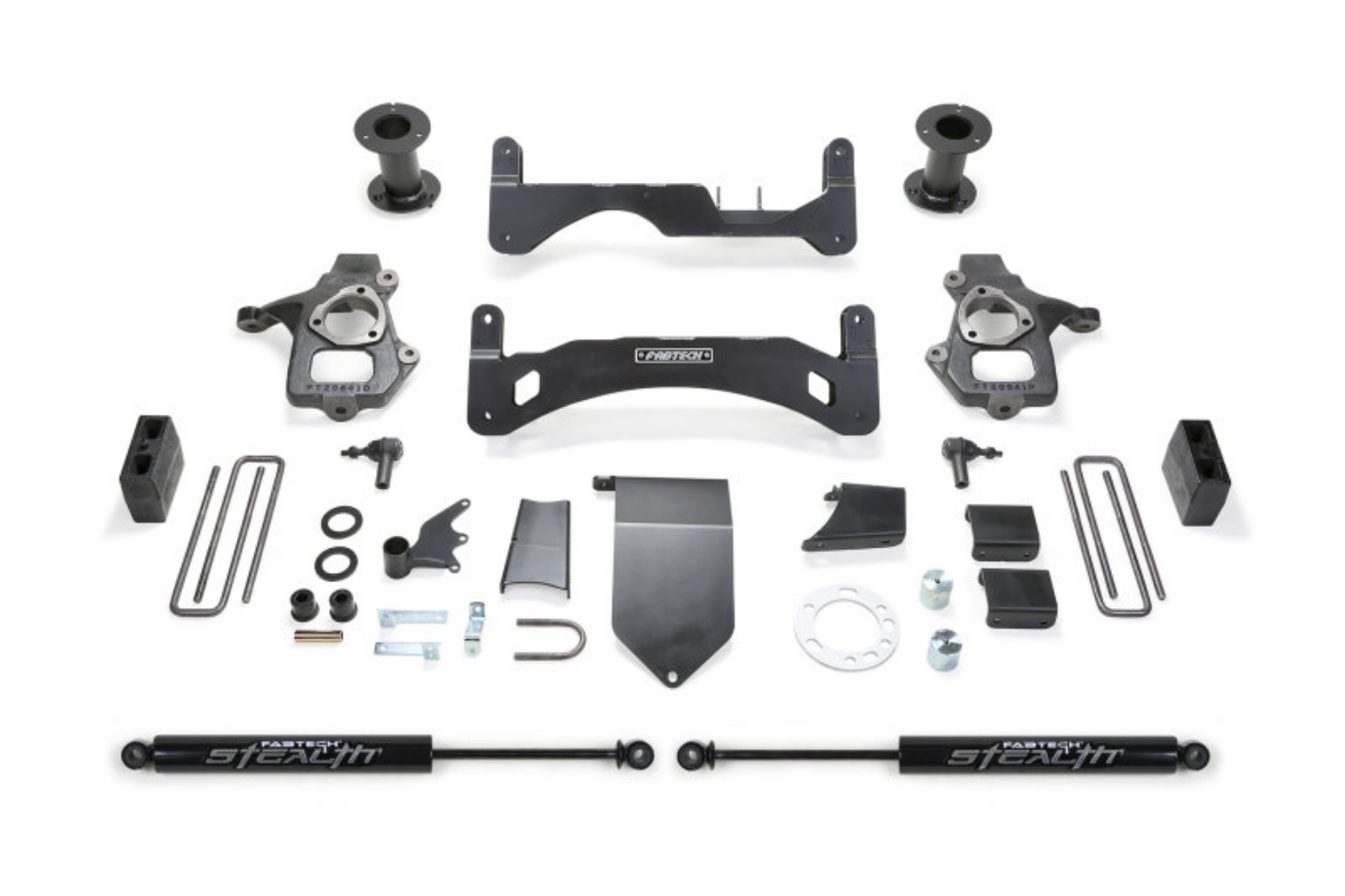

Fabtech 14-18 GM C/K1500 w/OE Forged UCA 6in Basic System Gen II w/Rear Stealth Shocks
6" BASIC SYS G2 W/ STEALTH 14-18 GM C/K1500 P/U W/ OE FORG STL UCA
6in. BASIC SYS G2 W/STEALTH 14-18 GM C/K1500 P/U W/OE FORG STL UCA
6in. BASIC SYS GEN 2 W/STEALTH 2014 GM C/K1500 P/U W/STEEL SUSP
6" BASIC SYS G2 W/ S
6in. BASIC SYS G2 W/
Suspension Lift Kit
