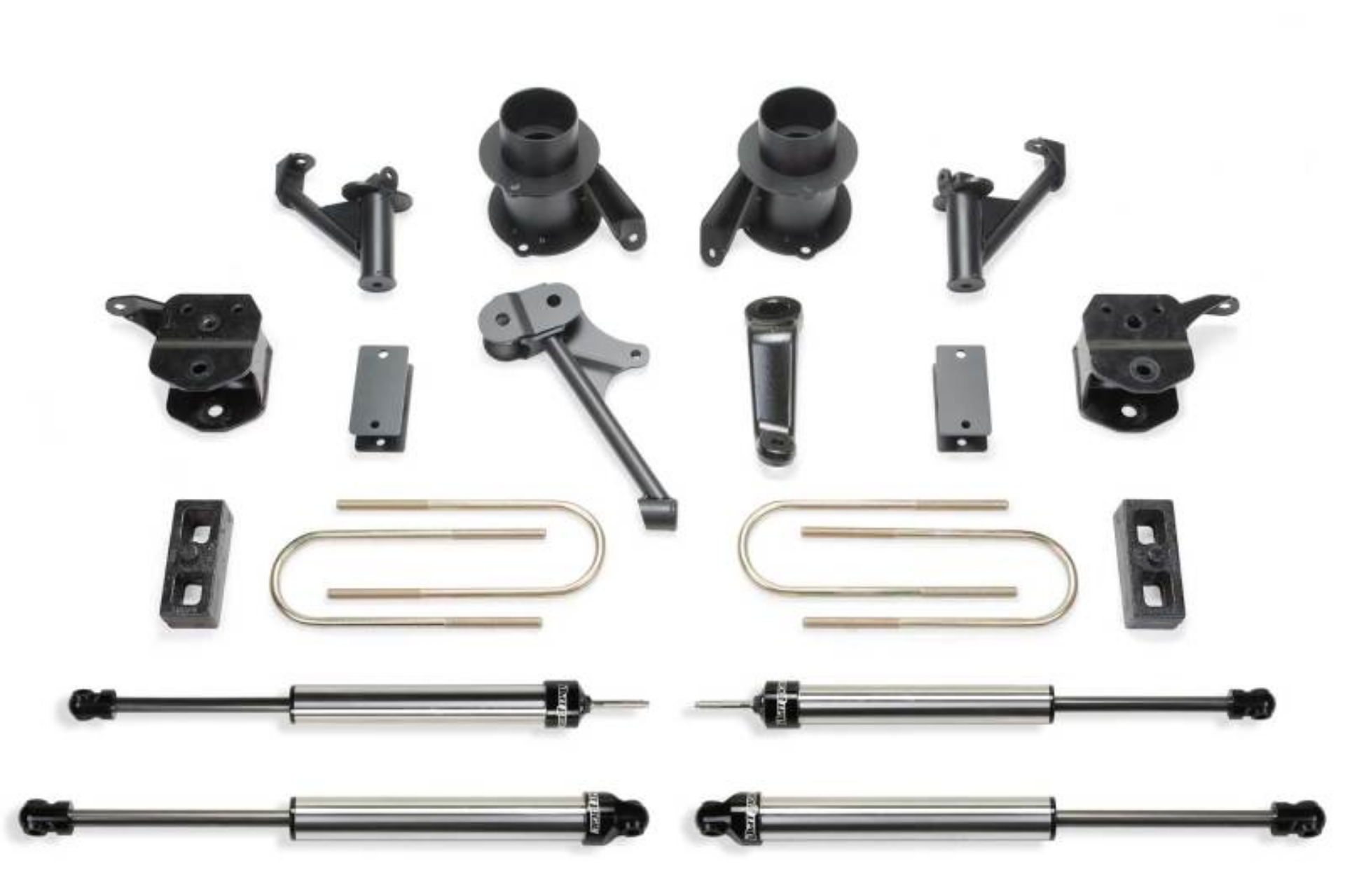

Fabtech 13-18 Ram 3500 4WD w-Factory Radius Arms 5in Basic System w-DL Shocks

This high quality system has been designed to retain the factory load carrying capacity and ride of the vehicle with minimal parts. The stock coil springs are retained with angular steel spacers to retain the factory spring bow. This is an important feature as Chrysler designed the bow to aid in handling and ride. Flat spacers do not provide this. The factory Radius Arms are relocated with heavy duty 1/4in thick steel brackets for proper caster. A Track Bar drop bracket centers the axle under the vehicle. A Fabtech exclusive on this system is the steel front bump extensions. They will not blow out like long urethane bump stops found in other aftermarket suspensions. No chance of spring and shock damage with the Fabtech'steel extensions. The rear suspension receives a block and u-bolt system with bump stop extensions. The 5in Basic System will clear 37in tall tires and includes front and rear 2.25 Dirt Logic Stainless Steel shocks. Estimated installation time - 4 hrs. 9 holes to drill for installation. No Welding Required.

Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.

TIRE SIZE - 37/12.50R17 WHEEL - 17X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 37/12.50R18 WHEEL - 18X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 37/13.50R20 WHEEL - 20X9.5 W/5" BS W/MINOR TRIMMING; 130. WILL NOT FIT FACTORY AIR SUSPENSION.

Fabtech 13-18 Ram 3500 4WD w/Factory Radius Arms 5in Basic System w/DL Shocks

5in. BASIC KIT W/DLSS SHKS 2013-14 RAM 3500 4WD W/FACTORY RADIUS ARMS

5in. BASIC KIT W/DLSS SHKS 2013-18 RAM 3500 4WD W/FACTORY RADIUS ARMS

5" BASIC KIT W/DLSS SHKS 2013-18 RAM 3500 4WD W/FACTORY RADIUS ARMS

5" BASIC KIT W/DLSS

Suspension Lift Kit

LftKt-Suspw/Shock
