The 4'' Ultimate System is available with our Uniball Upper Control Arms that feature .120'' wall 4130 Chromoly tubing with a 1.50'' OD 1'' FK Stainless PTFE Uniballs for 9'' of front wheel travel. The system also includes heavy duty ductile iron steering knuckles and forged adjusting torsion bar keys to provide the proper amount of lift without CV bind. The system will level the stance of the vehicle compared to the factory nose down rake with no change to the rear suspension. For those customers that require a factory nose down appearance an optional 1'' rear block kit is available. Uniball Upper Control Arms are available separately as an upgrade to stock, previously installed Fabtech'suspensions or other aftermarket suspension systems. Includes front 2.5 Dirt Logic Stainless Steel coil over shocks and rear 2.25 Dirt Logic Stainless Steel shocks.
The 4 Ultimate System is available with our Uniball Upper Control Arms that feature .120 wall 4130 Chromoly tubing with a 1.50 OD 1 FK Stainless PTFE Uniballs for 9 of front wheel travel. The system also includes heavy duty ductile iron steering knuckles and forged adjusting torsion bar keys to provide the proper amount of lift without CV bind. The system will level the stance of the vehicle compared to the factory nose down rake with no change to the rear suspension. For those customers that require a factory nose down appearance an optional 1 rear block kit is available (2500HD Part # FTS21110) (3500HD Part # FTS21111). Uniball Upper Control Arms are available separately as an upgrade to stock, previously installed Fabtech suspensions or other aftermarket suspension systems.
TIRE SIZE - 33/12.50R18 WHEEL - 18X9 W/5 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 33/12.50R20 WHEEL - 20X9 W/5 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 35/13.50R18 WHEEL - 18X9 W/5 3/4" BS W/FENDERWELL CUTTING; TIRE SIZE - 35/13.50R20 WHEEL - 20X9 W/5 3/4" BS W/FENDERWELL CUTTING; 17. DOES NOT FIT STANDARD CAB.; 114. WILL NOT ALLOW USE OF 17? WHEELS.; 124. REQUIRES CUTTING OF FENDERWELL SHEETMETAL FOR USE WITH 35? TIRES

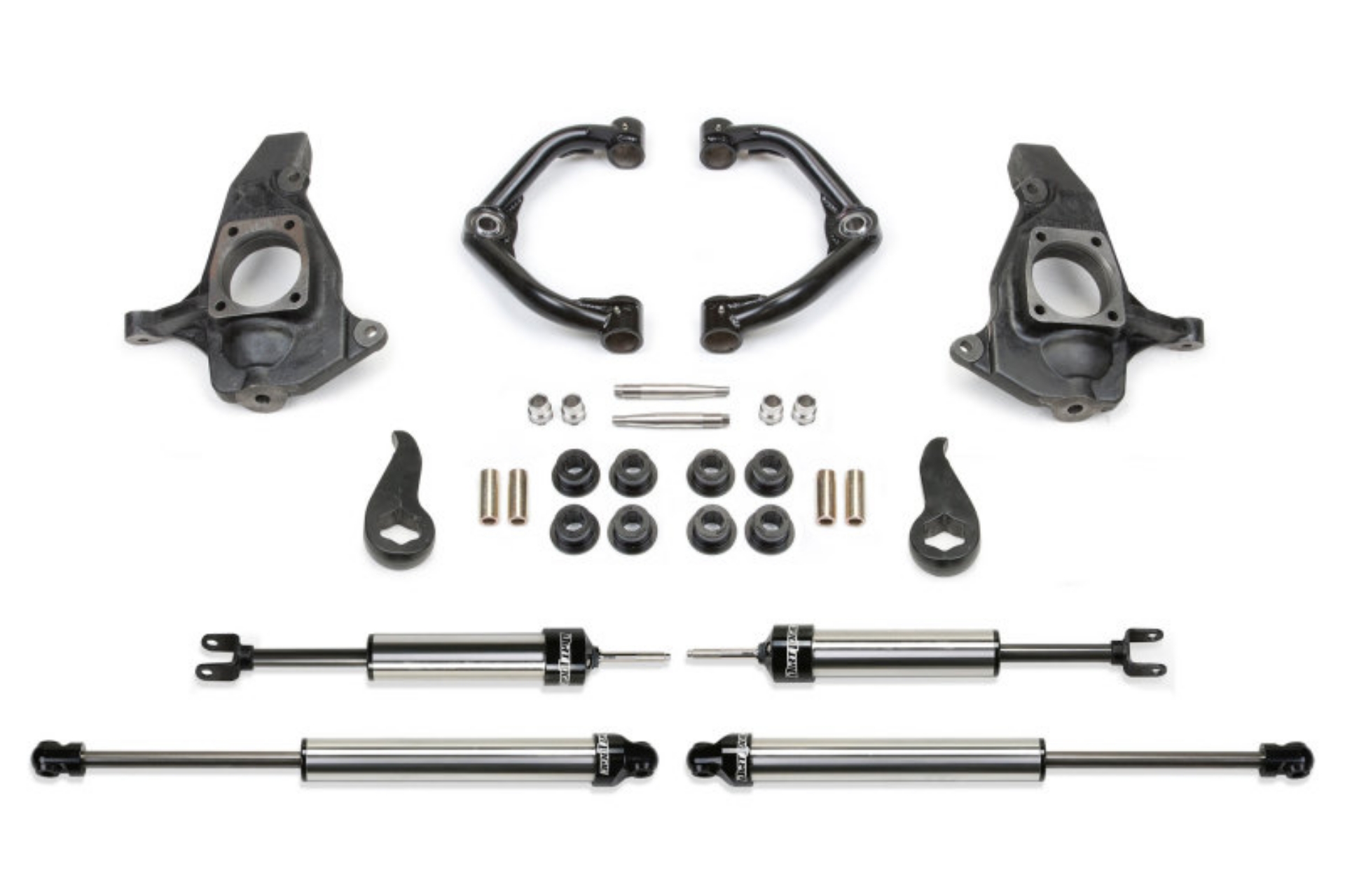

Fabtech 11-19 GM C/K2500HD/3500HD 4in Ultimate System w/Uniball UCA & DL Shocks
3.5" ULTIMATE SYS W/UNIBALL UC & DLSS SHKS 2011-19 GM C/K2500HD/3500HD
4in. ULTIMATE SYS W/UNIBALL UCA/DLSS SHKS 2011-15 GM C/K2500HD/3500HD
4in. ULTIMATE SYS W/UNIBALL UCA/DLSS SHKS 2011-18 GM C/K2500HD/3500HD
3.5" ULTIMATE SYS W/
Suspension Lift Kit
LftKt-Suspw/Shock
