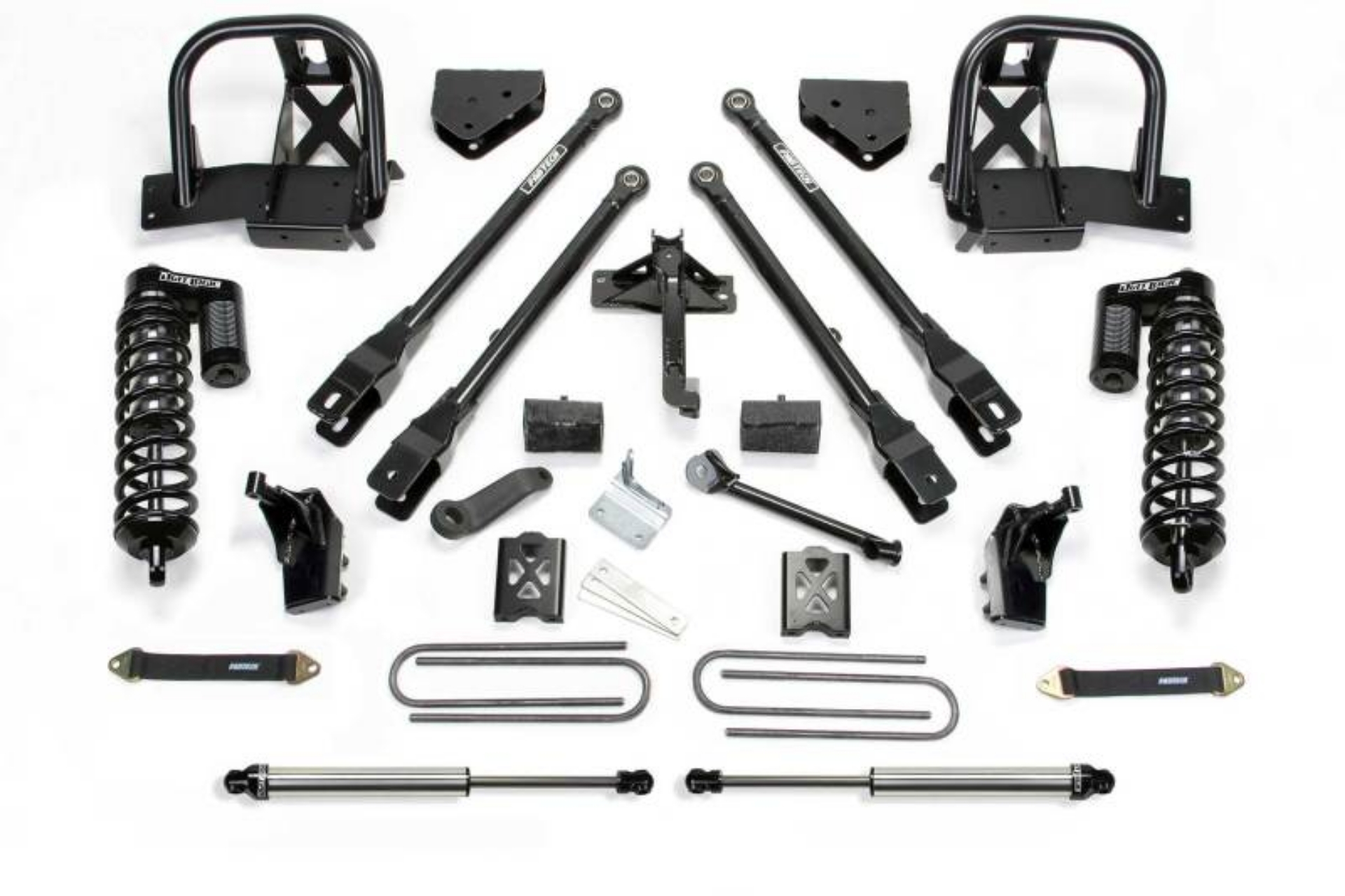

Fabtech 11-16 Ford F250 4WD 6in 4Link Sys w-Dlss 4-0 C-O& Rr Dlss

Obtain maximum front suspension damping for Super Duty's with our Dirt Logic 4.0 Stainless Steel Coilover Conversion system. The upper coilover mounts are constructed with 1.75 diameter DOM tubing that replaces the factory coil spring mounts and span across a wide section of the frame for proper impact load distribution. The lower mounts are 1/4'' thick steel that attach to the axle housing, providing solid mounting points for the Dirt Logic 4.0 Stainless Steel Coilover piggyback reservoir shocks. Also included in this system are billet sway bar end links with heim ends and quad layer limiting straps. Includes rear 2.25 Dirt Logic Stainless Steel shocks.

For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2 diameter heavy wall links feature race style 1 Uniballs for superior strength. Thick 1/4 steel brackets secure the 4 Links to the frame without cutting or welding. The system also includes Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and U-Bolt kit.

TIRE SIZE - 35/12.50R20 WHEEL - 20X10 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 315/70R17 WHEEL - 17X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 325/65R18 WHEEL - 18X9.5 W/4 3/4" BS W/MINOR TRIMMING; 27. FRONT DRIVE SHAFT MODIFICATION MAY BE REQUIRED TO CLEAR EXHAUST ON GAS MOTOR.

Fabtech 11-16 Ford F250 4WD 6in 4 Link System w/DL 4.0 Coilovers & Rear DL Shocks

4 Link Lift System; w/DLSS Shocks; 6 in. Lift; 4.0 Coilovers;

6" 4LINK SYS W/DLSS 4.0 C/O& RR DLSS 2011-16 FORD F250 4WD

6" 4LINK SYS W/DLSS

Suspension Lift Kit

4 Link Lift System

LftKt-Suspw/Shock
