Fabtech 11-16 Ford F250-350 4WD 8in Front Dirt Logic 4-0 Reservoir Coilover - Driver

The best shocks only get better with all new Stainless Steel and Aluminum construction. High grade 304 Stainless Steel shock bodies eclipse all other shocks on the market for maximum corrosion resistance. Each Stainless Steel shock body receives a finely detailed machine finish for a stunning appearance. Dirt Logic Stainless Steel reservoir shocks have been upgraded with black anodized 6061 Aluminum reservoir bodies. This includes both piggyback and remote reservoir shocks. The Aluminum resi construction allows for greater heat dissipation thereby keeping the shock cooler to reduce fade during aggressive offroad use. Finally each Dirt Logic piston rod has been upgraded to a NitroSteel(R) material that is super hard while providing increased corrosion resistance compared to chromed piston rods. Get the finest ride with maximum corrosion resistance only from Dirt Logic shocks. In addition to the specific Dirt Logics for each suspension system, there is also a line of universal Dirt Logic shocks available in reservoir and non-reservoir styles, ranging from 8 to 16 inches of stroke. These universal shocks are sold with universal hardware kits for easy installation. Dirt Logic 2.0 and 2.25 shocks feature urethane bushings in the mounting points to reduce road noise and rattling associated with spherical bearings. Dirt Logic coilover shocks utilize spherical bearings at each end for increased strength along with urethane misalignment cups in the top caps. The misalignment cups keep the road noise transferred through spherical bearings to a minimum. Dirt Logic 2.5 and 4.0 coilover shocks use coil springs made to the highest quality standards possible. All Dirt Logic coils posses the ability to go solid without breaking, settling or bowing. All Dirt Logic coilover shocks come preset with the proper amount of preload so they can be bolted on without any further adjustment necessary. Dirt Logics are available with or without an external reservoir.

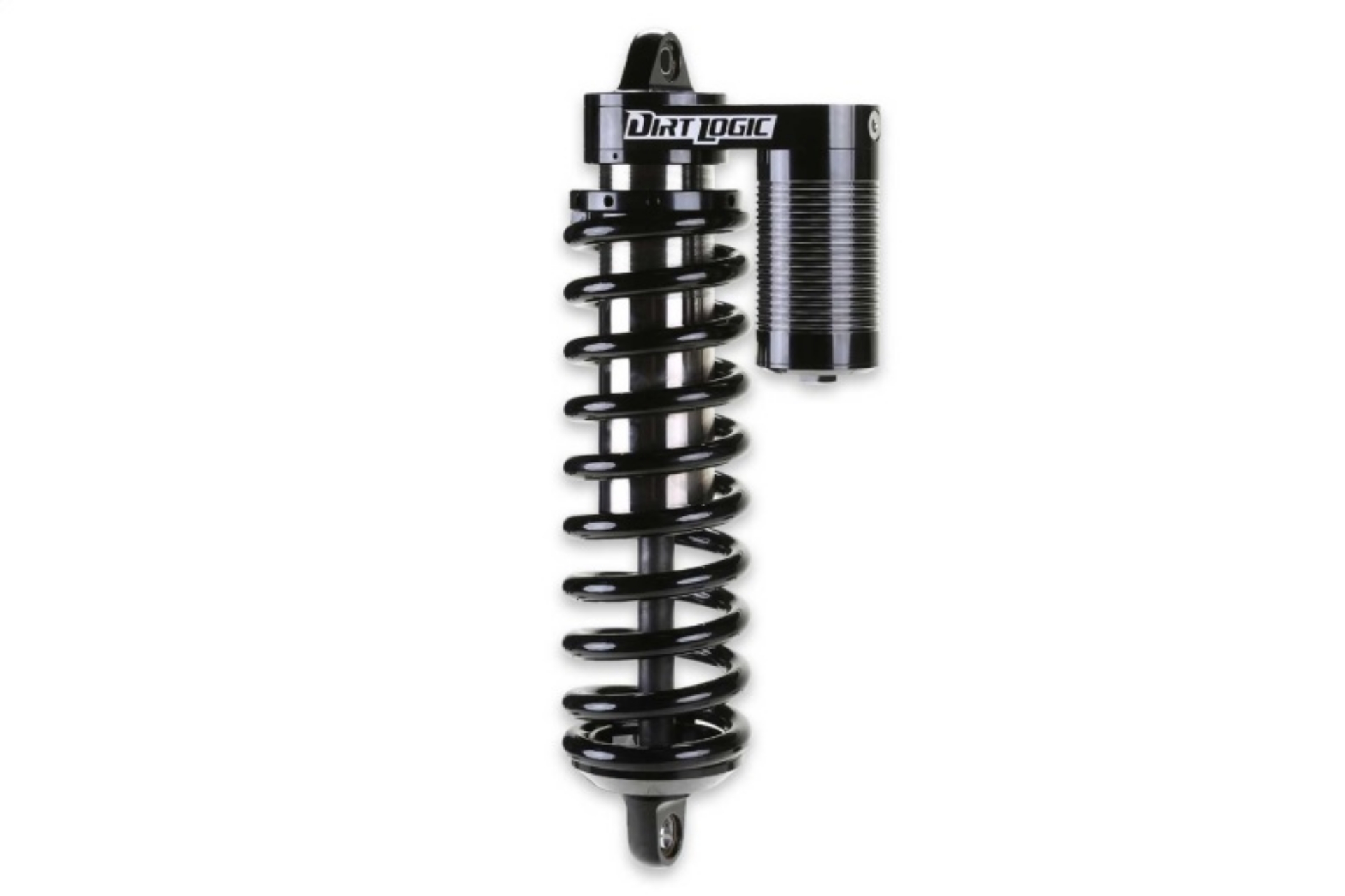

Dirt Logic 4.0 Resi Coilover. The Dirt Logic 4.0 provides the ultimate in hardcore offroad dampening capacity with superior highway comfort in a big package. This massive high end shock is designed for full size vehicles that required the biggest and best Coilover shock in a bolt on configuration. Nothing else comes close. Features: 4.0" OD Stainless Steel Body. 3 5/8" OD Billet Aluminum Piston. 1 1/4" NitroSteel Black Piston Rod. Cold Wound Coil Springs. Adjustable Coilover Construction. 3/4" Spherical Ball Mounting Ends. 4.0" OD Aluminum Remote Resi. Extended Length - E25.31. Collasped Length - C16.81. Stroke Length - S8.50. Top Mount - B2 . Bottom Mount - B1.

Fabtech 11-16 Ford F250/350 4WD 8in Front Dirt Logic 4.0 Reservoir Coilover - Driver

Shock Absorber and Coil Spring Assembly

NO WHEELS/TIRES; 0. NO FOOTNOTES

4.0DLSS R/R 11-16 SD 8in. DRVR

4.0DLSS R/R 11-16 SD 8" DRVR

Dirt Logic 4.0 Resi Coilover

4.0DLSS R/R 11-16 SD

CoilOvr
