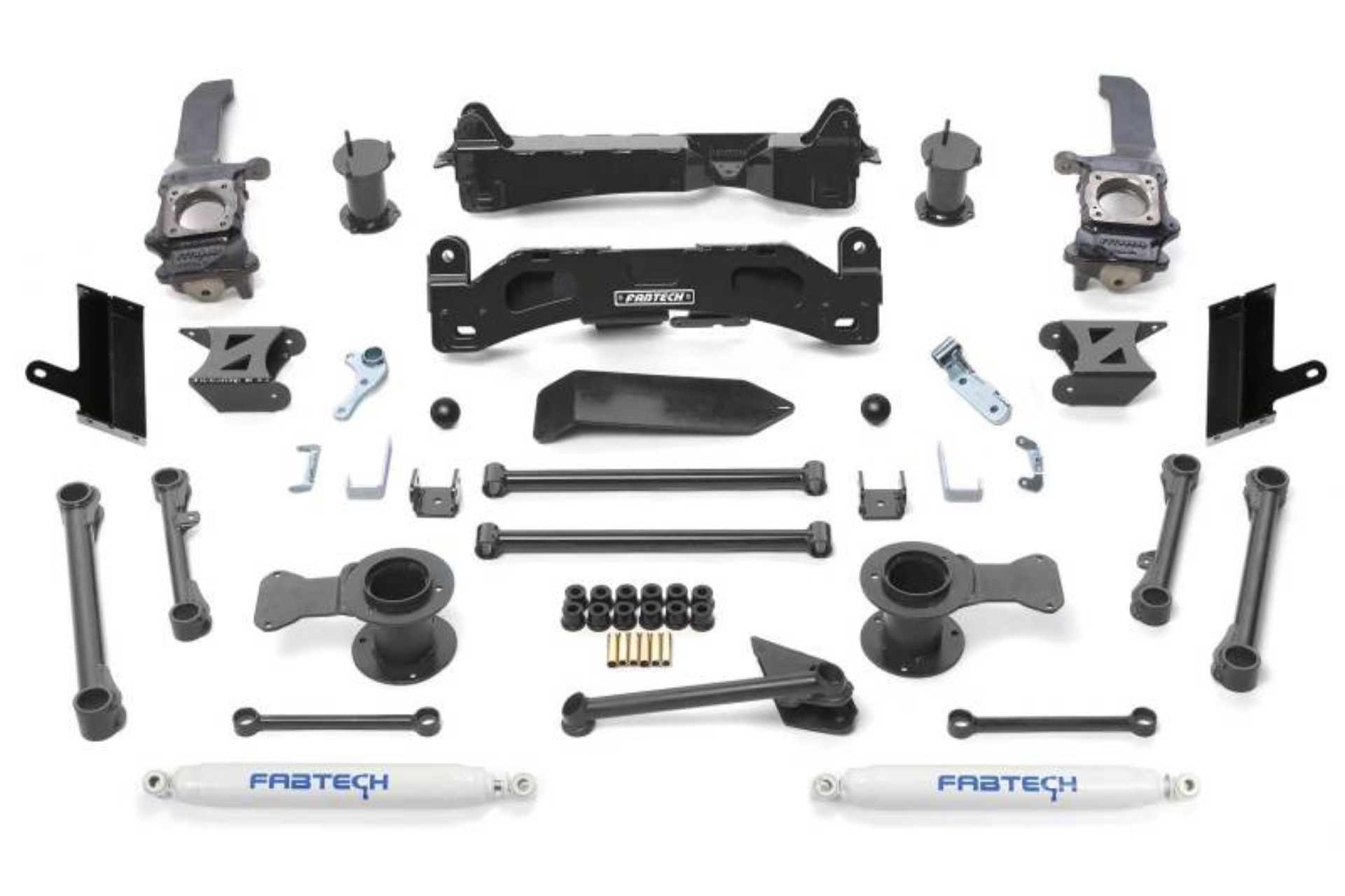

Fabtech 10-15 Toyota 4Runner 4WD 6in Basic Sys w-Perf Shks

This Toyota 4Runner suspension system features Fabtechs proven IFS technology with extended length ductile iron steering knuckles for proper electronic stability control functionality. Heavy duty 1/4 thick steel lower control arm crossmembers provide superior ground clearance while the integrated front differential skid plate adds protection to the drivetrain for offroad use. The system includes front coilover spacers that utilize the factory Toyota 4Runner Coilover shocks for a stock like ride characteristic. Rear lift is accomplished with steel coil spring spacers that retains the Toyota 4Runner coil springs for a smooth ride. Heavy duty Fabtech control link arms replace the factory arms to reposition the tire in the wheel well with the additional ride height. A stout 1/4 thick steel bracket relocates the rear Track Bar to keep the vehicle tracking proper.

This Toyota 4Runner suspension system features Fabtech?s proven IFS technology with extended length ductile iron steering knuckles for proper electronic stability control functionality. Heavy duty 1/4" thick steel lower control arm crossmembers provide superior ground clearance while the integrated front differential skid plate adds protection to the drivetrain for offroad use. The system includes front coilover spacers that utilize the factory Toyota 4Runner Coilover shocks for a stock like ride. Rear lift is accomplished with steel coil spring spacers that retain the Toyota 4Runner coil springs for a smooth ride. Heavy duty Fabtech control link arms replace the factory arms to re-position the tire in the wheel well with the additional ride height. A stout 1/4" thick steel bracket relocates the rear Track Bar to keep the vehicle tracking proper.

TIRE SIZE - 35/12.50R17 WHEEL - 17X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R18 WHEEL - 18X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; 68. KIT DOES NOT FIT MODELS WITH FACTORY ELECTRONIC CONTROLLED SHOCKS.; 168. WILL NOT FIT TRD PRO MODELS; 183. DOES NOT WORK WITH KDSS SWAY BAR SYSTEM; 186. 2015 MODELS W/ M12-1.25 CALIPER BOLTS ONLY. HAVE DEALER CHECK VIN TO VERIFY.

Fabtech 10-15 Toyota 4Runner 4WD 6in Basic System w/Perf. Shocks

6in. BASIC SYS W/PERF SHKS 2010-15 TOYOTA 4RUNNER 4WD

6" BASIC SYS W/PERF SHKS 2010-15 TOYOTA 4RUNNER 4WD

Basic Lift System w/Shocks

6in. BASIC SYS W/PER

6" BASIC SYS W/PERF

Suspension Lift Kit
