Our new 2009-13 F150 GEN II system utilizes the proven designs from our 2014 system at an affordable price and fast install for the earlier model trucks. This system includes heavy duty 1/4'' thick steel lower control arm crossmembers with an integrated front differential skid plate for protection and increased front suspension strength. Fabtech extended length ductile iron steering knuckles allow use of 18'', 20'' or 22'' wheels. The Basic GEN II System includes front spacers utilizing the factory Coilover shock while the rear receives Fabtech Performance twin tube shocks. Includes Fabtech's 5/60 Powertrain warranty. Five years or 60,000 mile warranty on the vehicle with a Fabtech'suspension. Estimated installation time - 4 Hours. 0 holes to drill for installation. No Welding Required.
As a popular alternative to our Radius Arm and 4 Link System this Basic Drop Bracket system is designed for the budget minded enthusiast. Application utilizes the stock radius arm. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, Add-a-leafs with rear blocks, u bolt kit and more.
TIRE SIZE - 35/13.50R18 WHEEL - 18X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 35/13.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 325/65R18 WHEEL - 18X9 W/5" BS W/MINOR TRIMMING; 14. CAN NOT USE OEM WHEEL AND TIRE.; 47. FITS SUPERCREW ONLY.; 123. WILL NOT FIT RAPTOR MODELS.

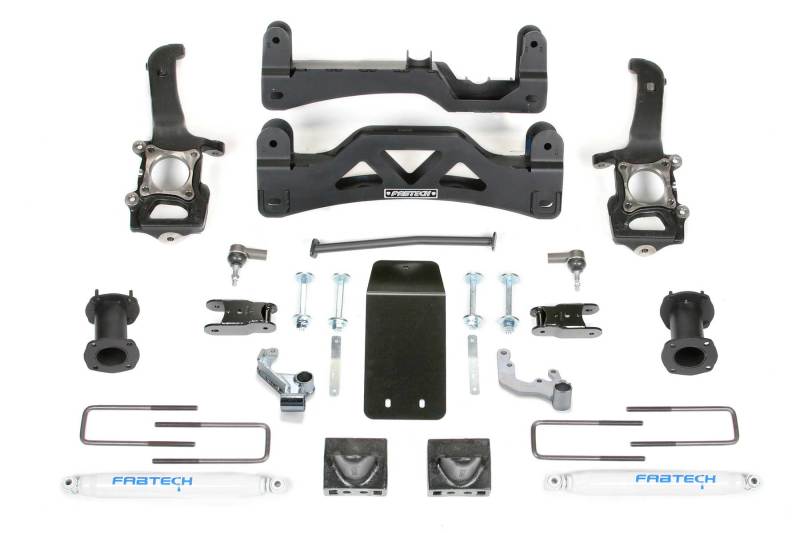

Fabtech 09-13 Ford F150 4WD 6in Basic System Gen II w/Perf. Shocks
6in. BASIC SYS GEN II W/PERF SHKS 2009-13 FORD F150 4WD
6" BASIC SYS GEN II W/PERF SHKS 2009-13 FORD F150 4WD
6" BASIC SYS GEN II
Suspension Lift Kit
LftKt-Suspw/Shock
