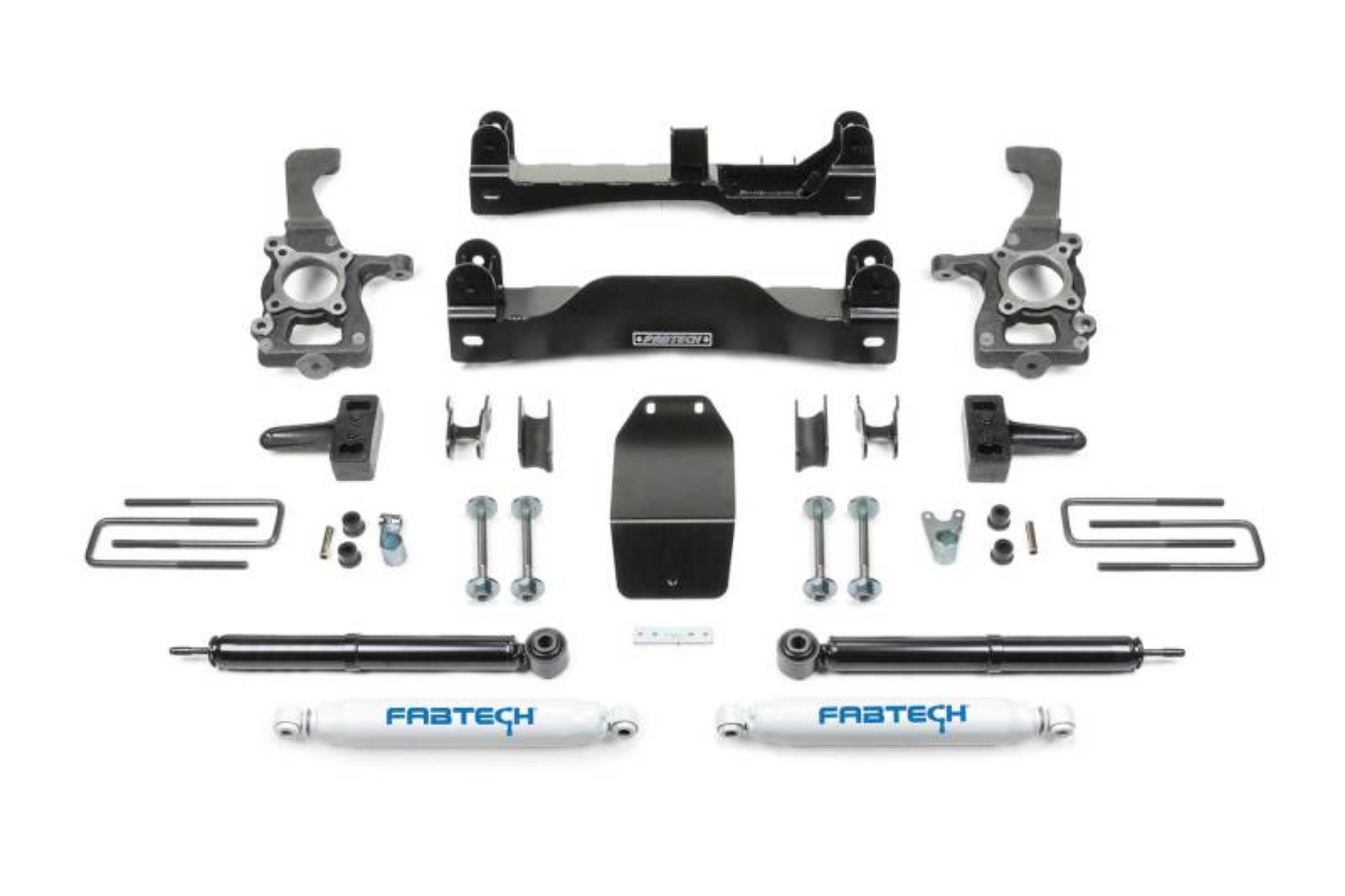

Fabtech 09-13 Ford F150 4WD 4in Basic Sys w-Perf Shks

Fabtech's new 4'' F150 system utilizes their proven heavy duty construction and design features found in their 6'' systems but with less lift and at a much lower price. This 4'' System allows use of 35'' tall tires and features high arched lower control arm crossmembers constructed of 1/4 “ thick steel for maximum strength. The Fabtech ductile iron steering knuckles retain the stock track width keeping tires under the fender for a clean appearance. Rear lift is accomplished with a block and u-bolt configuration. The Basic System includes heavy duty front Coilover shocks for increased dampening capacity while retaining the factory coil springs and Fabtech's Performance rear shocks. The 4'' System allows use of 33'' or 35'' tires and is ESC (Electronic Stability Control) and Traction Control compliant.

Fabtechs new 4 F150 system utilizes their proven heavy duty construction and design features found in their 6 systems but with less lift and at a much lower price. This 4 System allows use of 35 tall tires and features high arched lower control arm crossmembers constructed of 1/4 thick steel for maximum strength. The Fabtech ductile iron steering knuckles retain the stock track width keeping tires under the fender for a clean appearance. Rear lift is accomplished with a block and u-bolt configuration. The Basic System includes heavy duty front Coilover shocks for increased dampening capacity while retaining the factory coil springs and Fabtechs Performance rear shocks. The 4 System allows use of 33 or 35 tires and is ESC (Electronic Stability Control) and Traction Control compliant.

TIRE SIZE - 35/12.50R18 WHEEL - 18X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/60R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/70R18 WHEEL - 18X9 W/5" BS W/MINOR TRIMMING; 123. WILL NOT FIT RAPTOR MODELS.; 124. REQUIRES CUTTING OF FENDERWELL SHEETMETAL FOR USE WITH 35? TIRES

Fabtech 09-13 Ford F150 4WD 4in Basic System w/Perf. Shocks

4in. BASIC SYS W/PERF SHKS 09-12 FORD F150 4WD

4in. BASIC SYS W/PERF SHKS 09-13 FORD F150 4WD

4" BASIC SYS W/ PERF SHKS 09-13 FORD F150 4WD

4" BASIC SYS W/ PERF

Suspension Lift Kit

LftKt-Suspw/Shock
