At the top of our Super Duty line is our famous bolt-on 4 Link System that provides unsurpassed articulation and wheel travel. These 2" diameter heavy wall links feature race style 1" Uniballs for superior strength. Thick 1/4" steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system is comes complete with our replacement Coil Springs, Sway Bar drops, Pitman Arm, and a rear Block & U-Bolt kit. Includes Stealth front and rear shocks. Estimated installation time is 6-7 hours. Amount of holes to drill - 6. No welding required.
For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2 diameter heavy wall links feature race style 1 Uniballs for superior strength. Thick 1/4 steel brackets secure the 4 Links to the frame without cutting or welding. The system also includes Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and U-Bolt kit.
TIRE SIZE - 35/12.50R20 WHEEL - 20X10 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 315/70R17 WHEEL - 17X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 325/65R18 WHEEL - 18X9.5 W/4 3/4" BS W/MINOR TRIMMING

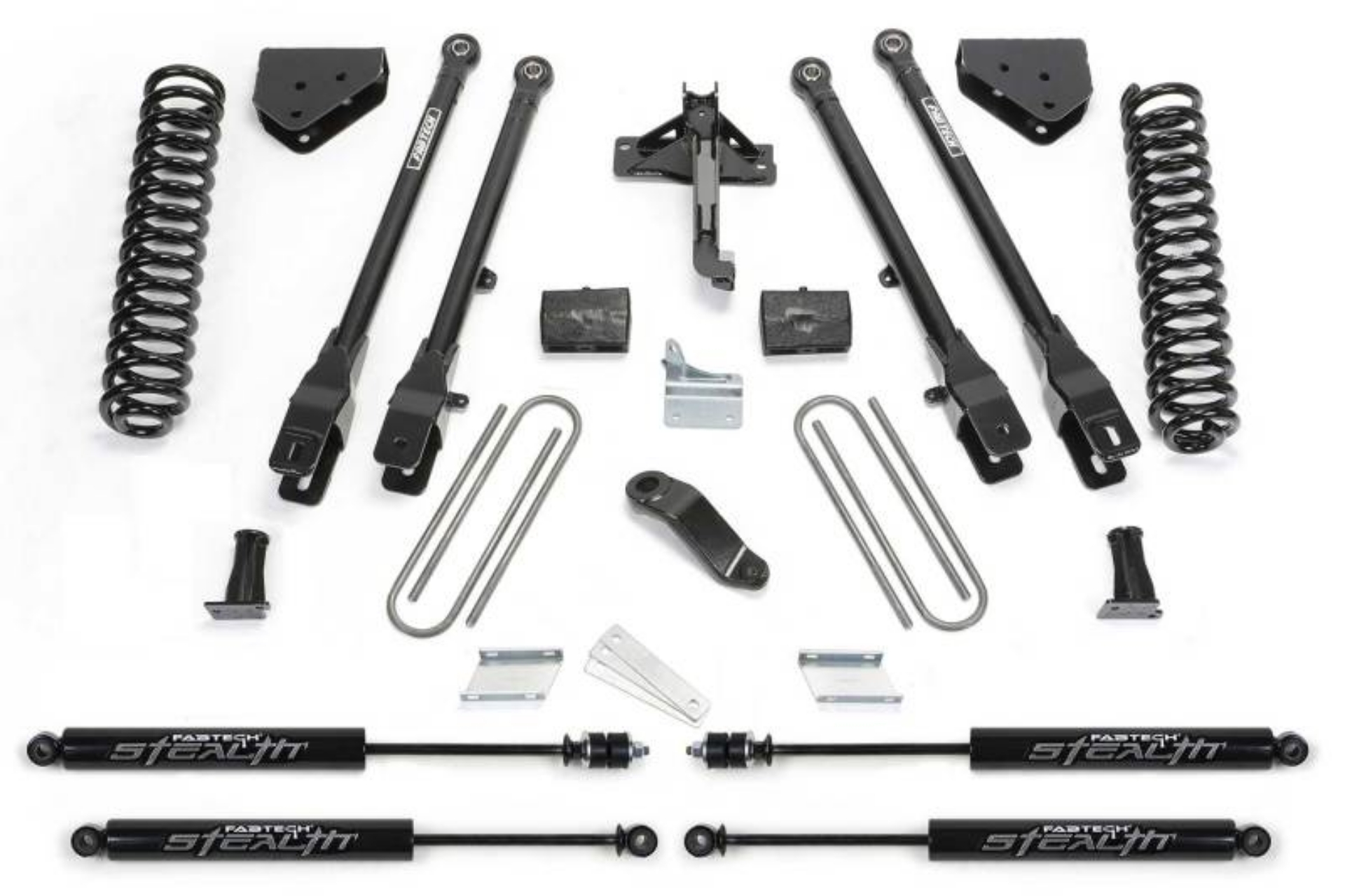

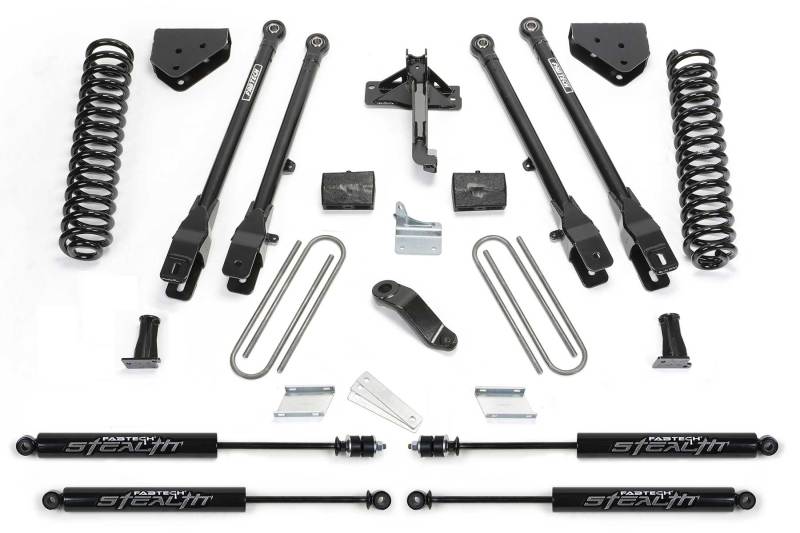

Fabtech 08-16 Ford F250/350 4WD 4in 4 Link System w/Stealth Shocks
4" 4LINK SYS W/COILS & STEALTH 2008-16 FORD F250/F350 4WD
4in. 4LINK SYS W/COILS/STEALTH 2008-16 FORD F250/F350 4WD
4" 4LINK SYS W/COILS
4in. 4LINK SYS W/COI
Suspension Lift Kit
4 Link Lift System
