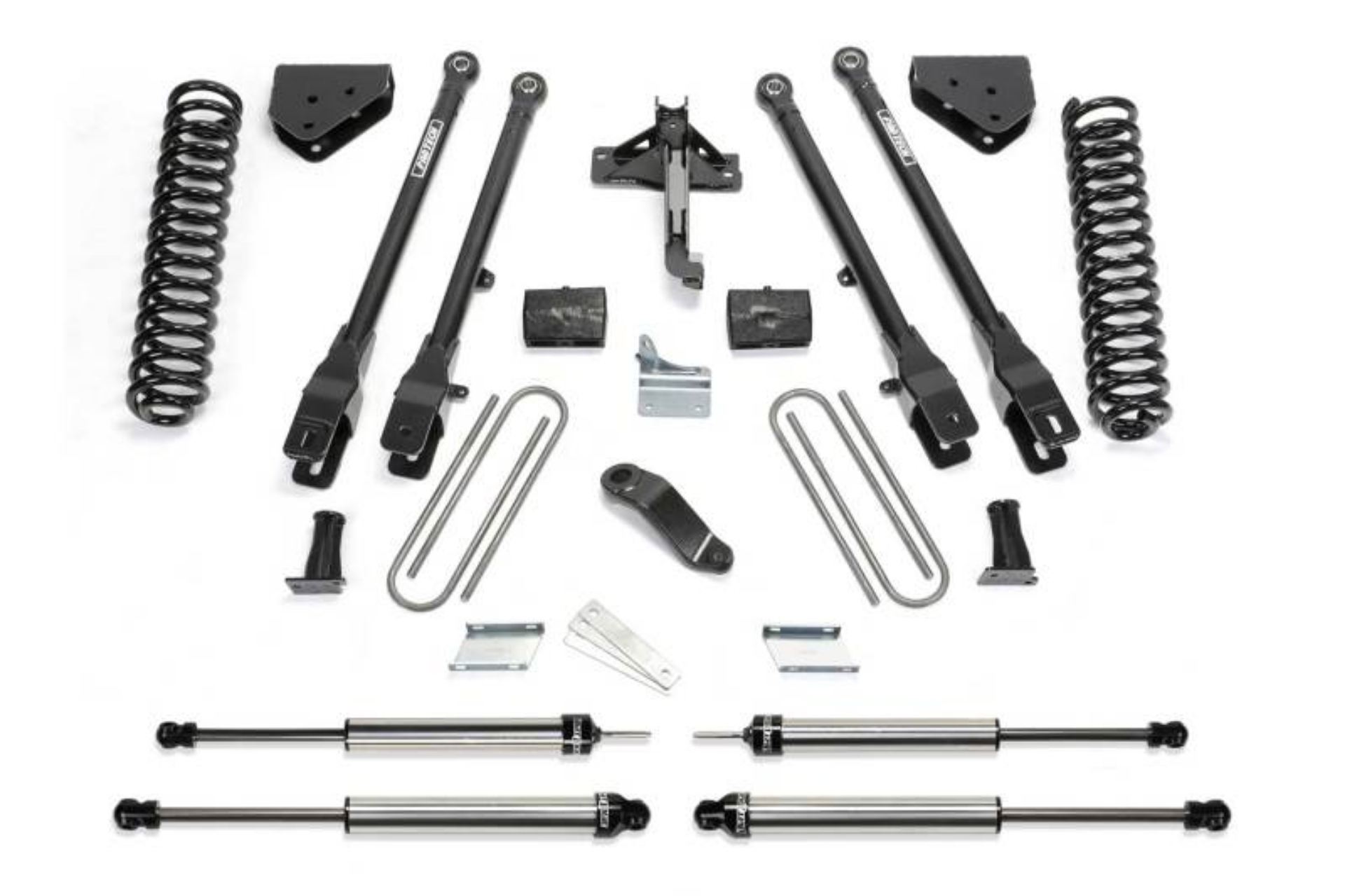

For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2'' diameter heavy wall links feature race style 1'' Uniballs for superior strength. Thick 1/4'' steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system allows the use of our replacement Coil Springs. The system also includes Sway bar drops, Trac Bar relocation bracket, Pitman Arm, and a rear Block & U-Bolt kit. Includes front and rear 2.25 Dirt Logic Stainless Steel shocks.
For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2 diameter heavy wall links feature race style 1 Uniballs for superior strength. Thick 1/4 steel brackets secure the 4 Links to the frame without cutting or welding. The system also includes Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and U-Bolt kit.
TIRE SIZE - 35/12.50R20 WHEEL - 20X10 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 315/70R17 WHEEL - 17X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 325/65R18 WHEEL - 18X9.5 W/4 3/4" BS W/MINOR TRIMMING; 27. FRONT DRIVE SHAFT MODIFICATION MAY BE REQUIRED TO CLEAR EXHAUST ON GAS MOTOR.
Fabtech 08-15 Ford F250 4WD 6in 4 Link System w/DL Shocks
6" 4LINK SYS W/COILS & DLSS SHKS 2008-15 FORD F250 4WD
6in. 4LINK SYS W/COILS/DLSS SHKS 2008-14 FORD F250 4WD
6in. 4LINK SYS W/COILS/DLSS SHKS 2008-15 FORD F250 4WD
6" 4LINK SYS W/COILS
6in. 4LINK SYS W/COI
Suspension Lift Kit
