At the top of our Super Duty line is our famous 4 Link System that provides unsurpassed articulation and wheel travel. Large 2'' diameter heavy wall links feature race style 1'' Uniballs for superior strength. Thick 1/4'' steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system includes our Dirt Logic 4.0 Stainless Coilover Shock conversion. The system also includes Sway Bar drops, Trac Bar relocation bracket, Pitman Arm, rear Add-a-leafs, and a Block & U-bolt kit. Includes rear 2.25 Dirt Logic Stainless Steel shocks.
For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2 diameter heavy wall links feature race style 1 Uniballs for superior strength. Thick 1/4 steel brackets secure the 4 Links to the frame without cutting or welding. The system also includes Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and U-Bolt kit.
TIRE SIZE - 37/13.50R20 WHEEL - 20X10 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 355/65R18 WHEEL - 18X9.5 W/4 3/4" BS W/MINOR TRIMMING; 27. FRONT DRIVE SHAFT MODIFICATION MAY BE REQUIRED TO CLEAR EXHAUST ON GAS MOTOR.

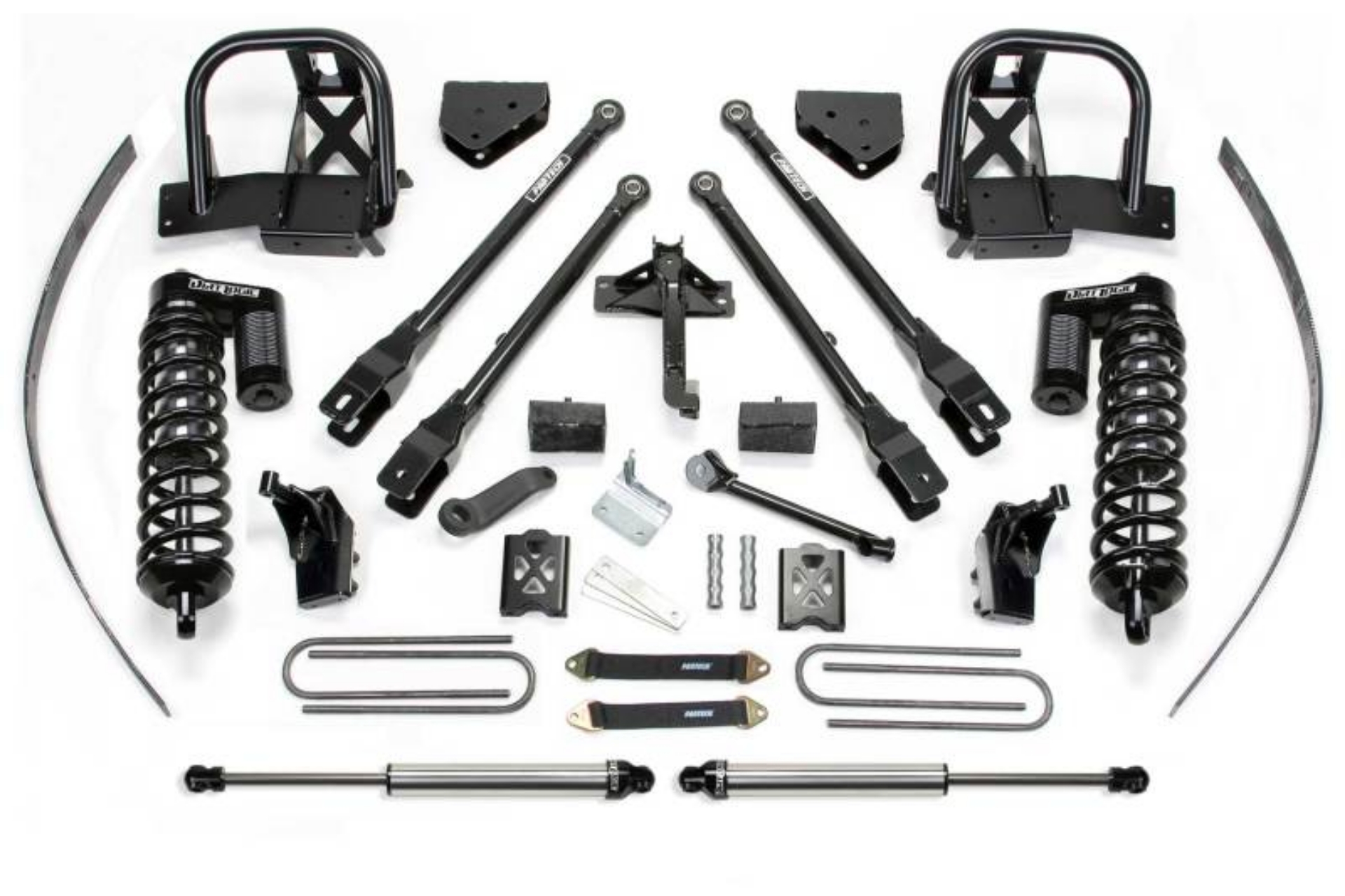

Fabtech 08-10 Ford F250 4WD w/Overload 8in 4 Link System w/DL 4.0 Coilovers & Rear DL Shocks
8" 4LINK SYS W/DLSS 4.0 C/O & RR DLSS 08-10 FORD F250 4WD W/FACTORY OVERLOAD
8in. 4LINK SYS W/DLSS 4.0 C/O/RR DLSS 08-10 FORD F250 4WD W/FACTORY OVERLOAD
8" 4LINK SYS W/DLSS
Suspension Lift Kit
LftKt-Suspw/Shock
