Our 6 Suspension systems for the T900 platform uses our industry leading crossmember and spindle technology. Fabtech pushes the envelope with superior ride height to properly clear 35 tall tires. Extensive design work was given to the extended length steering knuckles to keep the track width near stock with superior turning radius for maneuverability in tight spots. Lower control arm crossmembers are strengthened with cross tubes backed up by tubular frame struts to distribute front suspension impact loads. The front differential is protected with a tightly formed 1/4 thick steel skid plate. Rear suspension lift is accomplished via a block and add a leaf system.With two systems available, the Basic system features all the above componentry with a front coilover spacer system utilizing the factory coilover assembly for a stock like ride.
TIRE SIZE - 35/12.50R17 WHEEL - 17X9 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R18 WHEEL - 18X9 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 37/12.50R18 WHEEL - 18X9 W/4 1/2" BS W/CUTTING; TIRE SIZE - 37/12.50R20 WHEEL - 20X9 W/5" BS W/CUTTING; W/TUBE FENDERS: TIRE SIZE - 37/12.50R17 WHEEL - 17X9 W/4 1/2" BS W/CUTTING; TIRE SIZE - 325/60R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 325/65R18 WHEEL - 18X9 W/4 1/2" BS W/MINOR TRIMMING; 148. EXHAUST SPACERS REQUIRED FOR ALL INSTALLATIONS ON 2012-CURRENT JEEP WRANGLERS; 155. OFFROAD USE REQUIRES DRIVESHAFTS FOR 2 DOOR MODEL 07-11 (FRONT FTS94057) (REAR FTS94051); 156. OFFROAD USE REQUIRES DRIVESHAFTS FOR 2 DOOR MODEL 12-18 (FRONT FTS94057) (REAR FTS94058)
Fabtech offers a 3'' Budget System for Jeep JK's that includes four American made Coil Springs that have been designed to clear 35'' tall tires. The Coil Springs are specific to 2 or 4 door models and undergo a “preset'' manufacturing process to insure a consistent ride height. System also includes front and rear Shocks, front Sway Bar Links, front Bump Stops, rear Bump Stop extensions, Rear Trac Bar bracket rear Brake Hose extension, Emergency Brake cable brackets all in one box. This System will increase offroad capabilities and provide a good highway ride.

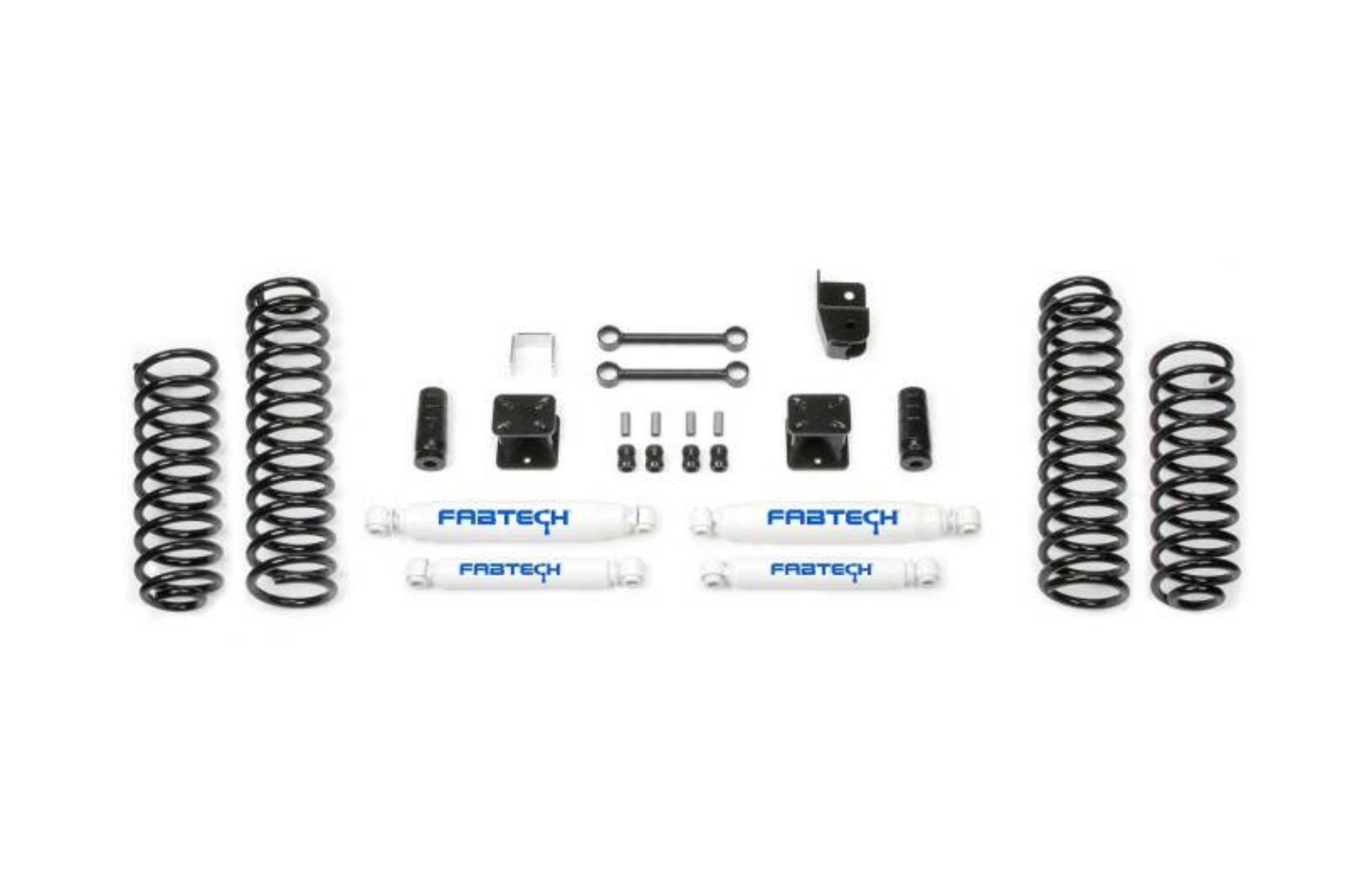

Fabtech 07-18 Jeep JK 4WD 2-Door 3in Sport System w/Perf. Shocks
3in. SPORT SYSTEM W/PERF SHKS 2007-18 JEEP JK 2-DOOR
3" SPORT SYSTEM W/ PERF SHKS 2007-18 JEEP JK 2-DOOR
3in. BUDGET SYSTEM W/PERF SHKS 07-12 JEEP JK 2-DOOR
3" SPORT SYSTEM W/ P
3in. SPORT SYSTEM W/
Suspension Lift Kit
