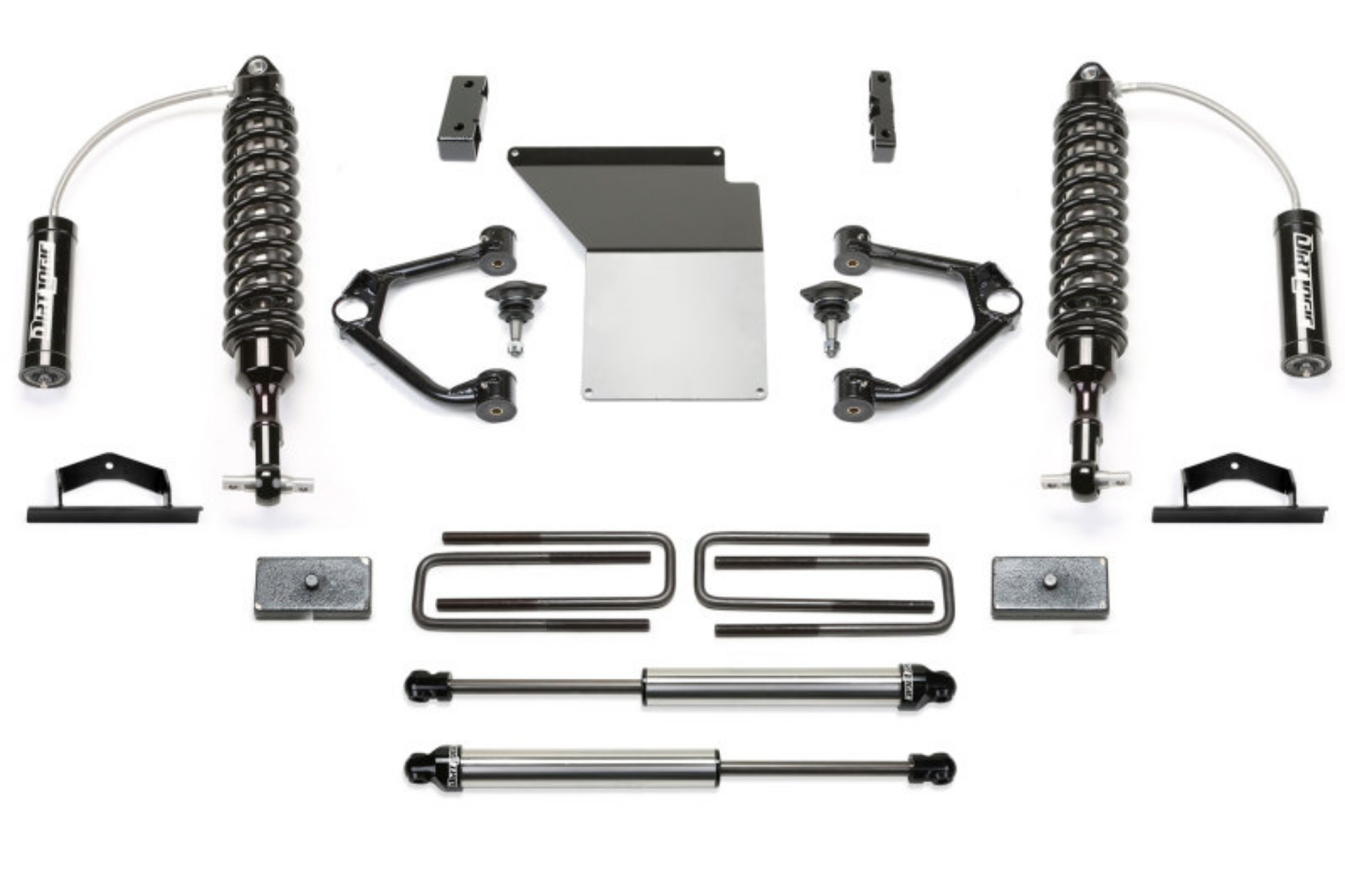

Fabtech 07-18 GM K1500 w-OE Forged UCA 3-5in UCA System w-DL 2-5 Resi Coilovers & Rear DL Shocks

Designed for the value minded enthusiast, the 4'' Budget System for 2007-13 GM C/K1500's provides a mild lift height with a supple ride for use with 33'' tall tires. Fabtech's replacement DOM upper tubular control arms feature heavy duty extended range ball joints that provide additional strength to the front suspension. The new ball joints provide unrestricted movement throughout the suspension travel range for smooth operation. The front differential housing is relocated to keep CV angles proper with the new ride height while a 1/4'' thick steel skid plate protects the front diff. The rear lift comes from a 1 1/2'' lift block and u bolt system. The 4'' Budget is available with two shock configurations. One utilizes the stock front Coilover shocks with upper spacers along and rear Performance Shocks. The second option for increased damping is the high end Dirt Logic 2.5 Coilovers for the front and Dirt Logic 2.25 shocks on the rear.

The 4 Budget System utilizes the factory front coil springs with a steel upper spacer providing 4 of lift. Radius Arm drop brackets retain the factory arms with correct caster setting for the increase ride height. System includes a Trac Bar relocation bracket that has been designed to center the axle under the vehicle and still works properly with the factory Pitman Arm. This eliminates the need to replace the Pitman Arm resulting in a lower cost and faster installation time. Rear lift is accomplished with lift blocks and extended length u-bolts.

TIRE SIZE - 33/12.50R17 WHEEL - 17X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 275/65R18 WHEEL - 18X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 295/55R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING

Fabtech 07-18 GM K1500 w/OE Forged UCA 3.5in UCA System w/DL 2.5 Resi Coilovers & Rear DL Shocks

4IN. BUDGET SYS W/DLSS RESI 2.5 C/OS/RR DLSS 2007-15 GM K1500 W/STEEL SUSP

3.5" BUDGET SYS W/ DL 2.5 & 2. 07-18 GM K1500 P/U W/ OE FORG STL UCA

4in. BUDGET SYS W/DL 2.5/2.25 07-18 GM K1500 P/U W/OE FORG STL UCA

3.5" BUDGET SYS W/ D
