Designed for the value minded enthusiast, the 4" Budget System for 2007-13 GM C/K1500's provides a mild lift height with a supple ride for use with 33" tall tires. Fabtech's replacement DOM upper tubular control arms feature heavy duty extended range ball joints that provide additional strength to the front suspension. The new ball joints provide unrestricted movement throughout the suspension travel range for smooth operation. The front differential housing is relocated to keep CV angles proper with the new ride height while a 1/4" thick steel skid plate protects the front diff. The rear lift comes from a 1 1/2" lift block and u bolt system. The 4" Budget System is available with two shock configurations. One utilizes the stock front Coilover shocks with upper spacers along and rear Performance Shocks. The second option for increased damping is the high end Dirt Logic 2.5 Coilovers for the front and Dirt Logic 2.25 shocks on the rear.
Designed for the value minded enthusiast, the 4 Budget System for 2007-13 GM C/K1500s provides a mild lift height with a supple ride for use with 33 tall tires. Fabtechs replacement DOM upper tubular control arms feature heavy duty extended range ball joints that provide additional strength to the front suspension. The new ball joints provide unrestricted movement throughout the suspension travel range for smooth operation. The front differential housing is relocated to keep CV angles proper with the new ride height while a 1/ 4 thick steel skid plate protects the front diff. The rear lift comes from a 1 1/2 lift block and u bolt system. The 4 Budget System is available with two shock configurations. One utilizes the stock front Coilover shocks with upper spacers along and rear Performance Shocks. The second option for increased damping is the high end Dirt Logic 2.5 Coilovers for the front and Dirt Logic 2.25 shocks on the rear.
TIRE SIZE - 33/12.50R17 WHEEL - 17X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 275/65R18 WHEEL - 18X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 295/55R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; 1. WILL NOT FIT MODELS WITH FACTORY AUTORIDE SHOCKS.; 8. WILL NOT FIT ALL WHEEL DRIVE MODELS.; 14. CAN NOT USE OEM WHEEL AND TIRE.; 17. DOES NOT FIT STANDARD CAB.; 128. FITS MODELS WITH FACTORY FORGED BLACK STEEL UPPER CONTROL ARM.

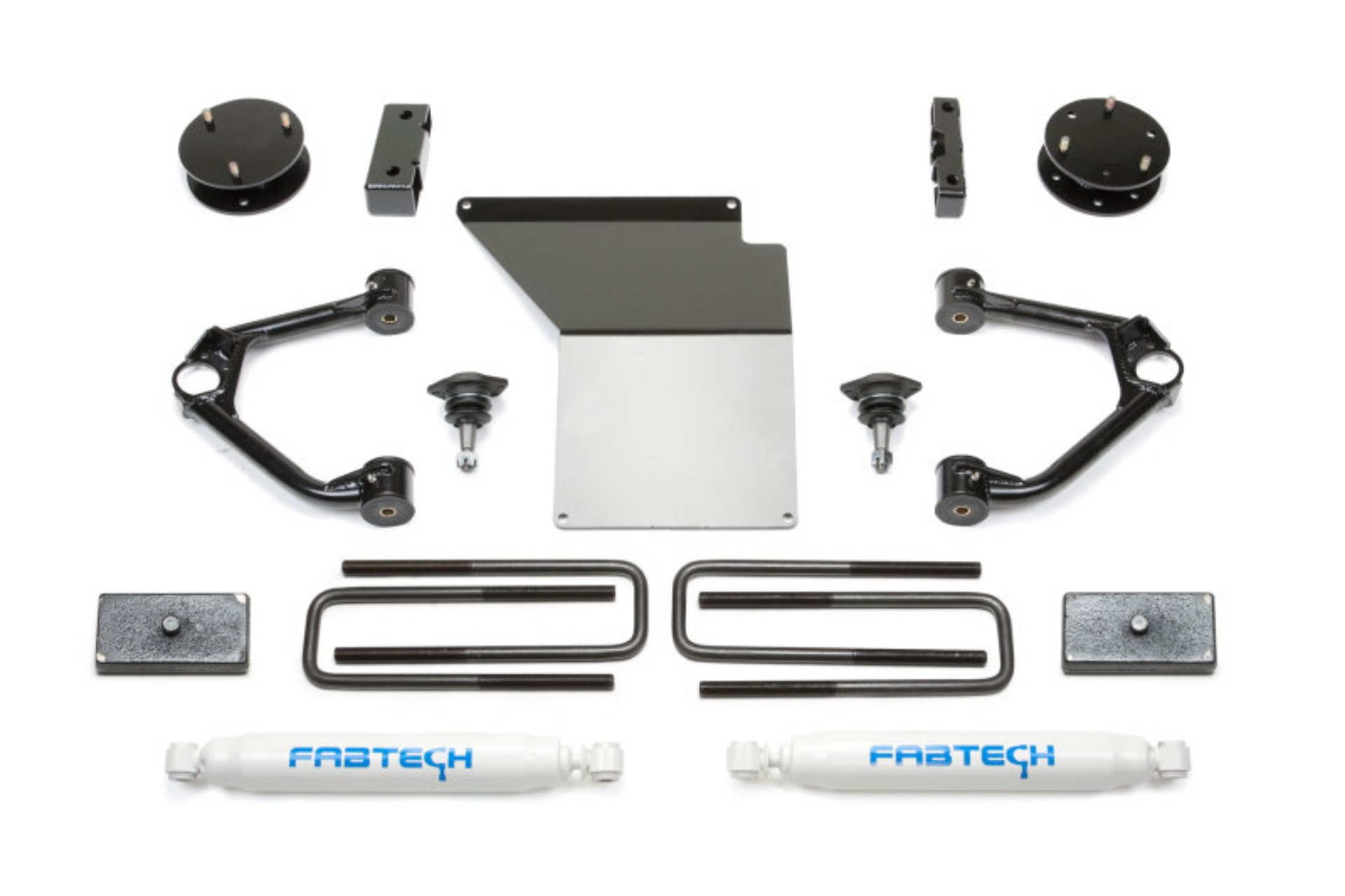

Fabtech 07-18 GM K1500 w/OE Forged UCA 3.5in Budget UCA System w/Rear Perf. Shocks
3.5" BUDGET SYS W/ PERF SHOCKS 07-18 GM K1500 P/U W/ OE FORG STL UCA
4in. BUDGET SYS W/PERF SHOCKS 07-18 GM K1500 P/U W/OE FORG STL UCA
4in. Budget System w/Performance Shocks
3.5" BUDGET SYS W/ P
3.5in. BUDGET SYS W/
Suspension Lift Kit
