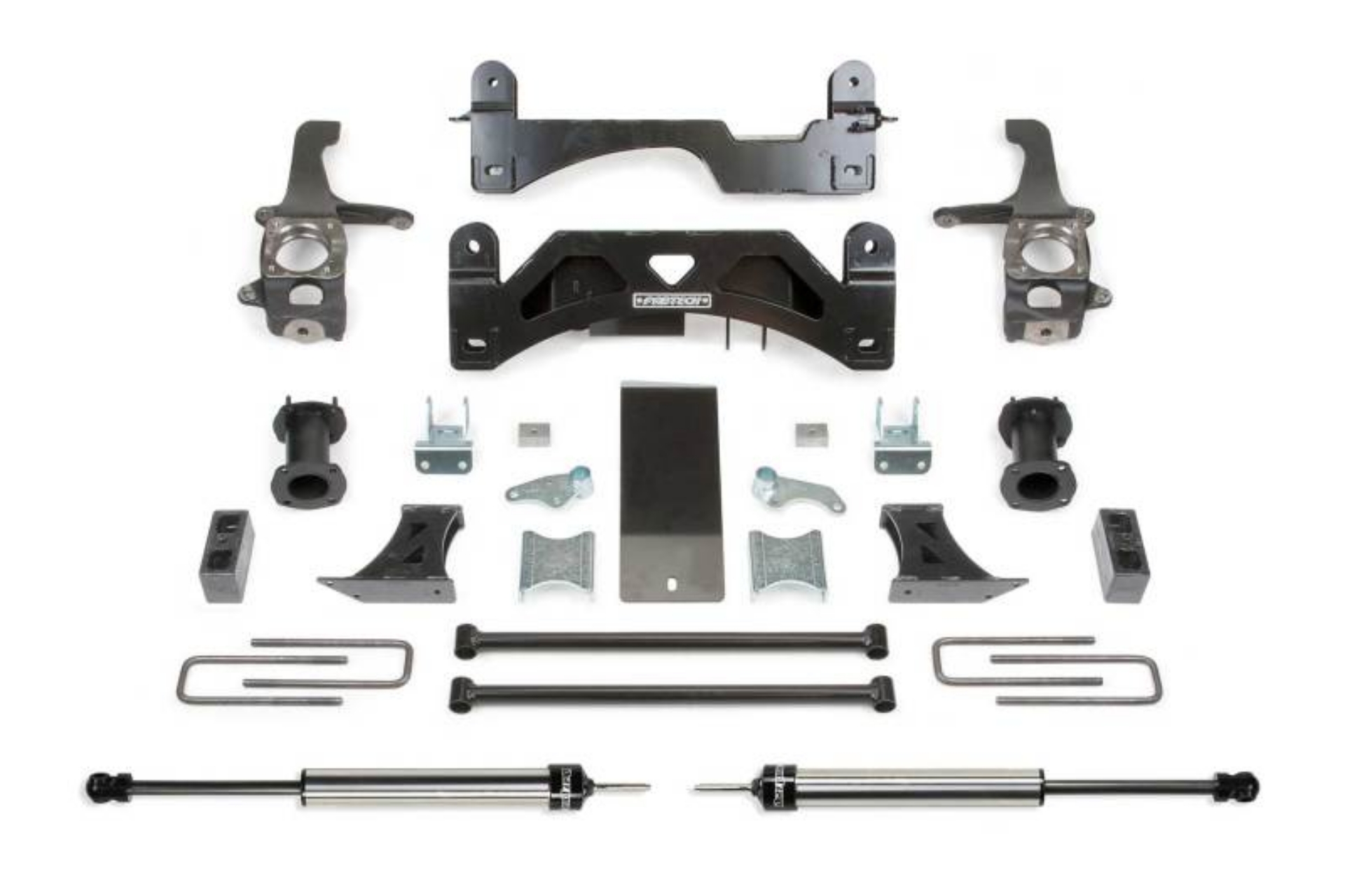

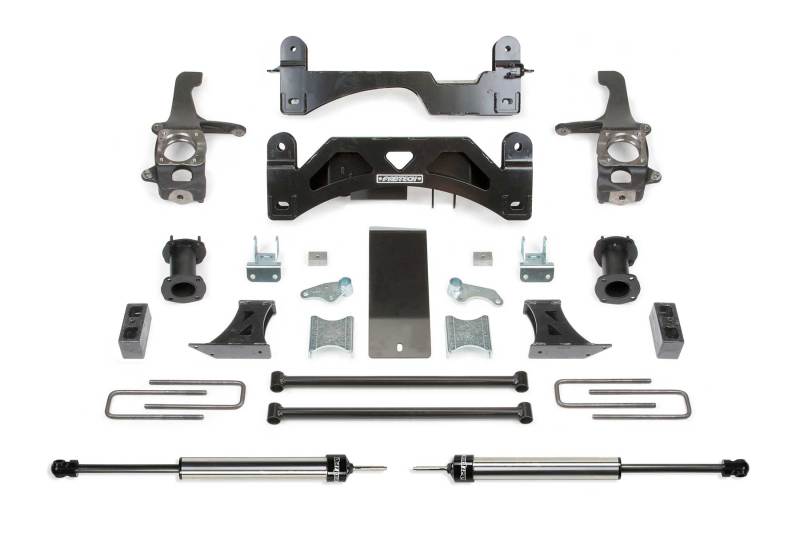

Our Tundra systems feature extended length ductile iron steering knuckles that have been designed to operate within the factory steering geometry. This geometry provides proper turning radius with oversized tires and wheels. The factory lower control arms are relocated with high arched 1/4in thick steel crossmembers with an integrated differential skid plate for protection against offroad obstacles. The factory front sway bar is retained and utilizes sway bar drops. The Basic system features a heavy duty shock spacer system that retains the stock coilover shocks without disassembly for a factory like ride. This system utilizes a 3in block and u-bolt system for rear lift. Includes rear 2.25 Dirt Logic Stainless Steel shocks.
TIRE SIZE - 35/12.50R18 WHEEL - 18X9 W/5 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 WHEEL - 20X9 W/5 1/2" BS W/MINOR TRIMMING; 14. CAN NOT USE OEM WHEEL AND TIRE.; 69. DOUBLE CAB & CREWMAX 5.7L W/ AUTO TRANS ONLY.; 114. WILL NOT ALLOW USE OF 17? WHEELS.; 168. WILL NOT FIT TRD PRO MODELS
Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.
Fabtech 07-15 Toyota Tundra 2WD/4WD 6in Basic System w/Coilover Spacers & Rear DL Shocks
6" BASIC SYS W/C/O SPACERS & RR DLSS 07-15 TOYOTA TUNDRA 2/4WD
6in. BASIC SYS W/C/O SPACERS/RR DLSS 07-14 TOYOTA TUNDRA 2/4WD
6in. BASIC SYS W/C/O SPACERS/RR DLSS 07-15 TOYOTA TUNDRA 2/4WD
6" BASIC SYS W/C/O S
Suspension Lift Kit
LftKt-Suspw/Shock
