Arms eliminate upper ball joint w/ super strong 1" ID Stainless American Uniball - Additional caster is built into Arms for greater align ability to help with problematic leveling kit alignments - Allows for increased wheel travel when used with Dirt Logic 2.5 Coilover shocks - Chromoly tubing reduces flex found in stock arms for more positive road feel - 17-4 Stainless Steel Heat treated Uniball pin fits into factory ball joint taper without modification to the spindle for easy return to stock feature - Arms are direct replacements for factory arms on suspensions that require additional strength and align ability. Material Construction Specs. - Built with same materials as found on Trophy Trucks - .120" Wall 4130 Chromoly Tubing. 1.50" OD. - .250" wall DOM Bushing Barrels - 1" ID Stainless Steel American Uniball - 17-4 Stainless Misalignments - Heat Treated 17-4 Stainless Steel Tapered Uniball Pins.
Arms eliminate upper ball join w/super strong 1 ID stainless American uniball. Additional caster is built into arms for greater align ability to help with problematic leveling kit alignments. Allows for increased wheel travel when used w/Dirt Logic 2.5 coilover shocks. Chromoly tubing reduces flex found in stock arms for more positive road feel. 4340 heat treated uniball pin fits into factory ball join taper without modification to the spindle for easy return to stock feature. Arms are direct replacements for factory arms on suspensions that require additional strength and align ability.
TIRE SIZE - 275/65R18 WHEEL - 18X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 285/55R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/70R17 WHEEL - 17X8 W/4 1/2" BS W/MINOR TRIMMING; 1. WILL NOT FIT MODELS WITH FACTORY AUTORIDE SHOCKS.; 8. WILL NOT FIT ALL WHEEL DRIVE MODELS.; 14. CAN NOT USE OEM WHEEL AND TIRE.; 17. DOES NOT FIT STANDARD CAB.; 128. FITS MODELS WITH FACTORY FORGED BLACK STEEL UPPER CONTROL ARM.

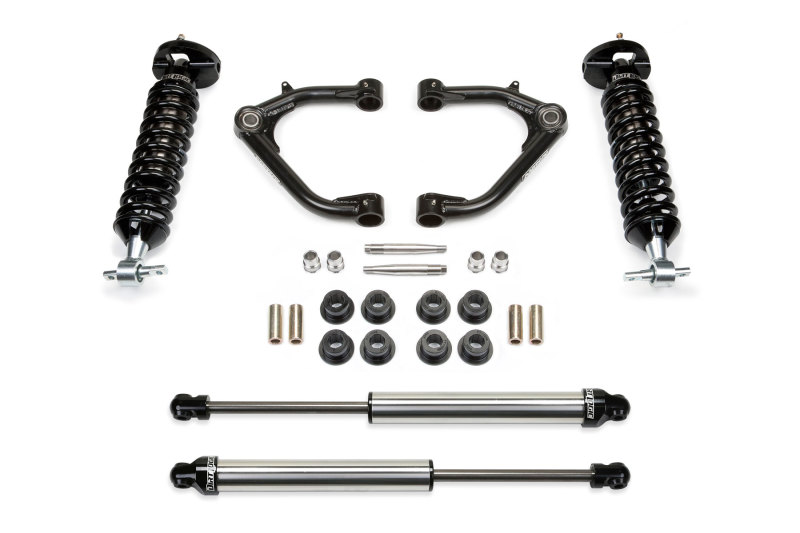

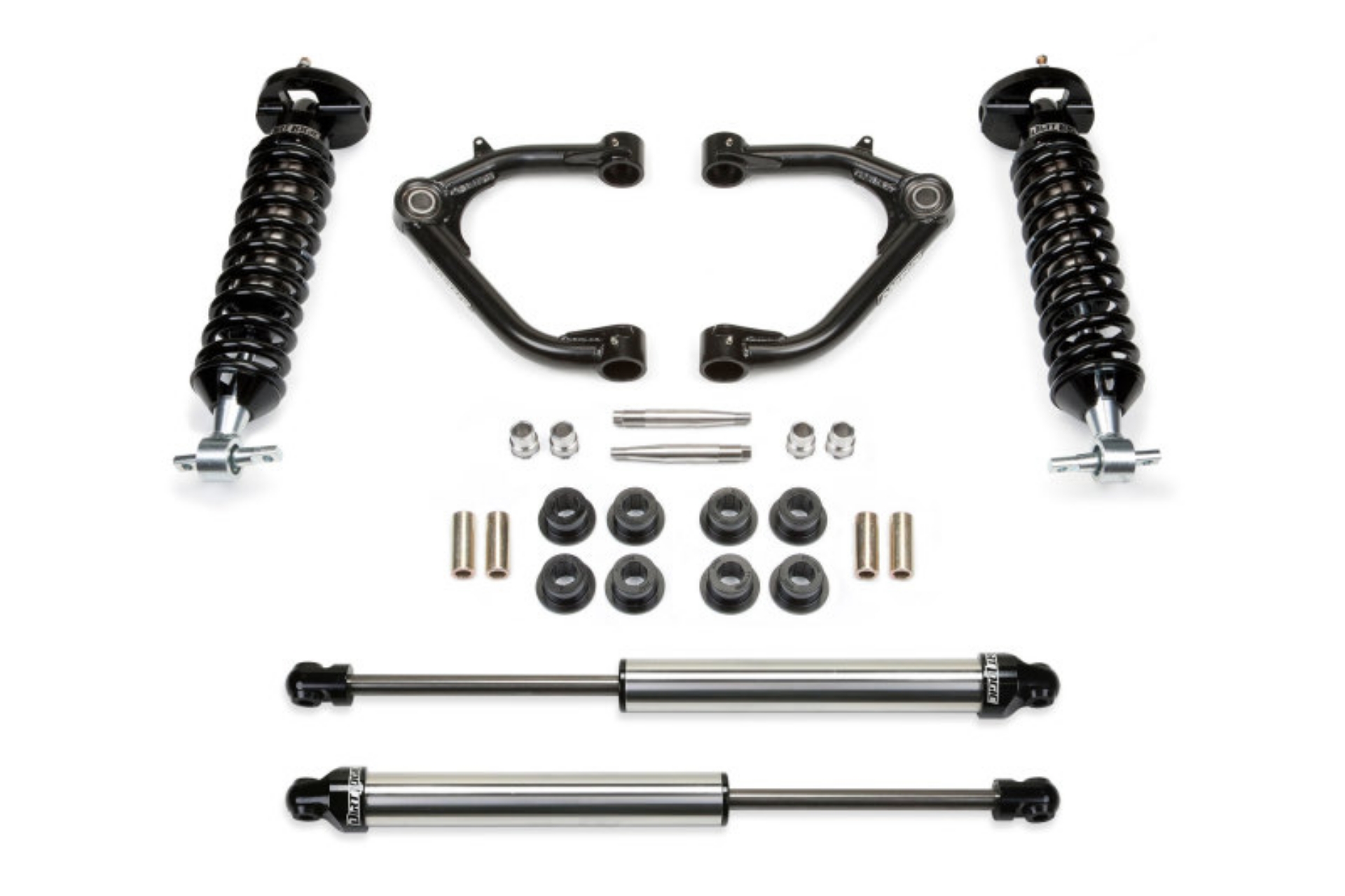

Fabtech 07-18 GM C/K1500 w/OE Forged UCA 2in UCA System w/DL 2.5 Coilovers & Rear DL Shocks
2" UCA KIT W/ DL 2.5 & 2.25 07-13 GM C/K1500 P/U & 14-18 C/K1500 P/U W/ OE FORG STL UCA
2in. UCA KIT W/DL 2.5/2.25 07-13 GM C/K1500 P/U/14-18 C/K1500 P/U W/OE FORG STL UCA
2in. UCA KIT W/DLSS 2.5 C/Os/RR DLSS 07-13 GM C/K1500/2014-15 C/K1500 STEEL SUSP
2" UCA KIT W/ DL 2.5 & 2.25 07-13 GM C/K1500 P/U & 14-18 C/K1500 P/U W/ OE FORG
2" UCA KIT W/ DL 2.5
Suspension Lift Kit
LftKt-Suspw/Shock
