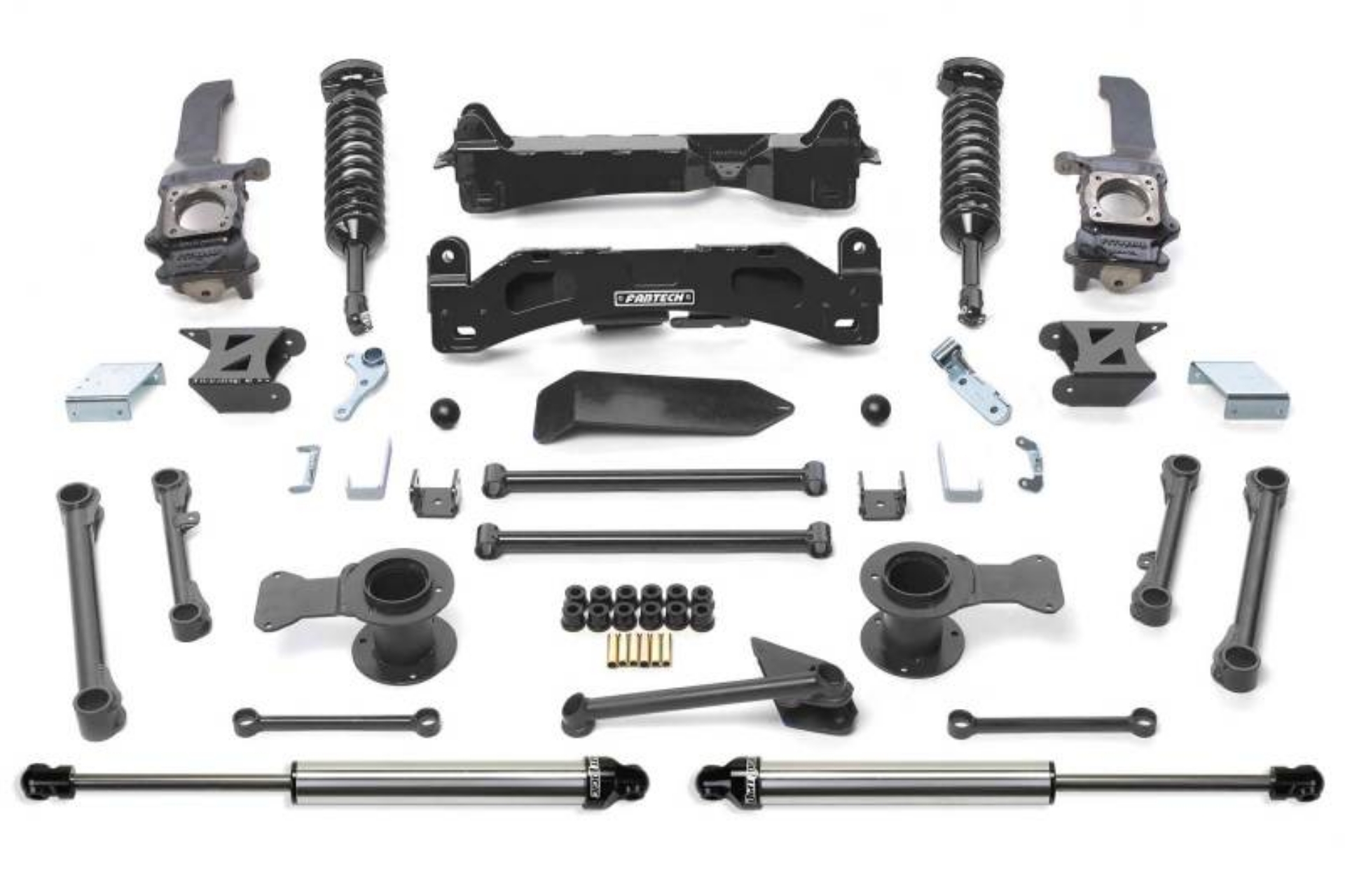

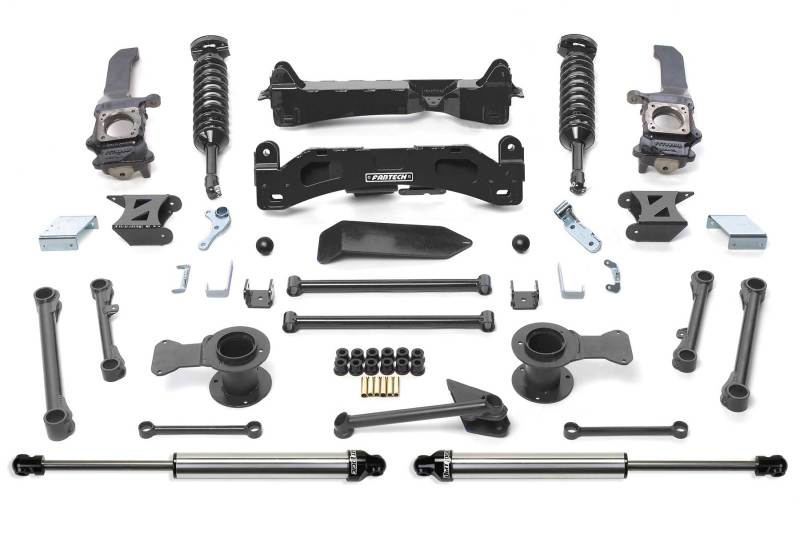

Fabtech 06-09 Toyota FJ 4WD 6in Perf Sys w-Dlss 2-5C-Os & Rr Dlss

Fabtech's FJ system features extended length steering knuckles attaching to one piece lower control arm crossmembers for a full 6 inches of lift to clear 35in tires. Front lower crossmembers feature adjustable alignment cams along with an integrated 1/4'' thick steel differential skid plate. The Performance system includes Fabtech's Dirt Logic 2.5 Stainless Steel Coilover shocks, replacing the stock front strut assemblies. The rear suspension system includes tubular upper and lower link arms, utilizing the stock rear coil springs for a supple highway ride with excellent offroad articulation. Installation does not require relocation of the Rack and Pinion or disassembly of the front strut assemblies. The stock front and rear driveshafts are retained due to Fabtech's precise suspension geometry. Includes rear 2.25 Dirt Logic Stainless Steel shocks.

Fabtechs development capabilities are second to none with over 20 years of experience in aftermarket suspension design. State of the art software; fabrication equipment along with our seasoned engineers and fabricators allow the company to develop products that are constantly on the cutting edge. Fabtech has received numerous awards for our designs that continue to lead the market.

TIRE SIZE - 35/12.50R17 WHEEL - 17X8 W/4 5/8" BS W/MINOR TRIMMING; 68. KIT DOES NOT FIT MODELS WITH FACTORY ELECTRONIC CONTROLLED SHOCKS.

Fabtech 06-09 Toyota FJ 4WD 6in Perf. System w/DL 2.5 Coilovers & Rear DL Shocks

6" PERF SYS W/DLSS 2.5C/Os & RR DLSS 06-09 TOYOTA FJ 4WD

6in. PERF SYS W/DLSS 2.5C/Os/RR DLSS 06-09 TOYOTA FJ 4WD

6" PERF SYS W/DLSS 2

Suspension Lift Kit

LftKt-Suspw/Shock
