Fabtech's Uniball Upper Control Arms are designed for severe duty use with stock and most aftermarket suspension systems. These Arms replace the thin stock upper control arms that are prone to flex and ball joint failure with heavy duty construction designed for aggressive offroad driving. The Dirt Logic 2.50 Coilover front shocks provide superior damping for rugged offroad use with additional wheel travel when combined with the Uniball Upper Control Arms. Front sway bar relocation bracket are included to provide clearance for the large Dirt Logic 2.5 Coilover shocks. The rear of the vehicle receives Dirt Logic 2.25 reservoir shocks. Reservoir shocks are required so that there is no loss of suspension travel due to the large component sizes of the Dirt Logic 2.25 shocks. This high end system will provide outstanding suspension performance with minimal lift for clearance of 33'' tall tires. Form and Function - Replaces upper ball joints with 1'' FK Stainless PTFE Uniballs - Heavy duty upgrade for stock and aftermarket suspensions - No modification to spindle required for installation - Includes Arms, Uniballs, Pins, Misalignments Dirt Logic Shocks - UCA Tube Specs - .120'' Wall 4130 Chromoly. 1.25'' OD
Arms eliminate upper ball join w/super strong 1 ID stainless American uniball. Additional caster is built into arms for greater align ability to help with problematic leveling kit alignments. Allows for increased wheel travel when used w/Dirt Logic 2.5 coilover shocks. Chromoly tubing reduces flex found in stock arms for more positive road feel. 4340 heat treated uniball pin fits into factory ball join taper without modification to the spindle for easy return to stock feature. Arms are direct replacements for factory arms on suspensions that require additional strength and align ability.
TIRE SIZE - 33/12.50R17 WHEEL - 17X8 W/4 5/8" BS W/MINOR TRIMMING; TIRE SIZE - 275/60R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 275/70R18 WHEEL - 18X9 W/4 3/4" BS W/MINOR TRIMMING
Uniball Control Arm Lift System; 3 in. Lift; Incl. Uniball Upper Control Arms System; Front Dirt Logic SS 2.5 Resi Coilovers; Rear Dirt Logic SS Resi Shocks;

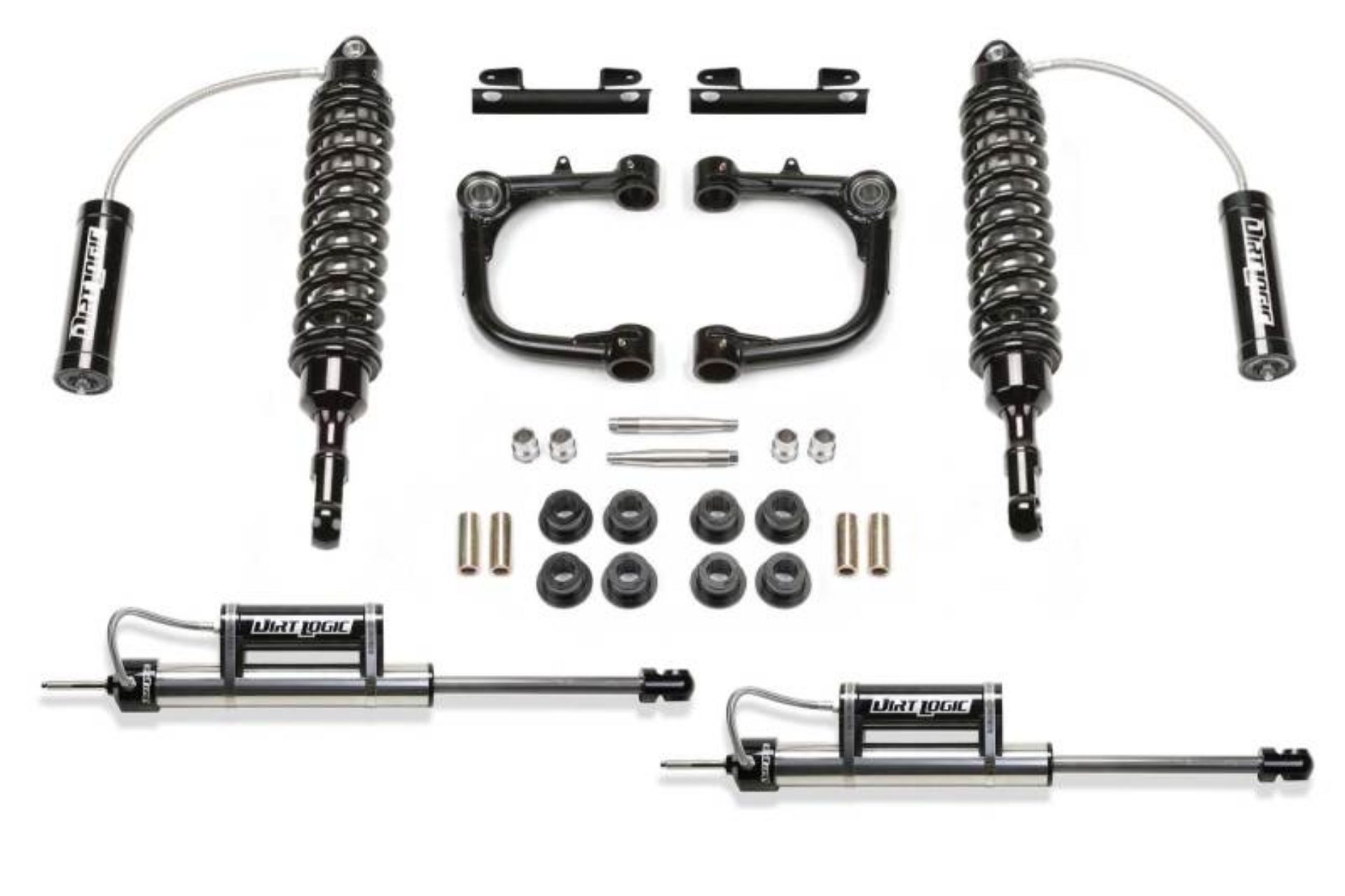

Fabtech 06-09 Toyota FJ 4WD 3in UCA System w/DL 2.5 Resi Coilovers & Rear DL Resi Shocks
3" UCA SYS W/DLSS 2.5 C/O RESI & RR DLSS RESI 06-09 TOYOTA FJ 4WD
Uniball Control Arm Lift System
3" UCA SYS W/DLSS 2.
Suspension Lift Kit
LftKt-Suspw/Shock
