Arms eliminate upper ball joint w/ super strong 1'' ID Stainless American Uniball - Additional caster is built into Arms for greater align ability to help with problematic leveling kit alignments - Allows for increased wheel travel when used with Dirt Logic 2.5 Coilover shocks - Chromoly tubing reduces flex found in stock arms for more positive road feel - 17-4 Stainless Steel Heat treated Uniball pin fits into factory ball joint taper without modification to the spindle for easy return to stock feature - Arms are direct replacements for factory arms on suspensions that require additional strength and align ability. Material Construction Specs - Built with same materials as found on Trophy Trucks - .120'' Wall 4130 Chromoly Tubing. 1.25'' OD. - .250'' wall DOM Bushing Barrels - 1'' ID Stainless Steel American Uniball - 17-4 Stainless Misalignments - Heat Treated 17-4 Stainless Steel Tapered Uniball Pins
Arms eliminate upper ball join w/super strong 1 ID stainless American uniball. Additional caster is built into arms for greater align ability to help with problematic leveling kit alignments. Allows for increased wheel travel when used w/Dirt Logic 2.5 coilover shocks. Chromoly tubing reduces flex found in stock arms for more positive road feel. 4340 heat treated uniball pin fits into factory ball join taper without modification to the spindle for easy return to stock feature. Arms are direct replacements for factory arms on suspensions that require additional strength and align ability.
TIRE SIZE - 33/12.50R17 WHEEL - 17X8 W/4 5/8" BS W/MINOR TRIMMING; TIRE SIZE - 275/60R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 275/70R18 WHEEL - 18X9 W/4 3/4" BS W/MINOR TRIMMING
Uniball Control Arm Lift System; 3 in. Lift; Incl. Uniball Upper Control Arms System; Front Dirt Logic SS 2.5 Resi Coilovers; Rear Dirt Logic SS Resi Shocks;

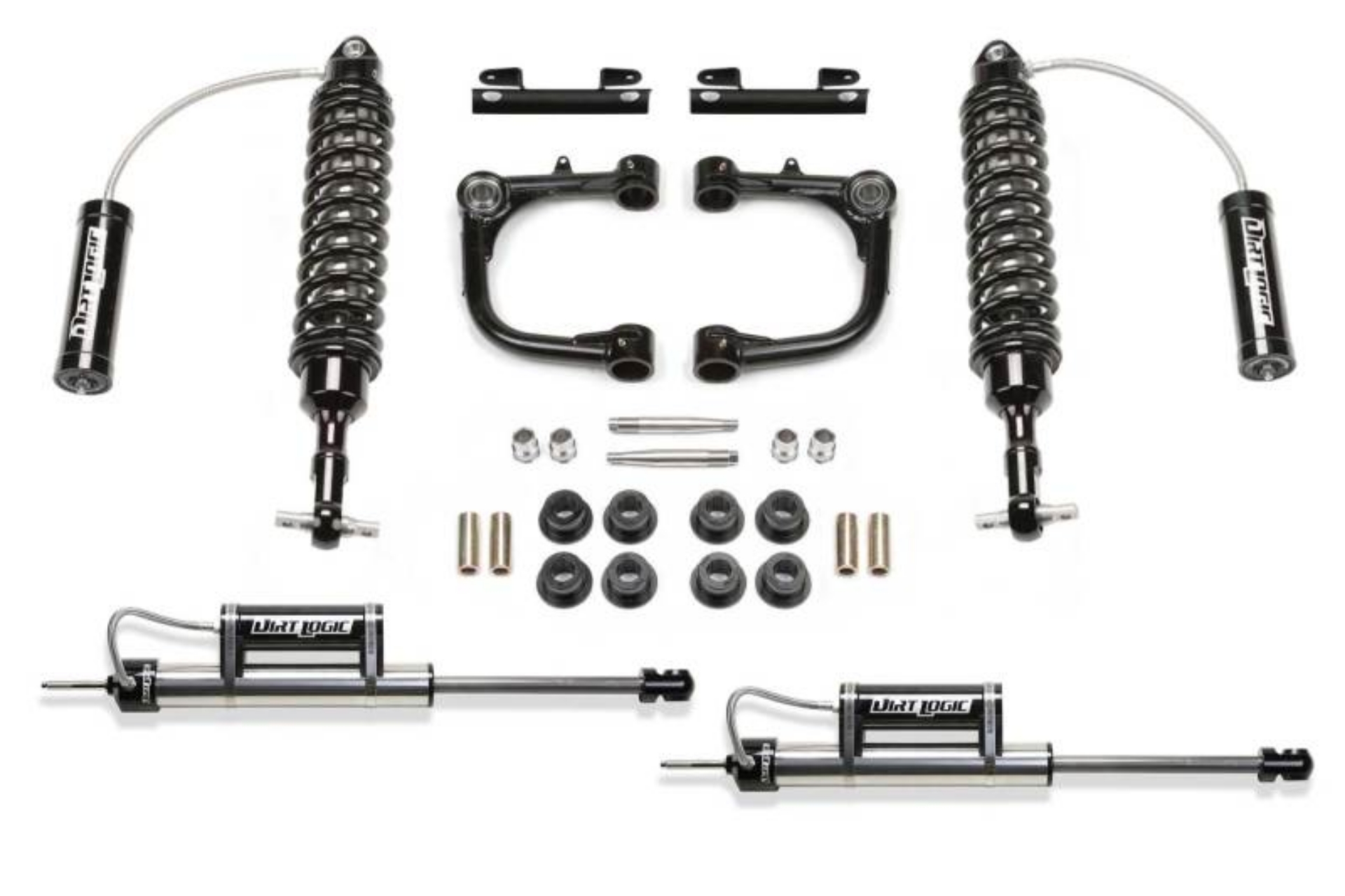

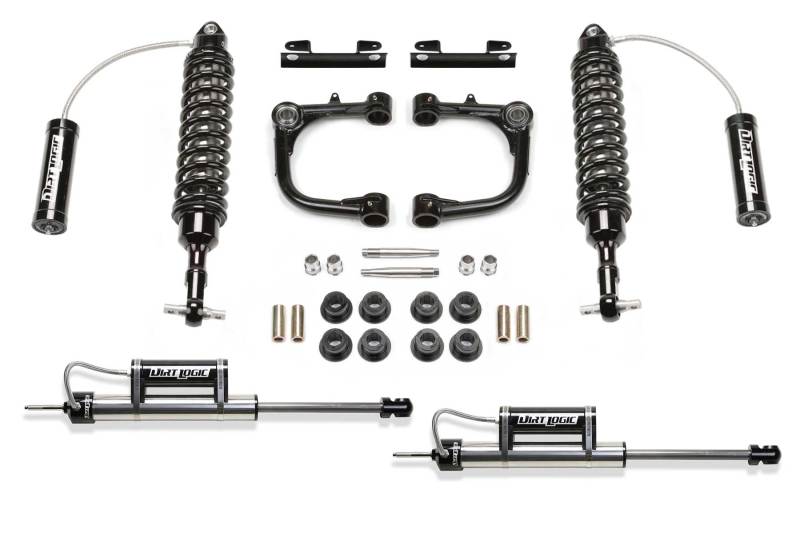

Fabtech 05-14 Toyota Tacoma 2WD/4WD 6 Lug 3in UCA System w/DL 2.5 Resi Coilovers & Rear DL Shocks
3" UCA SYS W/DLSS 2.5 C/O RESI & RR DLSS RESI 05-14 TOYOTA TACOMA 2WD/4WD 6 LUG MODELS
3" UCA SYS W/DLSS 2.5 C/O RESI & RR DLSS RESI 05-14 TOYOTA TACOMA 2WD/4WD 6 LUG
Uniball Control Arm Lift System
3" UCA SYS W/DLSS 2.
Suspension Lift Kit
LftKt-Suspw/Shock
