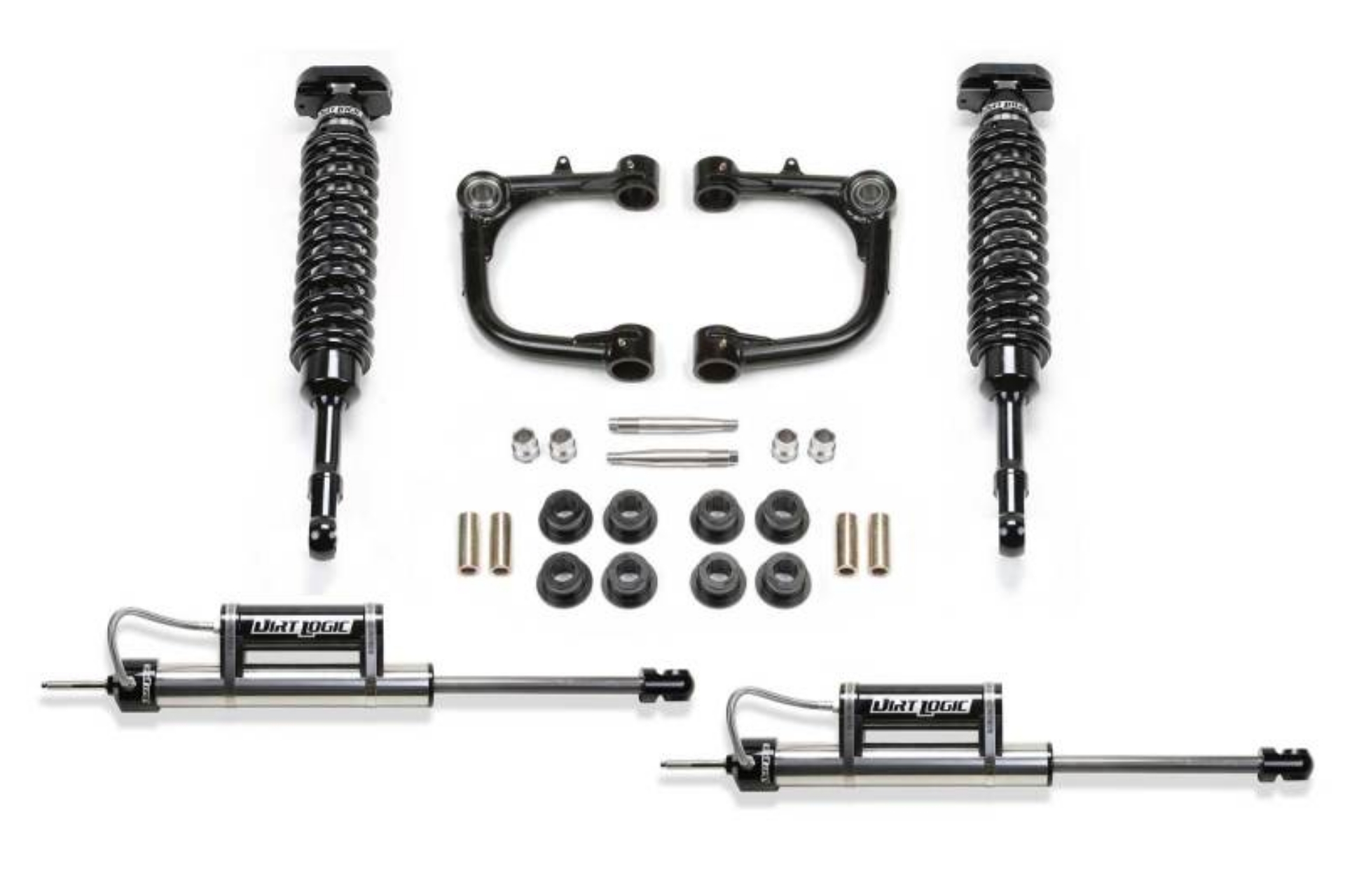

Fabtech 05-14 Toyota Tacoma 2WD-4WD 3in UCA & Dlss 2-5 C-O Sys w-Dlss Resi Rr Shks

These arms eliminate upper ball joints w/ super strong 1'' ID Stainless American Uniballs. Additional caster is built into Arms for greater align ability to help with problematic leveling kit alignments. Allows for increased wheel travel when used with Dirt Logic 2.5 Stainless Steel Coilover shocks. Chromoly tubing reduces flex found in stock arms for more positive road feel. 4340 Heat treated Uniball pin fits into factory ball joint taper without modification to the spindle for easy return to stock feature. Arms are direct replacements for factory arms on suspensions that require additional strength and align ability. Material Construction Specs. Built with same materials as found on Trophy Trucks. .120'' Wall 4130 Chromoly Tubing. 1.25'' OD. .250'' wall DOM Bushing Barrels. 1'' ID Stainless Steel American Uniball. 17-4 Stainless Misalignments. Heat Treated 4340 Tapered Uniball Pins. Includes rear 2.25 Dirt Logic Stainless Steel reservior shocks.

Arms eliminate upper ball joint w/ super strong 1 ID Stainless American Uniball. Additional caster is built into Arms for greater align ability to help with problematic leveling kit alignments. Allows for increased wheel travel when used with Dirt Logic 2.5 Coilover shocks. Chromoly tubing reduces flex found in stock arms for more positive road feel. 17-4 Stainless Steel Heat treated Uniball pin fits into factory ball joint taper without modification to the spindle for easy return to stock feature. Arms are direct replacements for factory arms on suspensions that require additional strength and align ability

TIRE SIZE - 33/12.50R17 WHEEL - 17X8 W/4 5/8" BS W/MINOR TRIMMING; TIRE SIZE - 275/60R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 275/70R18 WHEEL - 18X9 W/4 3/4" BS W/MINOR TRIMMING

Uniball Control Arm Lift System; 3 in. Lift; Incl. Uniball Upper Control Arms; Front Dirt Logic 2.5 Coilovers; Rear Dirt Logic 2.25 Resi;

Fabtech 05-14 Toyota Tacoma 2WD/4WD 3in UCA System w/DL 2.5 Coilovers & Rear DL Resi Shocks

3" UCA & DLSS 2.5 C/O SYS W/ DLSS RESI RR SHKS 05-14 TOYOTA TACOMA 2WD/4WD

Uniball Control Arm Lift System

3" UCA & DLSS 2.5 C/

Suspension Lift Kit

LftKt-Suspw/Shock
