Obtain increased wheel travel with a mild lift height with this heavy duty Upper Control Arm systems. The tubular Upper Control Arms feature 1.25? OD, .120? wall thick chromoly tube construction with 1? diameter Stainless Steel Uniballs that attach to the factory spindle without drilling. The replacement UCA?s have been designed to work in conjunction with Fabtech?s Dirt Logic 2.5 Coilover shocks providing 10? of wheel travel for a complete front suspension system upgrade. A rear three leaf spring pack enhances the factory leaf springs by eliminating the stiff lower overload leaf. This allows for more flexibility and travel while enhancing the ride quality. Front stainless steel Dirt Logic 2.5 Coilovers with Eibach springs provide 10? of wheel travel for aggressive offroad use. The rear Dirt Logic 2.25 shocks will also provide 10? of travel due the remote reservoir allowing for the full stroke of the shock.
Obtain increased wheel travel and mild lift height with this heavy duty Upper Control Arm system. The tubular Upper Control Arms feature 1.25 OD. .120 wall thick chromoly tube construction with 1 diameter Stainless Steel Uniballs that attach to the factory spindle without drilling. These heavy duty UCAs have been designed to work in conjunction with Fabtechs legendary Dirt Logic 2.5 Coilover shocks for a complete front suspension system upgrade. The F150s offroad suspension performance will be greatly enhanced due to the extensive ride tuning of the stainless steel Dirt Logic 2.5 Coilovers and rear Dirt Logic 2.25s.
TIRE SIZE - 33/12.50R17 WHEEL - 17X8 W/4 5/8" BS W/MINOR TRIMMING; TIRE SIZE - 275/70R18 WHEEL - 18X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 275/60R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; 0. NO FOOTNOTES

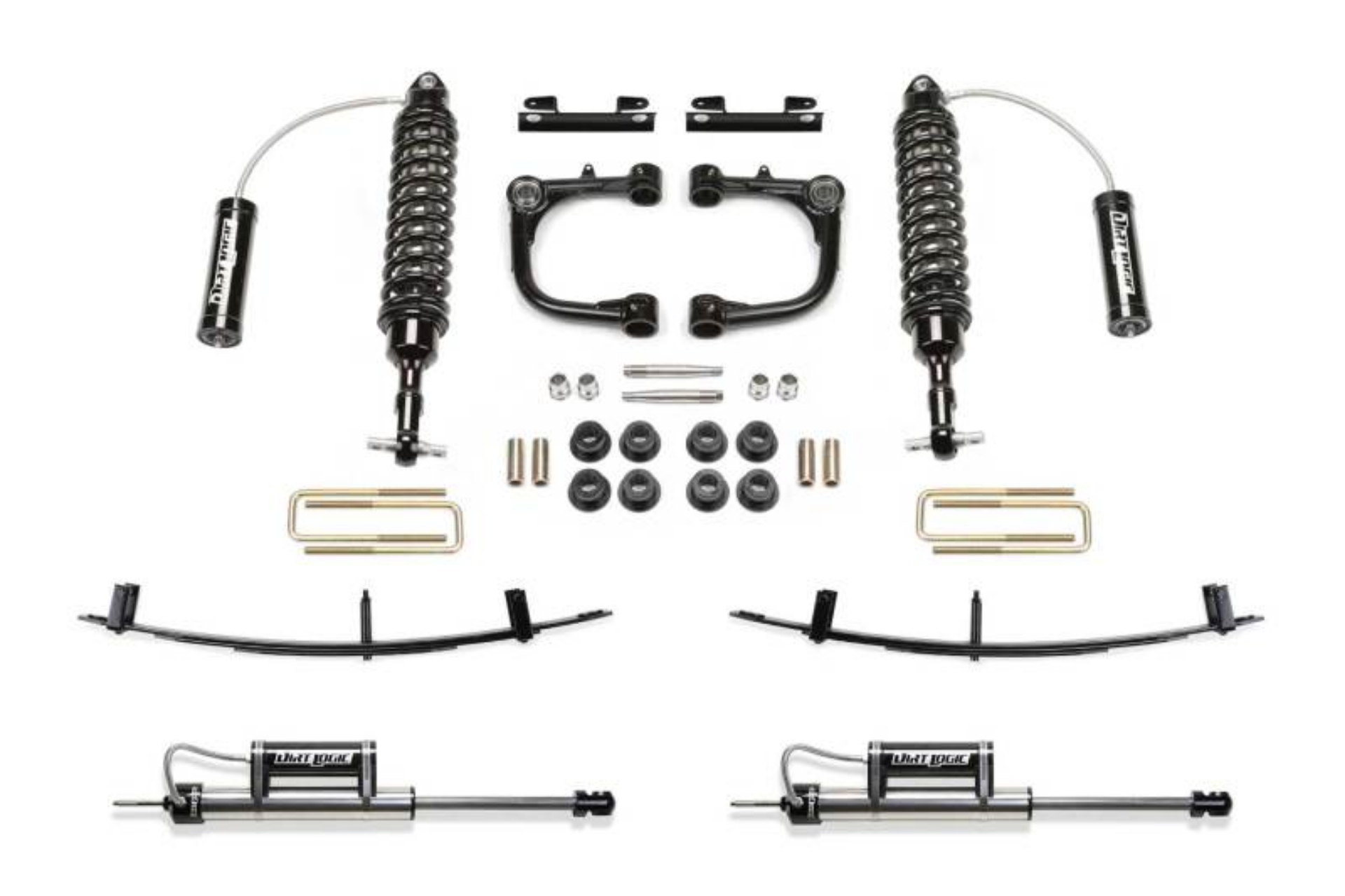

Fabtech 05-14 Toyota Tacoma 2WD/4WD 6 Lug 3in UCA System w/DL 2.5 Resi Coilovers & Rear DL Shocks
3" UCA SYS W/ DL 2.5 C/O RESI & RR DL RESI & RR LEAF PACK 05-14 TOY TACOMA 2WD/4WD 6 LUG
3in. UCA SYS W/DL 2.5 C/O RESI/RR DL RESI/RR LEAF PACK 05-14 TOY TACOMA 2WD/4WD 6 LUG
3" UCA SYS W/ DL 2.5 C/O RESI & RR DL RESI & RR LEAF PACK 05-14 TOY TACOMA 2WD/4
Uniball UCA Lift System w/Shocks
3" UCA SYS W/ DL 2.5
Suspension Lift Kit
LftKt-Suspw/Shock
