Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front lift comes from our Dirt Logic 4.0 Stainless Steel Coilover Shock conversion. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift includes a block & u-bolt kit. Includes front and rear 2.25 Dirt Logic Stainless Steel shocks.
Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift options includes 6 replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, and a rear Block & U-bolt kit.
TIRE SIZE - 315/70R17 WHEEL - 17X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 325/65R18 WHEEL - 18X9.5 W/4 3/4" BS W/MINOR TRIMMING; 38. WILL NOT WORK ON MODELS WITH DIGITAL CLIMATE CONTROL.

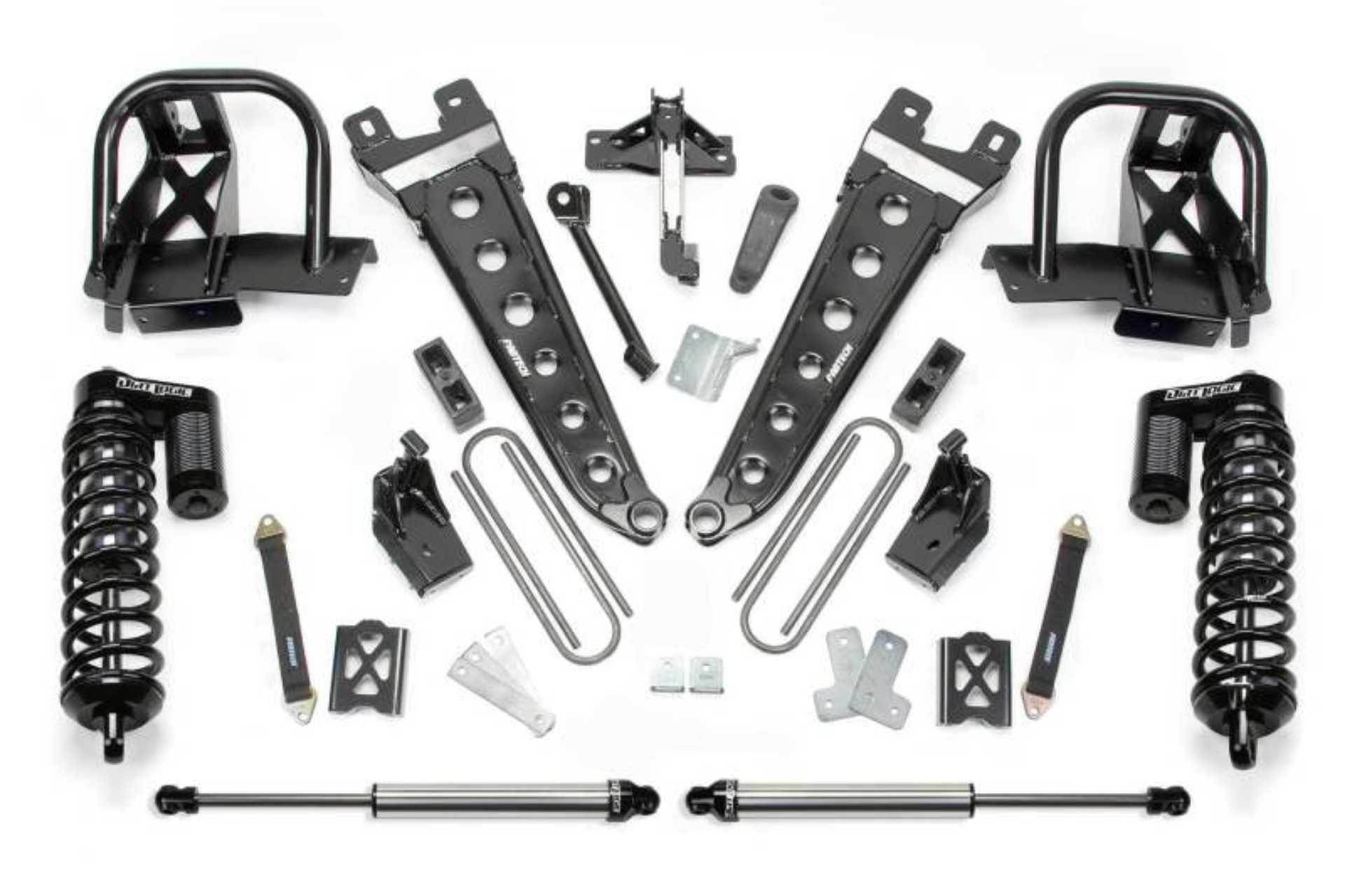

Fabtech 05-07 Ford F250 4WD w/o Overload 6in Radius Arm System w/DL 4.0 Coilovers & Rear DL Shocks
Radius Arm Lift System; w/DLSS Shocks; 6 in. Lift; w/o Factory Overload; 4.0 Coilovers;
6" RAD ARM SYS W/DLSS 4.0 C/O& RR DLSS 05-07 FORD F250 4WD W/O FACTORY OVERLOAD
Radius Arm Lift System
6" RAD ARM SYS W/DLS
Suspension Lift Kit
LftKt-Suspw/Shock
