The two primary functions of sway bars are to control body roll and to determine the understeer or oversteer behavior of a vehicle. Stock sway bars have low torsional spring rates because they are manufactured from small diameter bar stock or tubing. BMR Suspension?s SB044 S550 Mustang front sway bar was designed by factoring in the vehicle weight, application, motion ratio, coil spring rate, and adjustability requirements. Manufactured from heavy-wall 35mm DOM tubing, the SB044 is cold formed to better resist torsional fatigue and retain its "memory" far longer than the hot-formed bars used by many competitors. The sway bar is CNC-formed for exact manufacturing tolerances and repeatable high quality. Thrust washers are welded to the bar to locate the sway bar bushing mounts. This is critical as it properly locates the sway bar and prevents lateral movement during hard cornering maneuvers. The sway bar mounts to the car using polyurethane bushings. These bushings are molded from 95-durometer, low-deflection, polyurethane, and are internally fluted to keeps grease in the bushing. The billet aluminum sway bar mounting brackets minimize deflection. The sway bar is 3-way adjustable to tune the amount of torsional spring rate and to determine the handling characteristics (understeer/oversteer) of the vehicle.
Fits all S550 Mustangs;Designed for street performance, autocross, and road race applications;Dramatically reduces body roll;19%-55% increase in sway bar rate;Cold formed to better resist torsional fatigue;Manufactured from 35mm heavy-wall DOM tubing for increased strength;Three-way adjustable for street and track use ;Adjustability allows for fine-tuning of suspension;95-durometer, greasable polyurethane bushings;Zinc-plated inner sleeves;Billet aluminum, black anodized bushings saddles;Durable powdercoat finish;1-2 hour installation time;Proudly designed in the U.S.A.;Proudly made in the U.S.A.
BMR Suspension designed the SB044 sway bar kit for street performance, autocross, and road race applications.

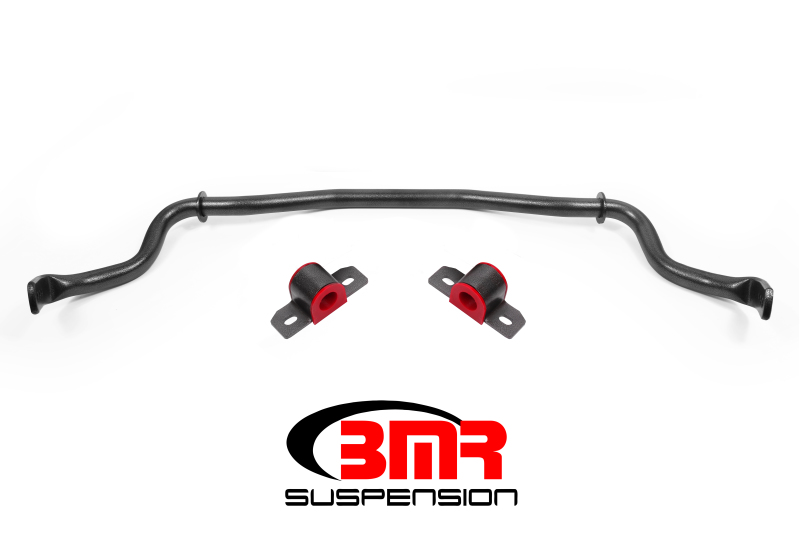

BMR 15-17 S550 Mustang Front Hollow 35mm 3-Hole Adj. Sway Bar Kit - Black Hammertone
Sway Bar Kit, Front, Hollow, 35mm, 3-hole Adjustable
Coil Spring / Tie Rod Sleeve / Stabilizer Bar Kit
BMR Suspension - SB044H
Sway Bar Kit
