With a .600" maximum lift, these Beehive Valve Springs were designed for Hydraulic Roller cams. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive cam profiles.
1.075"/1.310" OD, .650"/.885 ID Beehive valve spring ; 125 lbs 1.800", 367 lbs 1.150"; Originally designed for LS engine applications but will work in many others; .600" maximum lift;
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit

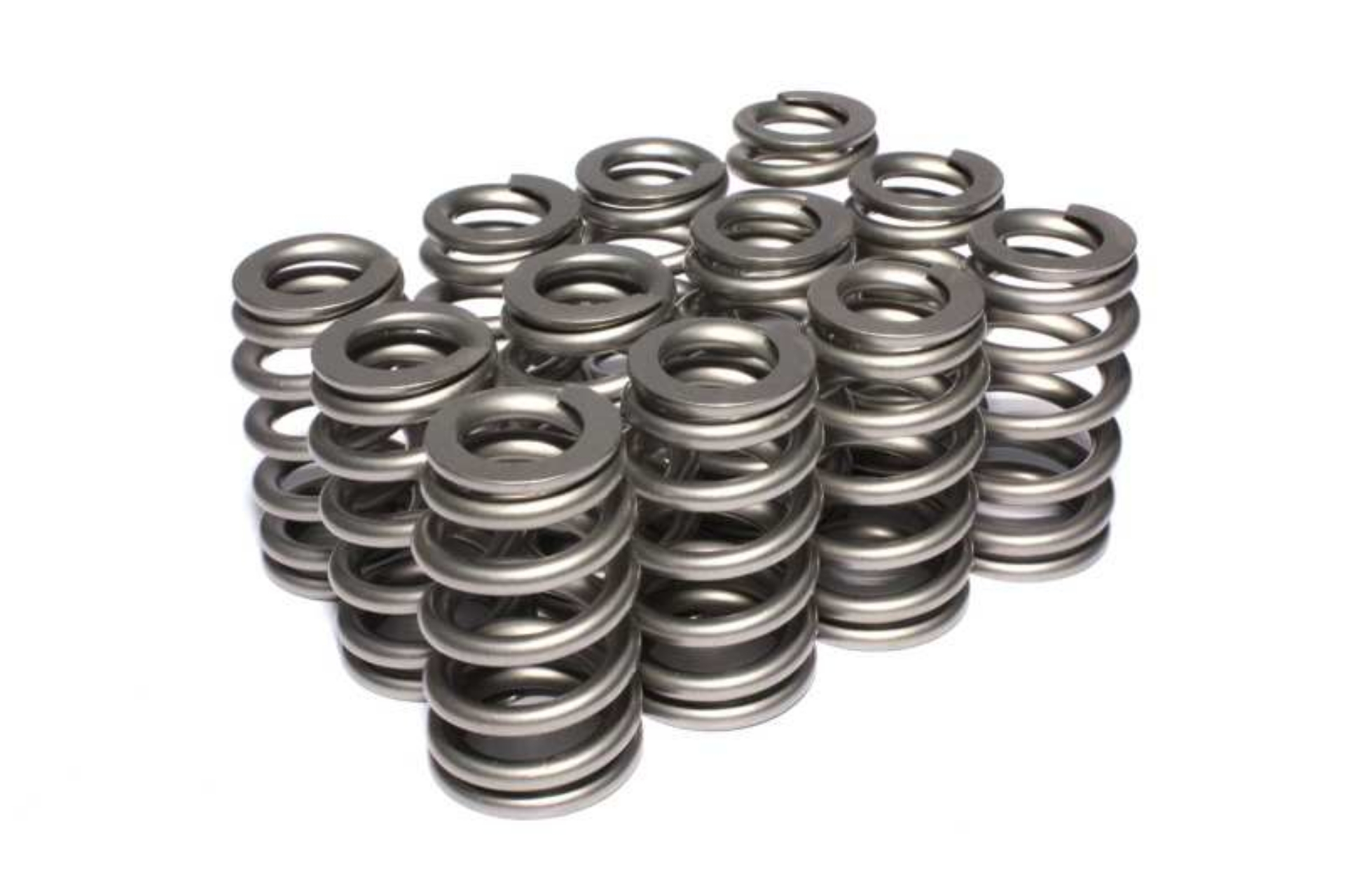

COMP Cams Beehive Valve Springs, 1.075"/1.310" OD, 125 lbs 1.800", 367 lbs 1.150", Set of 12
Performance Street 1.310" OD Beehive Spring; 1.800" Installed Height; 12 Springs
COMP Cams Valve Springs High Performancee
Perf Street 1.310" Springs 1.80" Inst Ht
Valve Springs, High Performance GM V6
Engine Valve Spring
