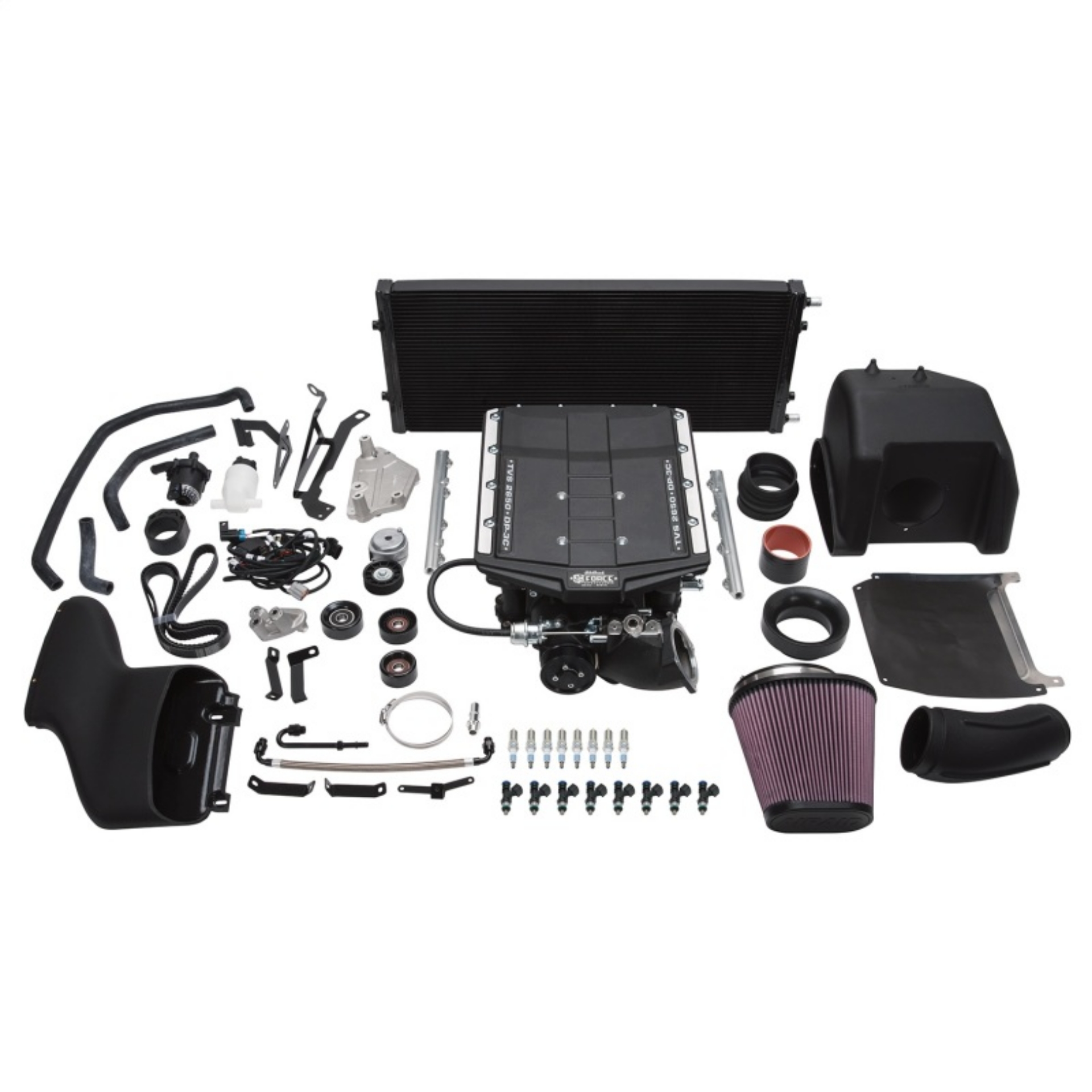

The Edelbrock supercharger Stage 1 Street System part #15570 for 2015-17 Ford F-150 increases the performance of your 5.0L 4V engine to 533 horsepower and 482 ft-lbs of torque at the rear wheels when used with Edelbrock tune (kit supplied without a programmer). The core of this system is the Eaton Gen VI 2650 TVS rotating assembly with a four-lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.
Now you can bolt-on an Edelbrock E-Force Supercharger system and boost the power in your Ford F-150, Expedition or Lincoln Navigator. The Ford F-150 Supercharger, Ford Expedition Supercharger & Lincoln Navigator Supercharger systems are specially designed for each application and will allow you to boost your performance up to an impressive 478 flywheel horsepower and 504 ft-lbs. of torque. These supercharger systems feature 14" long intake runners for maximum low end torque making them ideal for towing and off-road performance applications. * Supercharger systems without Tunes are not eligible for supplemental warranty. Supercharger systems sold without Tunes are only emissions legal when used with the correct Edelbrock tune, which can be downloaded on the supercharger tech support.
{ eo : 1in.; eo_carb_number : D-215-97in.; eo_carb_link : https:/ww3.arb.ca.gov/msprog/aftermkt/devices/eo/d-215-97.pdf }
{"eo":"1","eo_carb_number":"D-215-97","eo_carb_link":"https://ww3.arb.ca.gov/msprog/aftermkt/devices/eo/d-215-97.pdf"}
Edelbrock Stg 1 Supercharger #15570 For 15-17 Ford F-150 Coyote 5.0L 4V W/O Tune
Edelbrock; Ford; Truck; 5.0L; Supercharger; V8; 2650; F150; 15570; No Tuner
Edelbrock, Ford, Truck, 5.0L, Supercharger, V8, 2650, F150, 15570, No Tuner
Edelbrock SC 2015 Ford F-150 5.0L V8 Engines No Tuner
SC 2015 FORD FI50 5.0L V8 ENGINES NO TUNER
Ford:Modular Coyote 4V:302 (5.0L)
Nitrous Jet Kit 8 QTY .046.
Edelbrock Supercharger
SUPERCHARGER
SuperchrgrKt
