Designed for 1970-91 304-401 c.i.d. and 1967-69 290-390 c.i.d. V8's, RPM Air-Gaps incorporate the same race-winning technology as our Victor Series competition intakes. The air-gap design features an open air space that separates the runners from the hot engine oil for a cooler, denser charge and more power. For square-bore carbs. Includes standard oil fill and PCV provisions as well as early air conditioning support bracket accessory bosses. No provision for exhaust-heated chokes. No exhaust crossover. ** Carburetor Recommendations: Edelbrock Thunder Series AVS or Performer Series carb, 600-800 cfm Installation Notes: Recommended intake gasket: #7213 or Fel-Pro MS96011. #7531 must use factory style metal valley tray. #7531 has two center bolt holes offset. Manifold height: A-4.45", B-5.77"; Carb pad height: 5.11" . Port exit dimensions: 1.04" x 2.10". Bracket #8034 required for 1979 and later vehicles. Camshaft Recommendations: Performer RPM #7132.
28115, AMC, 304, 343, 360, 390, 401, Edelbrock, Intake Manifold, Intake, Manifold, Single-Plane, Victor Jr., Victor Jr, Race, engine swap, EFI, Satin
Edelbrock part #28115 Victor Jr. AMC intake manifold is designed for 1970-91 AMC 304-401 c.i.d. V8 engines in EFI applications.
Edelbrock Intake Manifold Designed for 1970-91 AMC 304-360-390-401 c.i.d. V8 engines in EFI applications.
2814; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Super Victor; Satin
Victor Jr. Intake Manifold #28115 For 1970-91 AMC 304-401 EFI V8, Satin
Victor Jr. Intake Manifold #28115 For 1970-91 AMC 304-401 EFI V8; Satin
AMC:Small-Block:304 (5.0L)/343 (5.6)/360 (5.9L)/390 (6.4)/401 (6.6L)

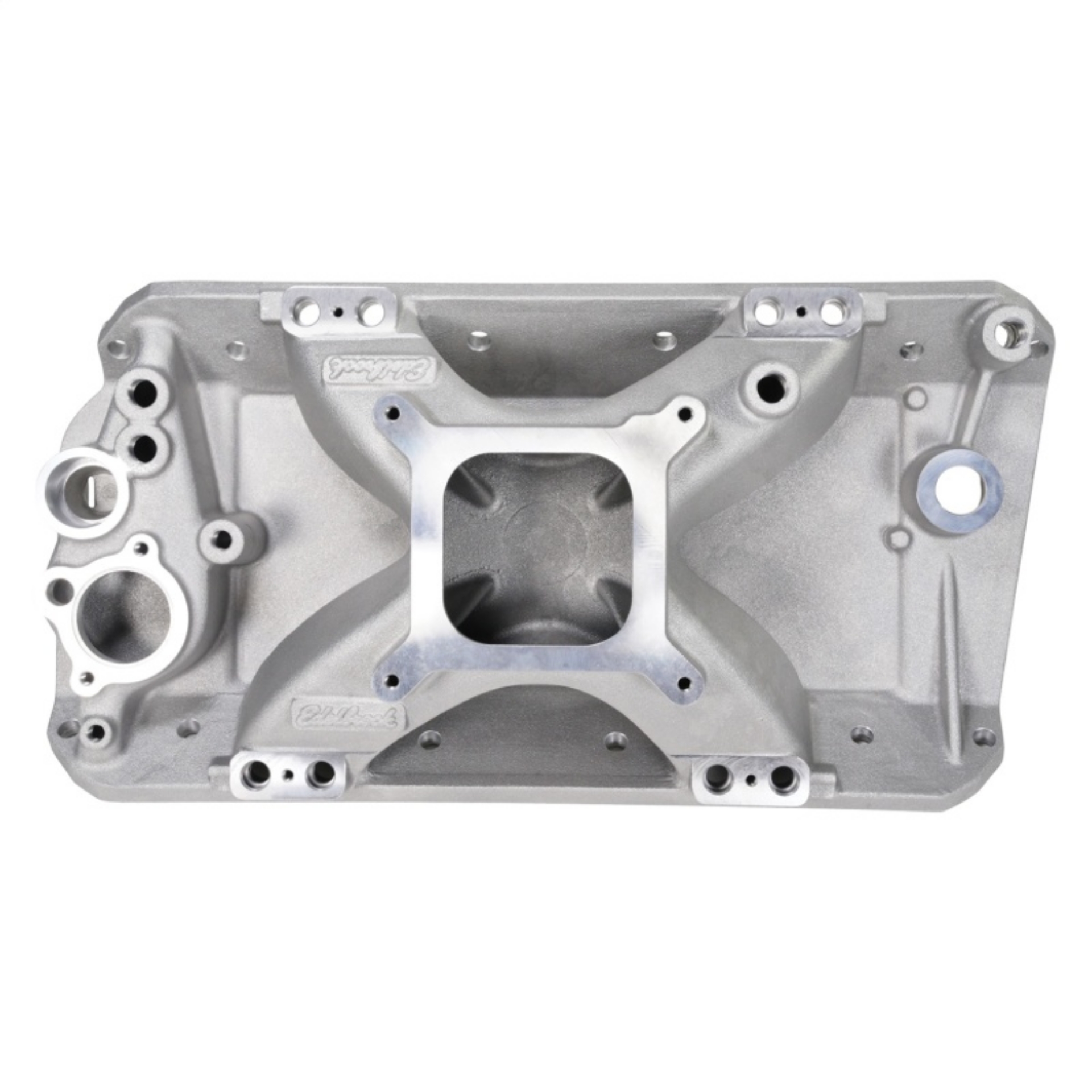

Edelbrock Victor Jr Manifold AMC 70-91 EFI (Race Manifold)
Victor Jr. AMC 1970-91 Manifold EFI
MANIFOLD AMC 1970-91 VICTOR JR EFI
Engine Intake Manifold
{"Sellable":"Yes"}
MANIFOLD RACE
MANIFOLD-RACE
Intake Mnfld
{ eo : 6in.}
{"eo":"6"}
