Cylinder Head Specifications: Combustion chamber volume:-?60cc / 70cc, Intake runner volume:-?210cc, Intake runner volume:-?210cc, Exhaust runner volume:-?75cc, Intake valve diameter:-?2.05in, Intake valve diameter:-?2.05in, Exhaust valve diameter:-?1.60in, Valve stem diameter:-?11/32in, Valve guides:-?Manganese bronze, Deck thickness:-?5/8in, Valve spring diameter:-?1.55, Valve spring maximum lift:-?.650in flat, .670in roller (A), Rocker stud:-?7/16in, Guideplate:-?Hardended steel, Pushrod diameter:-?5/16in, Valve angle:-?20, Exhaust port location:-?Raised .130in, Spark plug fitment:-?14mm x 3/4 reach, gasket seat. INSTALLATION NOTE: Check cam manufacturer's specs for compatibility with valve springs. Recommended valve sizes listed. Match with Edelbrock head gasket sets. Use Head Bolt Kits for easy installation. These heads require the use of a 14mm x 3/4in reach, flat gasket spark plug with a heat range appropriate to your application. Deck thickness: 5/8in, rocker stud diameter: 7/16in, pushrod diameter: 5/16in (width of slot in guide plate).
Cylinder Head Specifications: Combustion chamber volume: 60cc / 70cc; Intake runner volume: 210cc; Intake runner volume: 210cc; Exhaust runner volume: 75cc; Intake valve diameter: 2.05"; Intake valve diameter: 2.05"; Exhaust valve diameter: 1.60"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 5/8"; Valve spring diameter: 1.55; Valve spring maximum lift: .650" flat; .670" roller (A); Rocker stud: 7/16"; Guideplate: Hardended steel; Pushrod diameter: 5/16"; Valve angle: 20°; Exhaust port location: Raised .130"; Spark plug fitment: 14mm x 3/4 reach, gasket seat. INSTALLATION NOTE: Check cam manufacturer's specs for compatibility with valve springs. Recommended valve sizes listed. Match with Edelbrock head gasket sets. Use Head Bolt Kits for easy installation. These heads require the use of a 14mm x 3/4" reach, flat gasket spark plug with a heat range appropriate to your application. Deck thickness: 5/8", rocker stud diameter: 7/16", pushrod diameter: 5/16" (width of slot in guide plate).

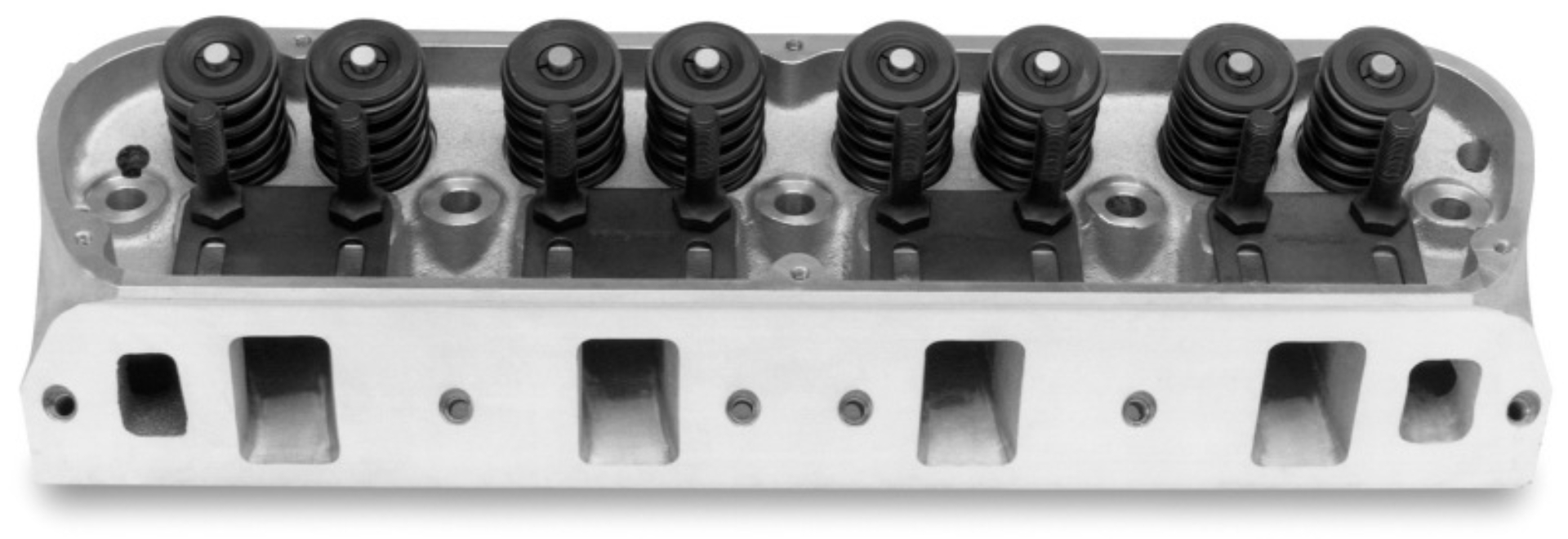

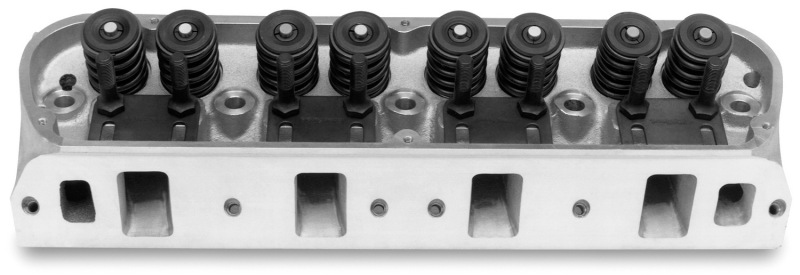

The Edelbrock 77169 Victor Jr. Small Block Ford cylinder head offers high horsepower potential on competition level engines and are compatible with OE valve train and pistons for bolt-on convenience.
Edelbrock; SBF; Head; Small Block; V8; Cylinder Heads; 77169; 8.2; 9.5; 9.2; Ford
Edelbrock, SBF, Head, Small Block, V8, Cylinder Heads, 77169, 8.2, 9.5, 9.2, Ford
Edelbrock Intake Manifold Bolt Set for AMC Edelbrock manifolds.
Edelbrock Single Victor Jr 289-351W Bare Head
Victor Jr Small-Block Ford Cylinder Head
Ford:Small-Block:289 (4.7L)-351W (5.8L)
Single Victor Jr 289-351W Bare Head
