Cylinder Head Specifications: Combustion chamber volume: 65cc / 70cc; Intake runner volume: 185cc & 195cc; Exhaust runner volume: 65cc; Intake valve diameter: 2.02"; Exhaust valve diameter: 1.60"; Valve stem diameter: 11/32"; Valve guides: Maganese Bronze; Deck thickness: 9/16"; Valve spring diameter: 1.46"; Valve spring maximum lift: .575"; Rocker stud: 3/8"; Guideplate: Hardened steel; Pushrod diameter: 5/16"; Valve angle: 23°; Exhaust port location: Stock; Spark plug fitment: 14mm x .750 reach, gasket seat. * Performer RPM Cylinder Heads have all of the same great features as our Performer series heads, but are available with straight or angled spark plug configuration to fit a variety of exhaust applications. Available with a polished finish for a show quality look! ** Match with Edelbrock head gasket sets. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. To use stock rockers on small-block Chevy heads, .100" longer than stock pushrods are required. Edelbrock pushrods #9629 are recommended. Use Head Bolt Kits for easy installation. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. S/B Chevy heads may not be used on engines with less than 4" bore (262, 265, 283, 305, 307 c.i.d.) except with cams having less than .450" valve lift.
Edelbrock E-Force Supercharger part #15133 Small Block Chevy Without Carbs Supercharger systems without tuners are not eligible for supplemental warranty.
Edelbrock; SBC; 64cc Hydraulic Flat Tappet Springs Camshaft; V8; Cylinder Heads; 60999
Edelbrock, SBC, 64cc Hydraulic Flat Tappet Springs Camshaft, V8, Cylinder Heads, 60999
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
RPM Small-Block Chevy Angled Spark Plug 64cc; Flat Tappet Springs
RPM Small-Block Chevy Angled Spark Plug 64cc, Flat Tappet Springs

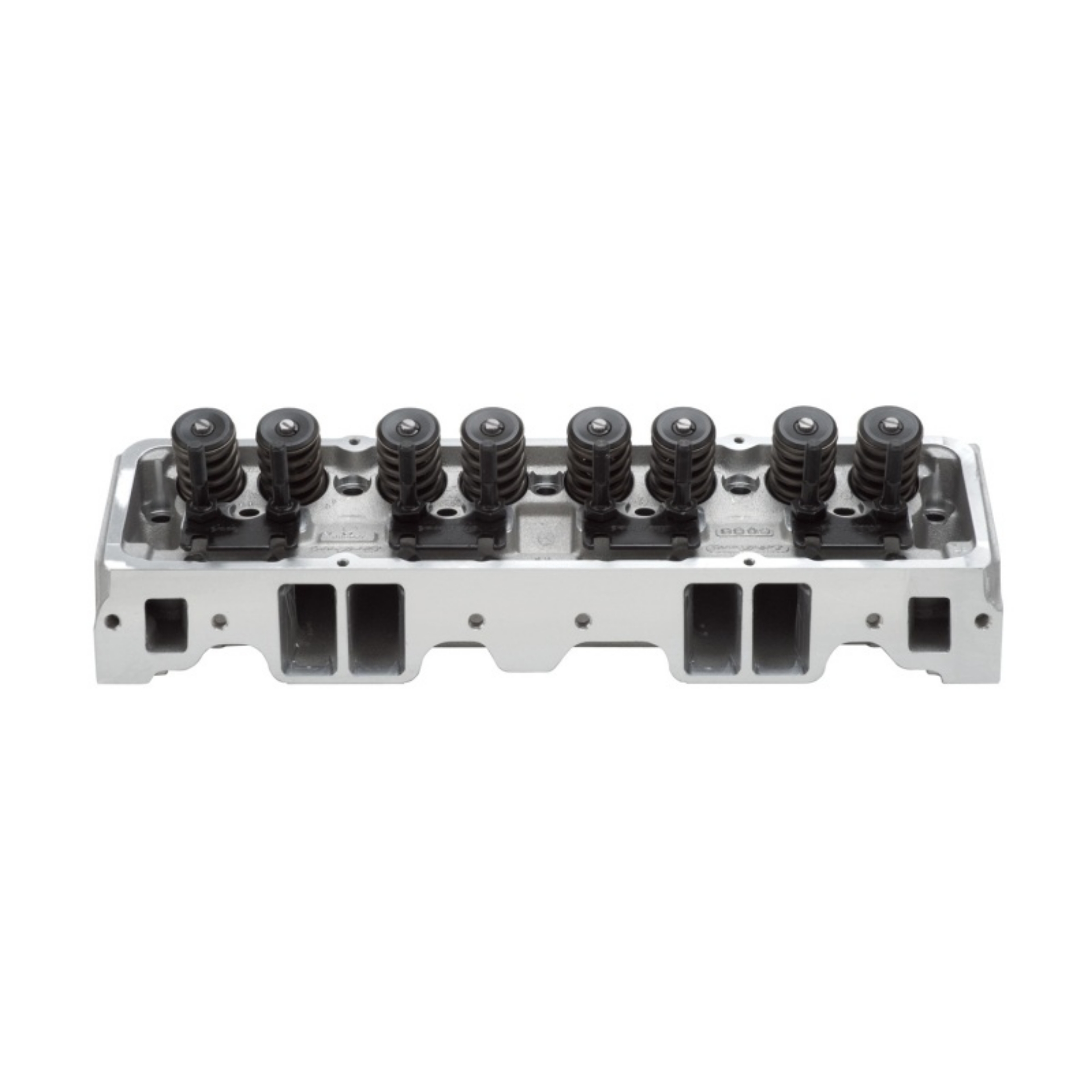

Edelbrock Single Perf. RPM SBC 64cc Angle Head Comp.
Edelbrock Single Perf RPM SBC 64cc Angle Head Comp
Single Perf. RPM SBC 64cc Angle Head Comp.
Edelbrock Cylinder Heads
Engine Cylinder Head
CYLINDER HEADS
CYLINDER HEAD
