Cylinder Head Specifications: Combustion chamber volume: 118cc; Intake runner volume: 315cc; Exhaust runner volume: 110cc; Intake valve diameter: 2.19"; Exhaust valve diameter: 1.88"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 9/16"; Valve spring diameter: 1.55"; Valve spring maximum lift: .700"; Rocker stud: 7/16"; Guideplate: Hardened steel; Pushrod diameter: 3/8"; Valve angle: 26°; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat. INSTALLATION NOTE: Bare heads will have valve guides & seats installed, but will require final sizing & a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. All Performer and Performer RPM Big-Block Chevy heads: Spark plug is closer to center of bore, will interfere with high-dome pistons for open chamber heads. Use pistons designed for our heads. Match with Edelbrock head gasket sets.
Edelbrock; BBC; Big Block Chevy;454; 396; 402; V8; Cylinder Heads; 60549; Bare; Rectangular
Edelbrock, BBC, Big Block Chevy,454, 396, 402, V8, Cylinder Heads, 60549, Bare, Rectangular
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)
RPM Big-Block Chevy Rectangle Port Cylinder Head Hydraulic Flat Tappet Cam

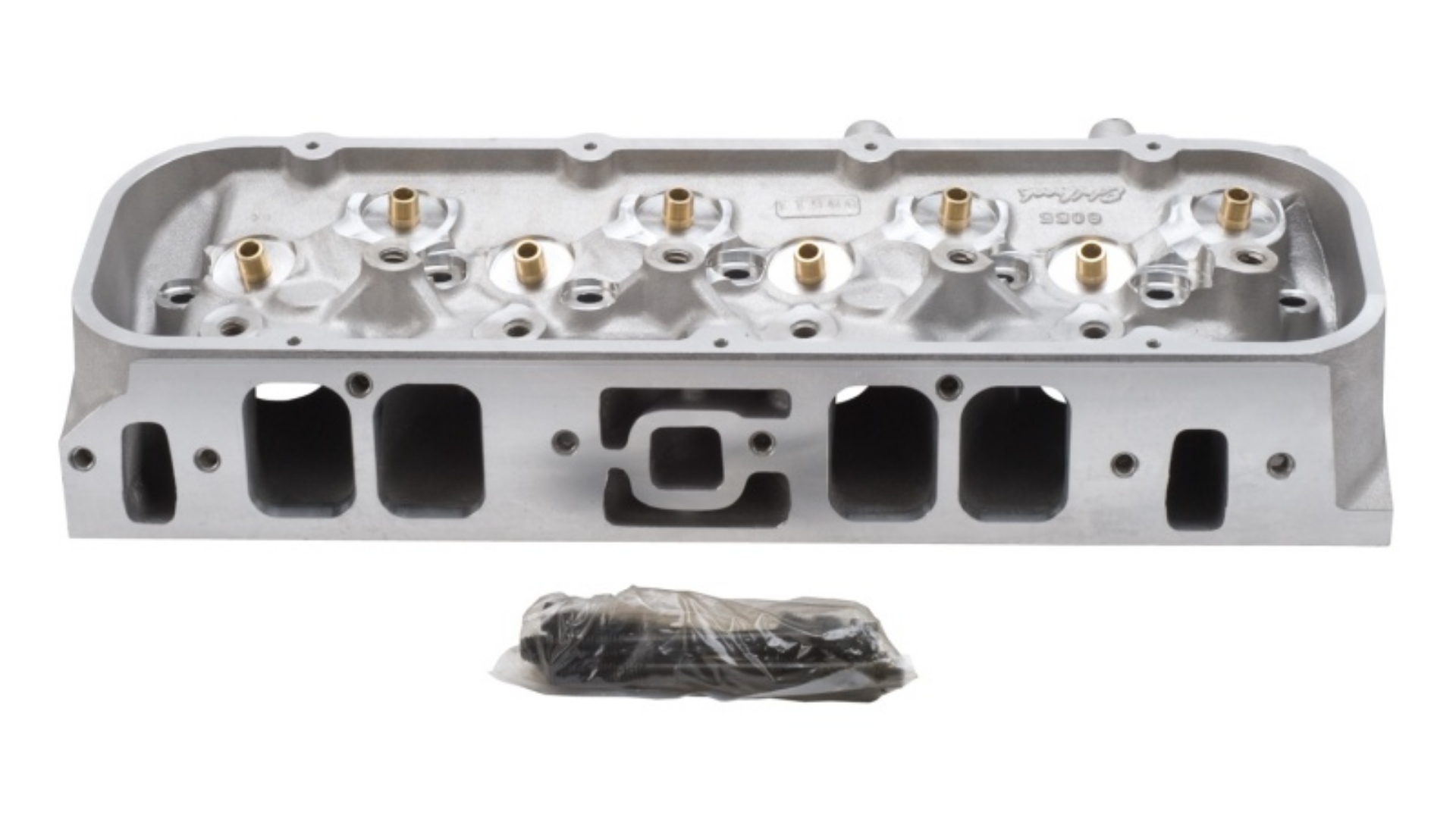

Edelbrock Single Perf. RPM BBC Rect Port Head Bare
Edelbrock Single Perf RPM BBC Rect Port Head Bare
