Cylinder Head Specifications: Combustion chamber volume:-?75cc, Intake runner, volume:-?310cc, Exhaust runner volume:-?100cc, Intake valve diameter:-?2.19in, Exhaust valve diameter:-?1.76in, Valve stem diameter:-?11/32in, Valve guides:-?Manganese bronze, Deck thickness:-?5/8in, Valve spring diameter:-?1.55in, Valve spring maximum lift:-?.700in, Rocker stud:-?7/16in, Guideplate:-?Hardended steel, Pushrod diameter:-?3/8in, Exhaust port location:-?Stock, Spark plug fitment:-?14mm x 3/4 reach, gasket seat. INSTALLATION NOTE: Match with Edelbrock head gasket sets. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4in reach with flat gasket seat. Deck thickness: 5/8in, rocker stud diameter: 7/16in, pushrod diameter: 3/8in (width of slot in guide plate). Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Deck thickness: 5/8in, rocker stud diameter: 7/16in, pushrod diameter: 3/8in (width of slot in guide plate).
Cylinder Head Specifications: Combustion chamber volume: 75cc; Intake runner; volume: 310cc; Exhaust runner volume: 100cc; Intake valve diameter: 2.19"; Exhaust valve diameter: 1.76"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 5/8"; Valve spring diameter: 1.55"; Valve spring maximum lift: .700"; Rocker stud: 7/16"; Guideplate: Hardended steel; Pushrod diameter: 3/8"; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat. INSTALLATION NOTE: Match with Edelbrock head gasket sets. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Deck thickness: 5/8", rocker stud diameter: 7/16", pushrod diameter: 3/8" (width of slot in guide plate). Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Deck thickness: 5/8", rocker stud diameter: 7/16", pushrod diameter: 3/8" (width of slot in guide plate).
Edelbrock Fuel Pressure Safety Switch #72213 can be used in conjunction with your nitrous systems to safeguard against inadequate fuel pressure. Preset at 30 psi.
Edelbrock; BBF; Head; 460; CJ; Cylinder Head; 75cc; Hydraulic Flat Tappet; Cam Made In The USA; V8; Cylinder Heads; 61649
Edelbrock, BBF, Head, 460, CJ, Cylinder Head, 75cc, Hydraulic Flat Tappet, Cam Made In The USA, V8, Cylinder Heads, 61649

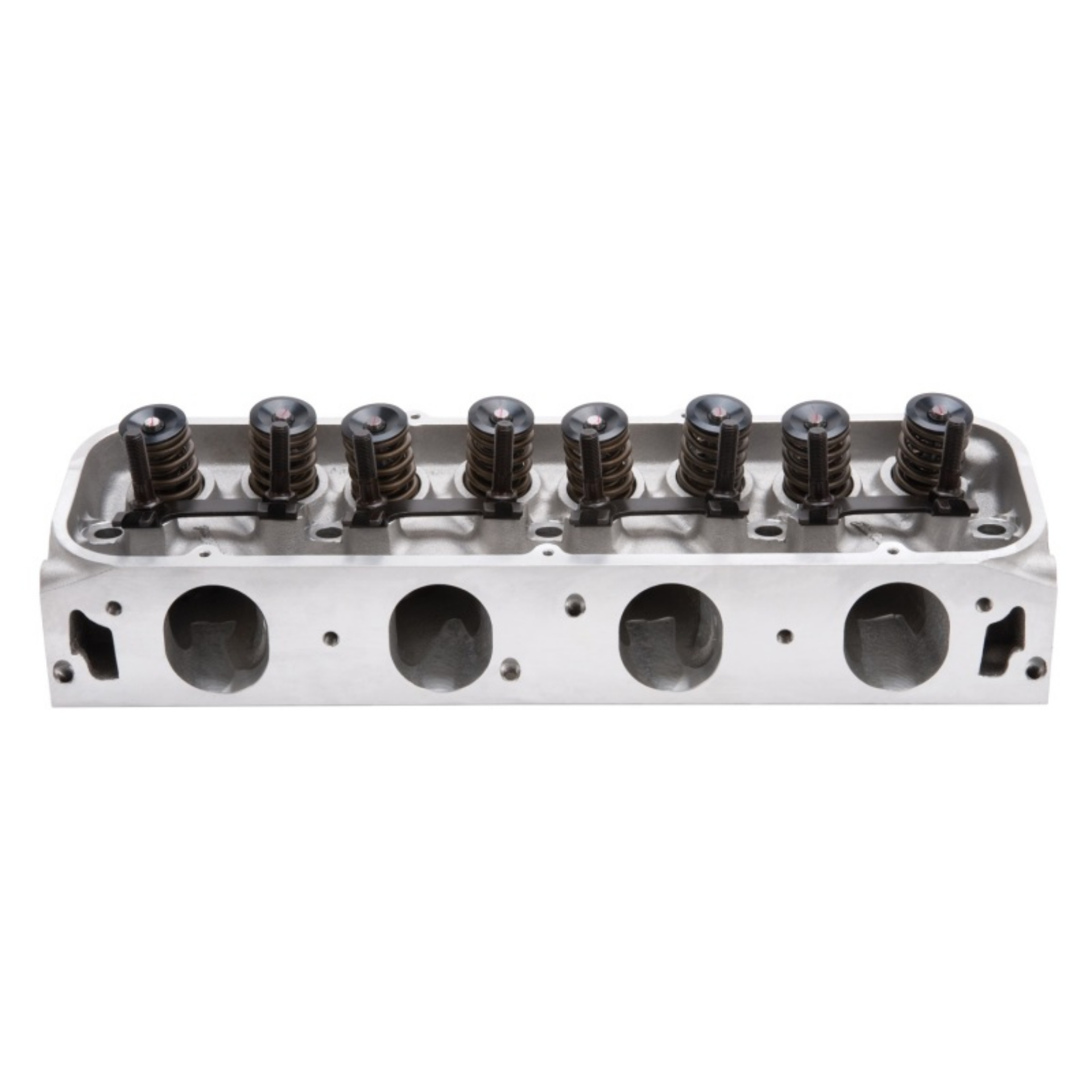

RPM Big-Block Ford 460 CJ Cylinder Head 75cc Hydraulic Flat Tappet Cam
Edelbrock Single Perf. RPM BB/Ford CJ 460 CNC Head Comp.
Edelbrock Single Perf RPM Bb/Ford Cj 460 CNC Head Comp
Single Perf. RPM BB/Ford CJ 460 CNC Head Comp.
Ford:Big-Block:429 (7.0L )/460 (7.5L)
