Cylinder Head Specifications: Combustion chamber volume: 75cc / 95cc; Intake runner volume: 292cc; Exhaust runner volume: 100cc ;Intake valve diameter: 2.19"; Exhaust valve diameter: 1.76"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 5/8"; Valve spring diameter: 1.55"; Valve spring maximum lift: .700"; Rocker stud: 7/16"; Guideplate: Hardended steel; Pushrod diameter: 3/8"; Valve angle: TBD; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat. * Performer RPM 460 heads accept factory exhaust, aftermarket headers and factory valvetrain components. Requires the use of 3/8" diameter pushrods. Match with Edelbrock head gasket sets. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Deck thickness: 5/8", rocker stud diameter: 7/16", pushrod diameter: 3/8" (width of slot in guide plate).
Edelbrock Classic Series Valve Cover for 348/409 W-Series Chevy. Edelbrock first made these aluminum valve covers in the late '50s and they're still a classic. Made of heavy-gauge sand-cast aluminum.
Edelbrock; BBF;460; 95cc; Hydraulic Roller Camshaft; V8; Cylinder Heads; 60669
Edelbrock, BBF,460, 95cc, Hydraulic Roller Camshaft, V8, Cylinder Heads, 60669
Performer Big-Block Ford 460 95cc Hydraulic Flat Tappet Camshaft

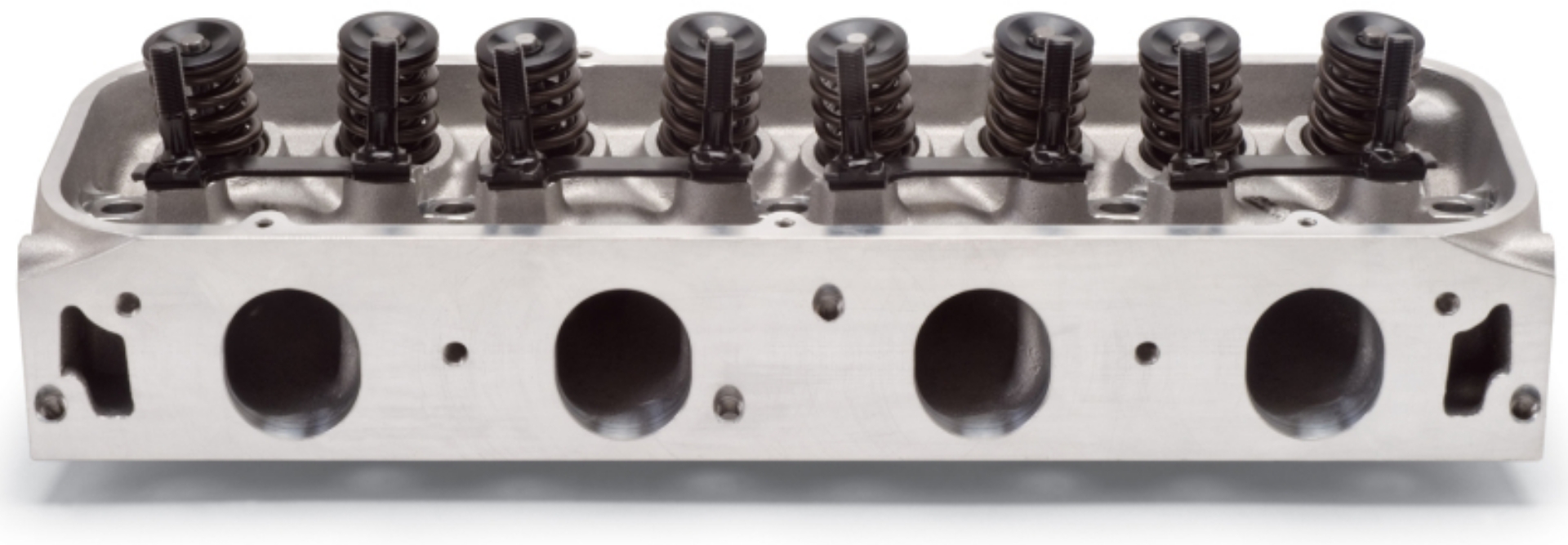

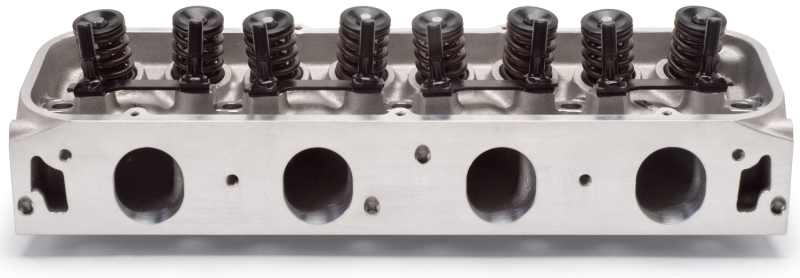

Edelbrock Single Perf. RPM 429/460 95cc Head Complete
Edelbrock Single Perf RPM 429/460 95cc Head Complete
Single Perf. RPM 429/460 95cc Head Complete
Ford:Big-Block:429 (7.0L )/460 (7.5L)
Edelbrock Cylinder Heads
Engine Cylinder Head
CYLINDER HEADS
CYLINDER HEAD
{ eo : 7in.}
{"eo":"7"}
Cyl. Head
