Cylinder Head Specifications: Combustion chamber volume: 100cc; Intake runner volume: 290cc; Exhaust runner volume: 110cc; Intake valve diameter: 2.19"; Exhaust valve diameter: 1.88"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 9/16"; Valve spring diameter: 1.55"; Valve spring maximum lift: .700"; Rocker stud: 7/16"; Guideplate: Hardened steel; Pushrod diameter: 3/8"; Valve angle: 26°; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat. * Match with Edelbrock head gasket sets. Bare heads will have valve guides and seats installed, but will require final sizing & a valve job to match the valves you will be using. Recommended spark plugs 14mm x 3/4" reach with flat gasket seat (Champion RC12YC).
Edelbrock carburetor Accelerator Pump Assembly with Viton cup for 1400, 1403, 1404, 1405, 1406 EPS Carbs as well as 1801, 1802, 1803, 1804, 1805, 1806, 1825 and 1826 Thunder Series AVS carbs.
{ eo : 1in.; eo_carb_number : D-215-94in.; eo_carb_link : https:/ww3.arb.ca.gov/msprog/aftermkt/devices/eo/d-215-94.pdf }
{"eo":"1","eo_carb_number":"D-215-94","eo_carb_link":"https://ww3.arb.ca.gov/msprog/aftermkt/devices/eo/d-215-94.pdf"}
Edelbrock; BBC; Big Block Chevy;454; 396; 402; V8; Cylinder Heads; 60499; Flat Tappet; TBI
Edelbrock, BBC, Big Block Chevy,454, 396, 402, V8, Cylinder Heads, 60499, Flat Tappet, TBI
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)
Performer Big-Block Chevy Oval Port Hydraulic Flat Tappet Cam

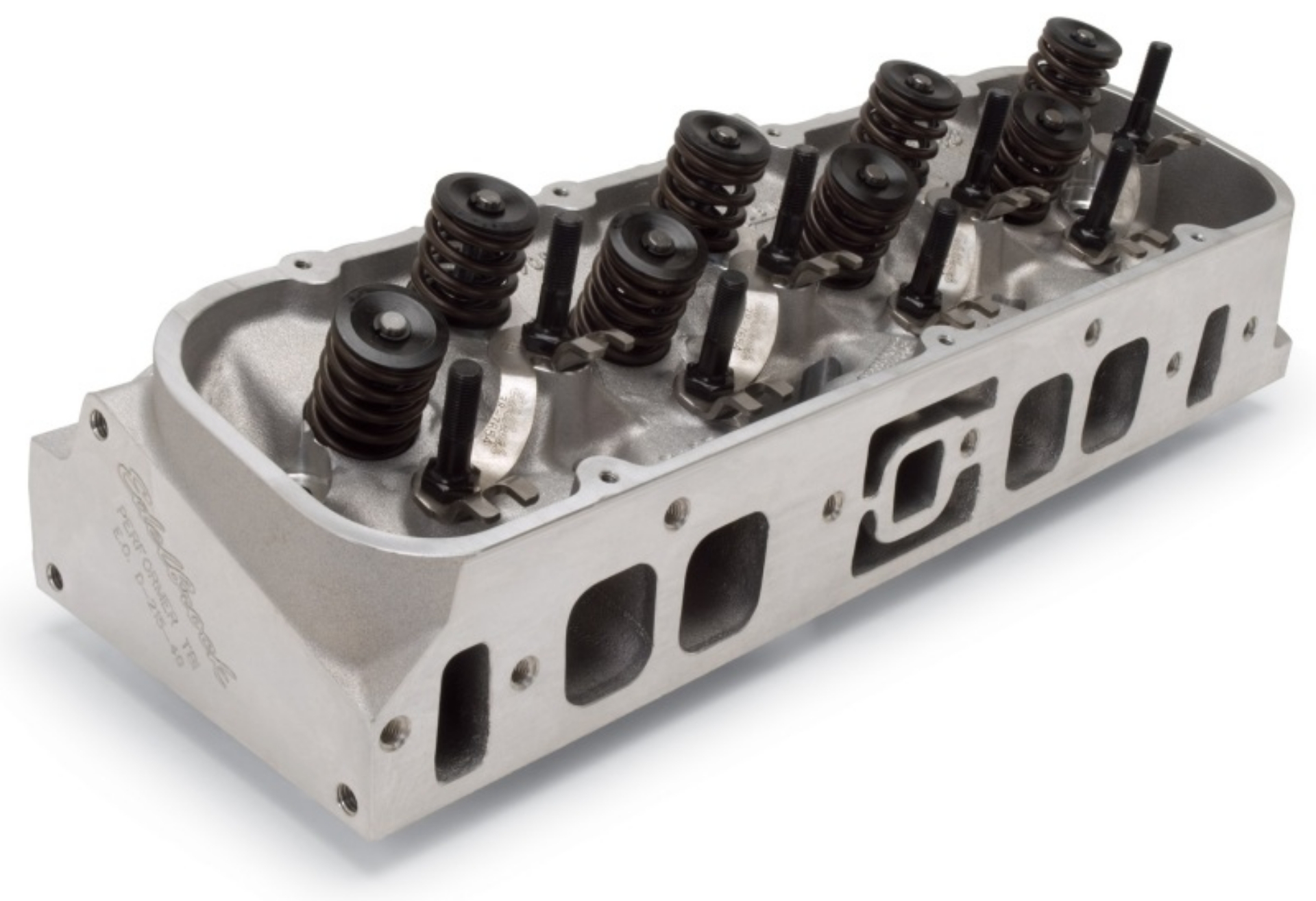

Edelbrock Single BBC Hi-Comp. 454-0 Head Comp.
Edelbrock Single BBC Hi-Comp 454-0 Head Comp
Single BBC Hi-Comp. 454-0 Head Comp.
