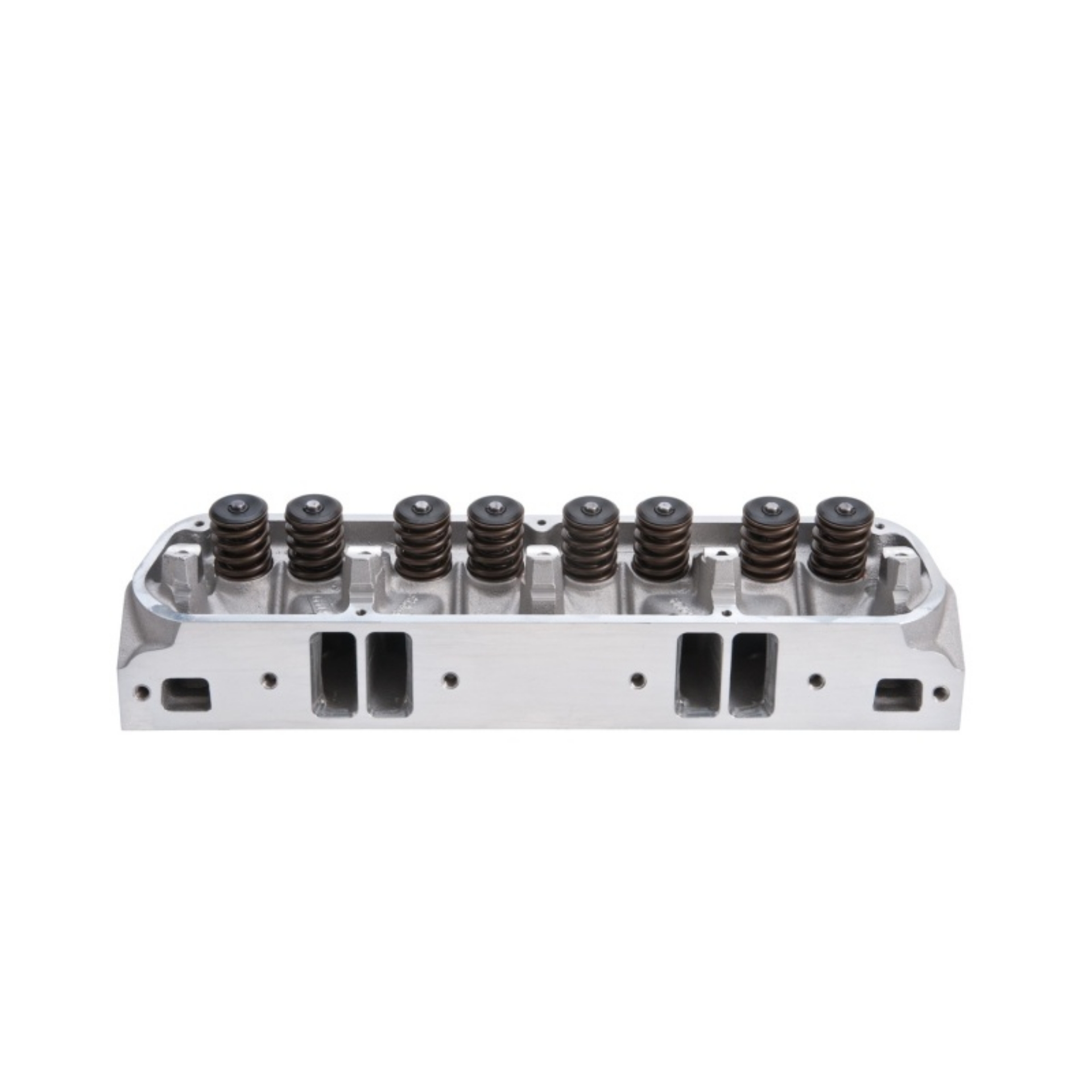

Cylinder Head Specifications: Combustion chamber volume: 63cc / 65cc; Intake runner volume: 171cc; Exhaust runner volume: 77cc; Intake valve diameter: 2.02"; Exhaust valve diameter: 1.60"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 5/8"; Valve spring diameter: 1.46"; Valve spring maximum lift: .575"; Rocker stud: N/A; Guideplate: N/A; Pushrod diameter: 5/16"; Valve angle: 18°; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat. * The special valvetrain in the 1970 340 T/A is not compatible with these cylinder heads. Match with Edelbrock head gasket sets. Bare heads will have valve guides & seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Deck thickness: 5/8", pushrod diameter: 5/16".
Edelbrock Competition Intake kits provide the increased airflow needed for racing applications. Include a high flow Mass airflow Sensor (on some applications), reusable open element filter, plastic shroud and all necessary hardware.
Edelbrock Cylinder Head; SB Chrysler; Performer RPM; For Hydraulic Roller Cam Complete (Ea
Edelbrock; Small Block Chrysler; 318; 340; 360; V8; Cylinder Heads; 60765; Roller Camshaft
Edelbrock, Small Block Chrysler, 318, 340, 360, V8, Cylinder Heads, 60765, Roller Camshaft
Edelbrock Cylinder Head SB Chrysler Performer RPM for Hydraulic Roller Cam Complete (Ea)
Cylinder Head; SB Chrysler; Performer RPM; For Hydraulic Roller Cam Complete (Ea)
Cylinder Head; SB Chrysler; Performer RPM; For Hydraulic Roller Cam Complete (Ea
Chrysler:Small-Block:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L)
RPM Small-Block Chrysler LA Cylinder Head Hydraulic Roller Cam
Edelbrock Cylinder Heads
Engine Cylinder Head
CYLINDER HEADS
CYLINDER HEAD
{ eo : 5in.}
{"eo":"5"}
Cyl. Head
