Cylinder Head Specifications: Combustion chamber volume: 63cc / 65cc; Intake runner volume: 171cc; Exhaust runner volume: 77cc; Intake valve diameter: 2.02"; Exhaust valve diameter: 1.60"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 5/8"; Valve spring diameter: 1.46"; Valve spring maximum lift: .575"; Rocker stud: N/A; Guideplate: N/A; Pushrod diameter: 5/16"; Valve angle: 18°; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat. * The special valvetrain in the 1970 340 T/A is not compatible with these cylinder heads. Match with Edelbrock head gasket sets. Bare heads will have valve guides & seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Deck thickness: 5/8", pushrod diameter: 5/16".

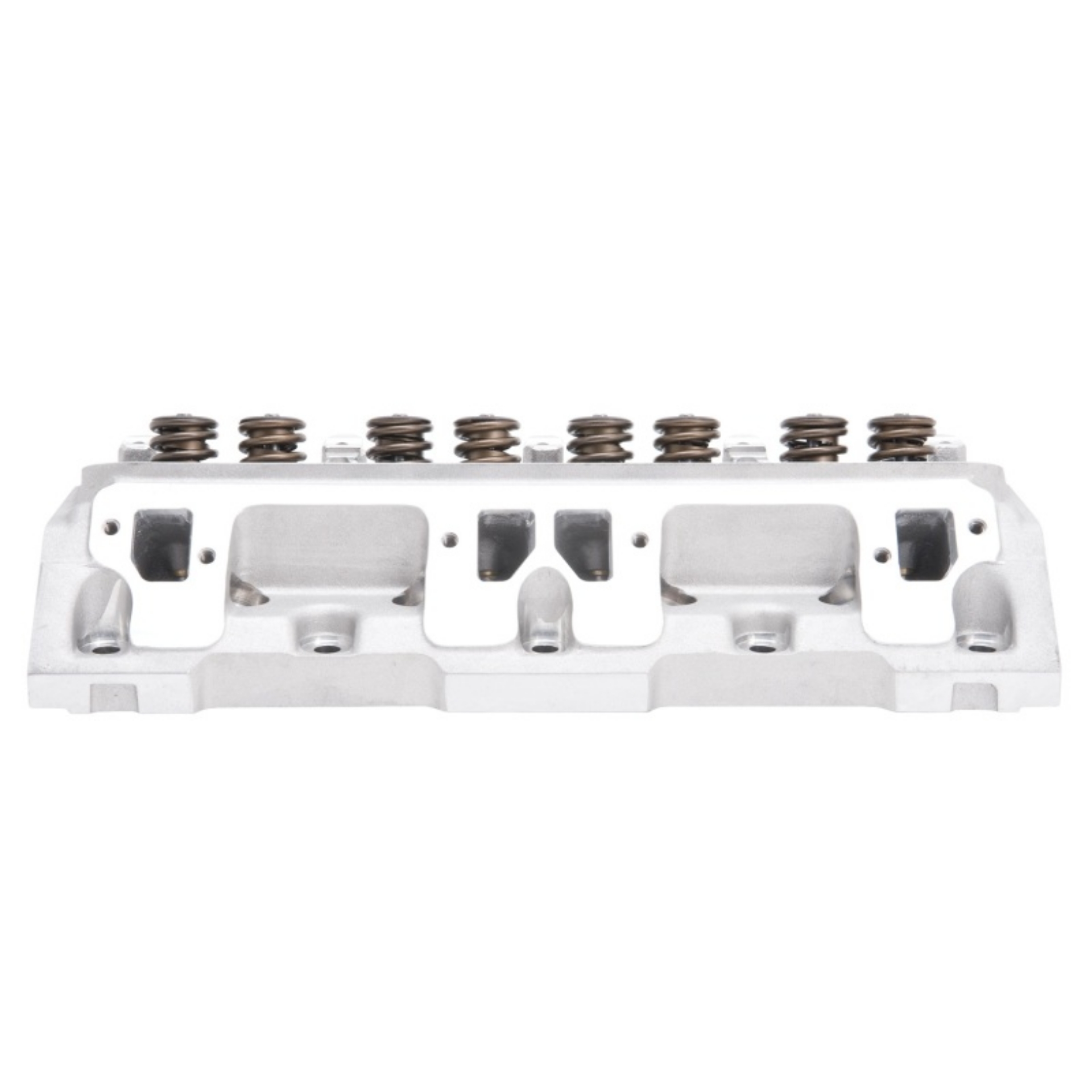

Edelbrock Cylinder Head; SB Chrysler; Performer RPM; 340; For Hydraulic Roller Cam
Edelbrock Cylinder Head SB Chrysler Performer RPM 340 for Hydraulic Roller Cam
Edelbrock; 340 Chrysler; Hydraulic Roller Cam; V8; Cylinder Heads; 60175;
Edelbrock, 340 Chrysler, Hydraulic Roller Cam, V8, Cylinder Heads, 60175,
Cylinder Head; SB Chrysler; Performer RPM; 340; For Hydraulic Roller Cam
Edelbrock BV3 Intake Manifold for Standard Deck Chevrolet Big-Block V8.
RPM Small-Block 340 Chrysler Cylinder Head for Hydraulic Roller Cam
Chrysler:Small-Block:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L)
